Problem 3 W-10.0k Select the smallest threaded rod that is acceptable for the braces in the frame. A36 steel Wind drift cannot exceed H/300. Consider only the brace deformation in your deflection calculation. Use 1/8 in. increments up to 1 in. and 1/4 in, above 1 in
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

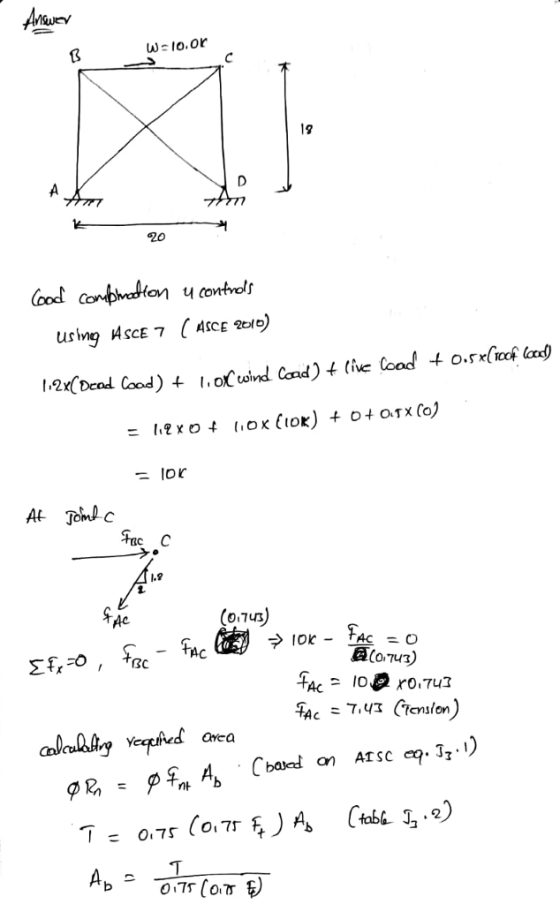

19 20 lor 1.9 arca

0 0
Add a comment
Know the answer?
Add Answer to:
Problem 3 W-10.0k Select the smallest threaded rod that is acceptable for the braces in the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Problem 4 Member A is a steel rod with circular cross-section. The modulus of elasticity is...

    Problem 4 Member A is a steel rod with circular cross-section. The modulus of elasticity is 29000 ksi. Member B is very stiff compared to Member A, so ignore its deformations. a. Set up the virtual force system for vertical displacements DEAD 20K LIVE 10 k at Node 2. Determine the minimum diameter of rod that can be used if the deflection due to live load cannot exceed 0.5 in Assume that rods are available in 1/8 in. increments, such...

  • Complefe the following: problem Parameters/notes Change the load: Dead -10 psf. Live - 30 psf hin...

    Complefe the following: problem Parameters/notes Change the load: Dead -10 psf. Live - 30 psf hint: first trace the load W to the ends of the rods, then draw a FBD of the beam and rod and solve for reactions at C and B. Use this info to find the force in the rod. Your answer should be the diameter of a round rod rounded to 1/8" increment). Change the load to 400,000 Ibs See Appendix table A3 for Steel...

  • Show all steps Problem 1: Select a W-shape beam for the following load scenario. Assume there...

    Show all steps Problem 1: Select a W-shape beam for the following load scenario. Assume there is bracing at the ends and at midspan. Use A992 steel. The deflection limit is given as L/360. (35 points) DL = 0.75 k/ft LL = 1.00 k/ft 15 ft 15 ft a. Using AISC LRFD, compute the factored design load, Mu, acting on the member. (ANS. b. What section would you select if you did not consider the moment gradient? (ANS. c. Account...

  • summarizr the followung info and write them in your own words and break them into different...

    summarizr the followung info and write them in your own words and break them into different key points.   6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...

  • summatize the following info and break them into differeng key points. write them in yojr own...

    summatize the following info and break them into differeng key points. write them in yojr own words   apartus 6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
