Homework Answers
for critical angle ( C ) incident in dener
medium
the angle of refraction = 90 in rarer medium
from snell's law
nfiber*sinC = nwater*sinr
1.88*sinC = 1.31*sin90
C = 44.17 degrees <<<------------ANSWER
Add Answer to:

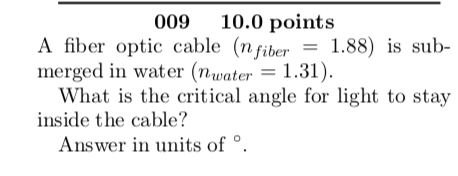

A fiber opticoable10ypoint 1.88) ?s sub- A fiber optic cable (7n fiber 188 is sub- merged...
A fiber optic cable is submerged underwater. What is the critical angle of total internal reflection...
A fiber optic cable is submerged underwater. What is the critical angle of total internal reflection if the index of refraction of the cable and water is n cable=2.15 and n water=1.33? options in degrees: 15.12, 42.79, 38.21, 61.33
Question 1 Select the correct statement(s) regarding fiber optic cable. a. The core and cladding within...
Question 1 Select the correct statement(s) regarding fiber optic cable. a. The core and cladding within a fiber optic cable must have the same refractive index in order to achieve TIR (Total Internal Reflection) b. Only single mode fiber (SMF) can be constructed with either a “step” or “graded index” core c. Mulimode optical fibers (MMF) are vulnerable to modal dispersion d. All statements are correct Question 2 Using a direct sequence spread spectrum (DSSS) technique spreads a narrow band channel...
6. A beam of light in air is incident at an angle of 30° to the...
6. A beam of light in air is incident at an angle of 30° to the surface of a rectangular block of clear plastic (n = 1.46 ). The light beam first passes through the block and re-emerges from the opposite side into the air at what angle to that surface? a. 42° b. 23° c. 30° d. 59° 7 According to the photon energy formula, tripling the frequency of the radiation from a monochromatic source will change the energy...
5. A ray of light strikes a thick sheet of glass (n = 1.5 ) at...
5. A ray of light strikes a thick sheet of glass (n = 1.5 ) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b. 46° c. 39° d. 25° A beam of light in air is incident at an angle of 30° to the surface of a rectangular block of clear plastic (n = 1.46). The light beam first passes through the...
11. A ray of light strikes a thick sheet of glass (n-1.5) at an angle of...
11. A ray of light strikes a thick sheet of glass (n-1.5) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b.46 c.39 d. 25 12. A fiber optic cable (n- 1.s0o) is submerged in water (- 1.33). What is the critical angle for light to stay inside the cable? 2. 83.1 b.62.5 С. 41.8 d. 27.6 13. An object placed 12 cm...
An optic fiber is made of clear plastic with index of refraction of 1.72. For what...
An optic fiber is made of clear plastic with index of refraction of 1.72. For what angle of incidence will light remain within the plastic guide"? A conducting rod whose length is 15 cm is placed on U-shaped metal wire that has a resistance R of 7 ohm as shown in figure 23-9. the wire and the rod are in the plane of the paper. A constant magnetic fields of strength 0.2 T is applied perpendicular and into the paper....
please answer asap and use Nair=1 Nwater=1.333 and c=3x10^8 m/s 4) Fig. 4 A light ray...
please answer asap and use Nair=1 Nwater=1.333 and c=3x10^8
m/s
4) Fig. 4 A light ray in water of wavelength 529nm is incident on flat, rectangular piece of transparent plastic (n 1.49) that is floating on a pool of water (n= 1.333). The ray from the water strikes the bottom of the plastic at an angle of 40.0° from the normal line. What happens to the ray when it hits the top edge of the plastic? (give all numeric quantities)...
Partner: Date Name 11 Snell's Law Introduction When light passes from one material to another it ...
Partner: Date Name 11 Snell's Law Introduction When light passes from one material to another it is always bent away from its original path. This process is known as refraction and the change in direction depends on the change in optical density (or refractive index) of the two materials. A larger change in refractive index results in a larger change in angle between incoming and outgoing light beams. A light beam bends closer to the normal in the material with...
The Assignment`s Learning Outcomes: In the second assignment for the Quality Management course, the students are...
The Assignment`s Learning Outcomes: In the second assignment for the Quality Management course, the students are required to read the “ Nestlé Waters Unifying real-time visibility across 26 factories” case study, and answer the related questions, upon successful completion of the assignment the student should be able to: Implement business-integrated quality systems through process control. Use quality improvement tools and practices for continuous improvement. Develop strategies for organizational change and transformation. Case Study - PDF Attached Assignment Regulations: This assignment...
Hi, please help me with my homework and please do not answer if you intend to...
Hi, please help me with my homework and please do not answer
if you intend to answers all the questions. Thank you
The Central Nervous System, endocrine system B. Figure 1 Use the diagram above to answer the following question 1) Which letter indicates the primary visual cortex, which receives information from neurons in the retina of the eye? A) A B) B C) C D) D E) E Figure 2 Use the diagram above to answer the following questions....
6. A beam of light in air is incident at an angle of 30° to the surface of a rectangular block of clear plastic (n = 1.46 ). The light beam first passes through the block and re-emerges from the opposite side into the air at what angle to that surface? a. 42° b. 23° c. 30° d. 59° 7 According to the photon energy formula, tripling the frequency of the radiation from a monochromatic source will change the energy...
5. A ray of light strikes a thick sheet of glass (n = 1.5 ) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b. 46° c. 39° d. 25° A beam of light in air is incident at an angle of 30° to the surface of a rectangular block of clear plastic (n = 1.46). The light beam first passes through the...
11. A ray of light strikes a thick sheet of glass (n-1.5) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b.46 c.39 d. 25 12. A fiber optic cable (n- 1.s0o) is submerged in water (- 1.33). What is the critical angle for light to stay inside the cable? 2. 83.1 b.62.5 С. 41.8 d. 27.6 13. An object placed 12 cm...
An optic fiber is made of clear plastic with index of refraction of 1.72. For what angle of incidence will light remain within the plastic guide"? A conducting rod whose length is 15 cm is placed on U-shaped metal wire that has a resistance R of 7 ohm as shown in figure 23-9. the wire and the rod are in the plane of the paper. A constant magnetic fields of strength 0.2 T is applied perpendicular and into the paper....
please answer asap and use Nair=1 Nwater=1.333 and c=3x10^8
m/s
4) Fig. 4 A light ray in water of wavelength 529nm is incident on flat, rectangular piece of transparent plastic (n 1.49) that is floating on a pool of water (n= 1.333). The ray from the water strikes the bottom of the plastic at an angle of 40.0° from the normal line. What happens to the ray when it hits the top edge of the plastic? (give all numeric quantities)...
Partner: Date Name 11 Snell's Law Introduction When light passes from one material to another it is always bent away from its original path. This process is known as refraction and the change in direction depends on the change in optical density (or refractive index) of the two materials. A larger change in refractive index results in a larger change in angle between incoming and outgoing light beams. A light beam bends closer to the normal in the material with...
Hi, please help me with my homework and please do not answer
if you intend to answers all the questions. Thank you
The Central Nervous System, endocrine system B. Figure 1 Use the diagram above to answer the following question 1) Which letter indicates the primary visual cortex, which receives information from neurons in the retina of the eye? A) A B) B C) C D) D E) E Figure 2 Use the diagram above to answer the following questions....
