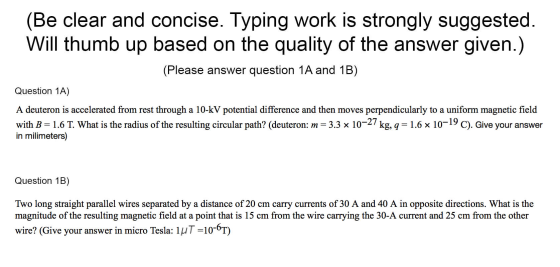

A deuteron is accelerated from rest through a 10-kV potential difference and then moves perpendicularly to...

Question

Question

A deuteron is accelerated from rest through a 10-k

science physics

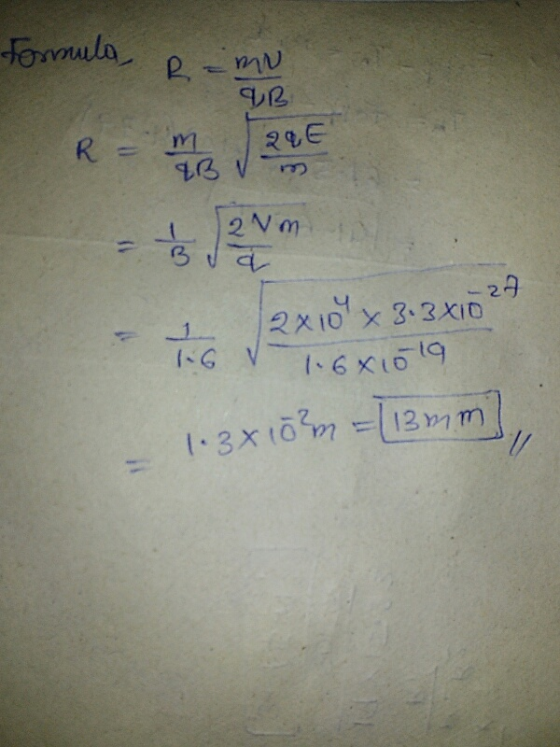

Answer 1

Answer #1

ue 3 니 小6X1019 12 w

Answer 2

Similar Homework Help Questions

If an electron is accelerated from rest through a potential difference of 12.0 kV, what is...

If an electron is accelerated from rest through a potential difference of 12.0 kV, what is its resulting speed? (e = 1.60 × 10-19 C, k = 1/4πε0 = 8.99 × 109 N ∙ m2/C2, mel = 9.11 x 10-31 kg). (Give your answer to the nearest km/s).
An electron in a cathode-ray tube is accelerated through a potential difference of 10 kV

An electron in a cathode-ray tube is accelerated through a potential difference of 10 kV, then passes through the d =1.5-cm-wide region of uniform magnetic field in the figure(Figure 1). Part A What field strength will deflect the electron by 9 = 11 °?
An electron in a cathode-ray tube is accelerated through a potential difference of 10 kV, then...

An electron in a cathode-ray tube is accelerated through a potential difference of 10 kV, then passes through the d = 1.8 cm wide region of uniform magnetic field in the figure. x x x x x x x x x OV 10 kV What field strength will deflect the electron by = 11 degrees? Express your answer in mT. B= Preview mT

A beam of electrons is accelerated through a potential difference of 10 kV before entering a...

A beam of electrons is accelerated through a potential difference of 10 kV before entering a region having uniform electric and magnetic fields that are perpendicular to each other and perpendicular to the direction in which the electron is moving. If the magnetic field in this region has a value of 0.010 T, what magnitude of the electric field is required if the particles are to be undeflected as they pass through the region?
(c) A proton is accelerated from rest through a potential difference of 10 kV. A proton...

(c) A proton is accelerated from rest through a potential difference of 10 kV. A proton has chargeqproton = +1.6  10-19 C and mass mproton = +1.67  10-27 C i. Calculate the change in potential energy of the proton, in your answer you must explicitly state whether it is a gain or loss in potential energy. ii. Calculate the final velocity of the proton.
Х x x x B ХХХХ xxx xxxx A proton is accelerated from rest through a...

Х x x x B ХХХХ xxx xxxx A proton is accelerated from rest through a 20-kV potential difference and then moves perpendicularly to a uniform magnetic field with B = 1.7 T. What is the radius of the resulting circular path? (proton: m= 1.67 x 10:27 kg q = 1.6x 10-19с) 08.0 mm 09.0 mm o12 mm o15 mm 017 mm

A proton (m= 1.67e-27 kg) is accelerated from rest through a potential difference of 11.5 kV...

A proton (m= 1.67e-27 kg) is accelerated from rest through a potential difference of 11.5 kV before entering a velocity selector. If the B- field of the velocity selector is perpendicular to the velocity and the electric field (E) has a magnitude of 3.5e6 N/C, what is the required magnitude of the magnetic field (B) if the proton is undeflected?
An electron is accelerated from rest through a potential difference of 2600 V and then enters...

An electron is accelerated from rest through a potential difference of 2600 V and then enters a region where there is a uniform 1.40-T magnetic field. a) What is the magnitude of the magnetic force on the electron if it is moving in the direction of the magnetic field? b) What is the magnitude of the magnetic force on the electron if it is moving opposite to the direction of the magnetic field? c) What is the magnitude of the...
A beam of electrons is accelerated through a potential difference of 12.0 kV before entering a...

A beam of electrons is accelerated through a potential difference of 12.0 kV before entering a velocity selector. If the B-field of the velocity selector is perpendicular to the velocity and has a value of 0.02 T, what value of the E-field is required (in the magnetic field region) if the particles are to be undeflected? It's not 1.949*10^6.

A beam of protons is accelerated through a potential difference of 0.750 kV and then enters...

A beam of protons is accelerated through a potential difference of 0.750 kV and then enters a uniform magnetic field traveling perpendicular to the field. Part A: What magnitude of field is needed to bend these protons in a circular arc of diameter 1.76 m ? B = ____ T Part B: What magnetic field would be needed to produce a path with the same diameter if the particles were electrons having the same speed as the protons? B' =...
