Thermodynamics.

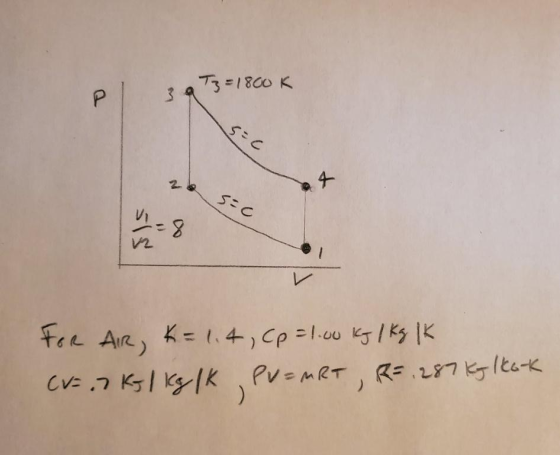

The Otto cycle shown has a compression ration of 8 and the following properties:
Inlet Pressure = 100 kPa, Inlet Temp = 350 K, Max Temp = 1800 C, Max Volume during inlet = 5x10-4 m3
a) What is the efficiency of the Cycle?
b) What is the temperature at state 2 (K) ?
c) What is the pressure at state 2 (kPA) ?
d) What is the clearance volume (m3) ?
Use attached figures and tables.

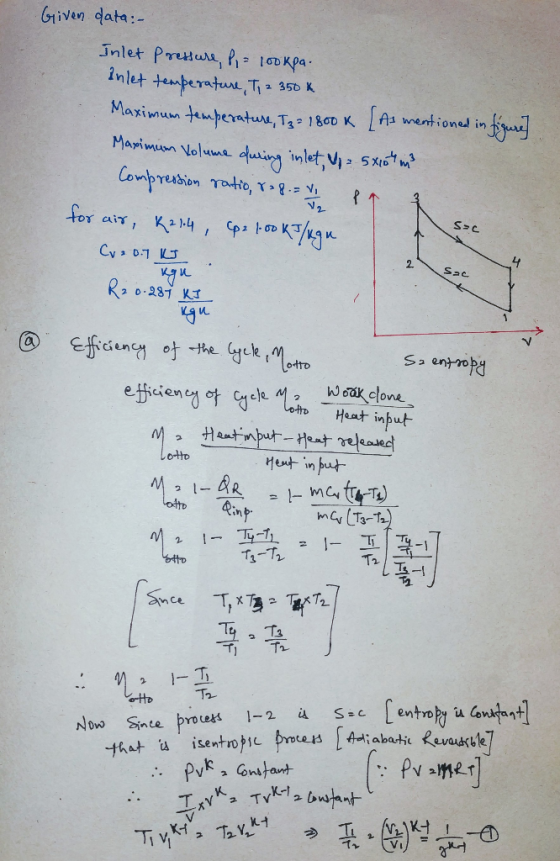

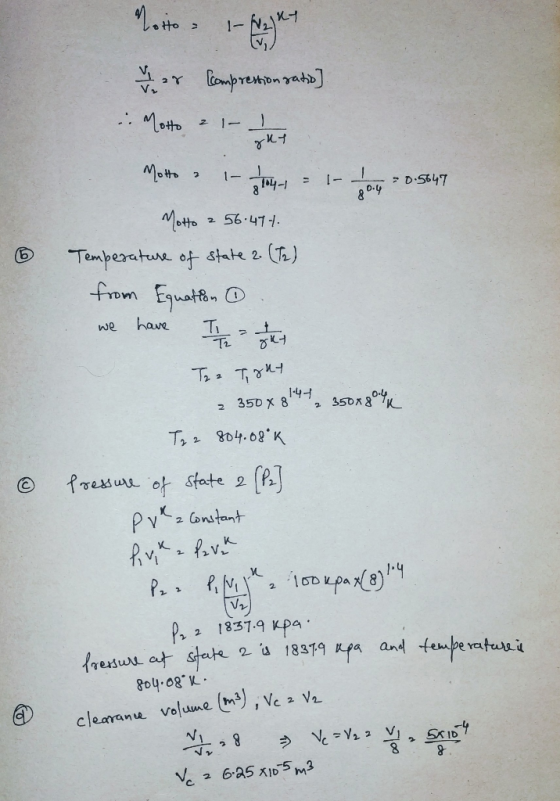

Homework Answers
