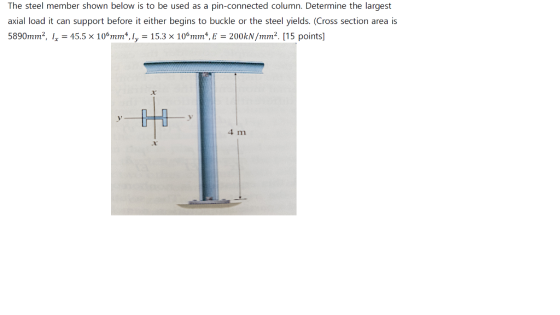

![The steel member shown below is to be used as a pin-connected column. Determine the largest axial load it can support before it either begins to buckle or the steel yields. (Cross section area is 5890mm2, 1,-45.5 x 10mm, 1,-15.3 x 10%nm,E-200kN/mrn2. [15 points] 4 m](http://img.homeworklib.com/questions/aea11680-d0eb-11ea-9eb3-3d7016de0880.png?x-oss-process=image/resize,w_560)

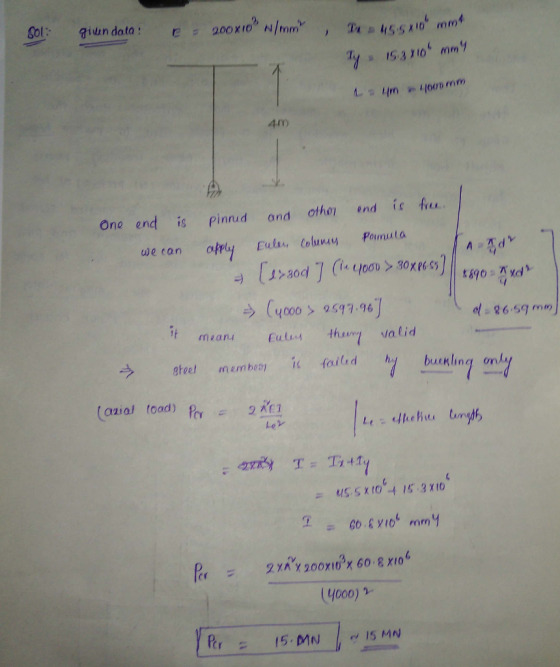

Homework Answers
Add Answer to:
The steel member shown below is to be used as a pin-connected column. Determine the largest...
1) The A 36 steel W 8x31 vertical member shown in Figure 1 is used as a pin connected column at both ends. Let the cross-section area A 9.13 in2, 110 in, I 37.1 in, E -29E6 psi and o, 36,000 psi. Det...
1) The A 36 steel W 8x31 vertical member shown in Figure 1 is used as a pin connected column at both ends. Let the cross-section area A 9.13 in2, 110 in, I 37.1 in, E -29E6 psi and o, 36,000 psi. Determine the following (10 points): 12 ft Figure 1 a) The critical load, Pc, with respect to buckling. b) The critical stress, ac, with respect to buckling Determine if this column will fail first due to yielding or...
a. A W12x14 A36 steel section is used as a column. If the column is 15...
a. A W12x14 A36 steel section is used as a column. If the column is 15 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly… Group of answer choices 783 kips 21 kips 150 kips 241 kips b. A W12x14 A36 steel section is used as a column. If the column is 5 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly…...
Question 21 A W12x14 A36 steel section is used as a column. If the column is...
Question 21 A W12x14 A36 steel section is used as a column. If the column is 15 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly... 0 783 kips O 150 kips 0 241 kips O 21 kips Question 22 AW12x14 A36 steel section is used as a column. If the column is 5 ft long with pin supports at each end, then the largest permissible compressive axial load is most...
A column has a cross section shown below. The column has a lenght of 14ft ant irs pinned at the top and fixed at the bo...
A column has a cross section shown below. The column has a
lenght of 14ft ant irs pinned at the top and fixed at the bottom.
The column is made of a material with a modules of elasticity of
46x10^3 k/in^2. Determine the largest axial load it can support
before the column begins to buckle. Present your answer in kips
(k).
A column has a cross sect on Shown belov Th colt mn has a le nat h ofl4ft and...
Solve the steel question - within 10 minutes A pin connected W10 x 94 beam-column with...
Solve the steel question - within 10 minutes
A pin connected W10 x 94 beam-column with unbraced length of 17 ft member is subjected to total axial load P = 134 kip and maximum bending moment Mrx = 72.25 ft- kip. The value of AISC equ.(H1-1a) using ASD method is Select one: O a. 0.996 O b. 0.922 c. 0.876 O d. 0.891
Solve the steel question - within 10 minutes A pin connected W10 x 94 beam-column with...
Solve the steel question - within 10 minutes
A pin connected W10 x 94 beam-column with unbraced length of 17 ft member is subjected to total axial load P = 134 kip and maximum bending moment Mrx = 72.25 ft- kip. The value of AISC equ. (H1-1a) using ASD method is Select one: O a. 0.876 O b. 0.922 O c. 0.891 O d. 0.996
AW12x14 A36 steel section is used as a column. If the column is 15 ft long...
AW12x14 A36 steel section is used as a column. If the column is 15 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly... O 783 kips O 21 kips 0 241 kips O 150 kips
Ideal Column with Pin Supports Learning Goal: To use the formula for the critical load, i.e.,...
Ideal Column with Pin Supports Learning Goal: To use the formula for the critical load, i.e., the Euler buckling load, for pin-supported columns to calculate various parameters of columns. Ideally, a column that is perfectly straight and has an axial load applied exactly at the centroid of its cross section will not yield until the internal normal stress reaches the yield stress of the material. Real-world columns, however, are subject to small asymmetries, whether due to irregularities of shape or...
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long...
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long bars. Bar (1) is steel [E=200 GPa] with a cross-sectional area of A1 = 510 mm2. Bar (2) is an aluminium alloy [E-70 GPa] with a cross-sectional area of A2 1,300 mm2. All bars are unstressed before the load P is applied. If a concentrated load of P 200 kN acts on the structure at D determine: (a) the normal stresses in both bars...
Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C...
Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C as shown in Figure Q1. Member (1) is a 20 mm wide by 9 mm thick rectangular bar made of Steel Alloys (A992). The total strain in bar (1) is measured as 925 ue (925x10°). The pin at C has an ultimate shear strength of ty = 345MPa. Determine: (a) The axial force in member (1). [9 marks] (b) The factor of safety in...
1) The A 36 steel W 8x31 vertical member shown in Figure 1 is used as a pin connected column at both ends. Let the cross-section area A 9.13 in2, 110 in, I 37.1 in, E -29E6 psi and o, 36,000 psi. Determine the following (10 points): 12 ft Figure 1 a) The critical load, Pc, with respect to buckling. b) The critical stress, ac, with respect to buckling Determine if this column will fail first due to yielding or...
Question 21 A W12x14 A36 steel section is used as a column. If the column is 15 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly... 0 783 kips O 150 kips 0 241 kips O 21 kips Question 22 AW12x14 A36 steel section is used as a column. If the column is 5 ft long with pin supports at each end, then the largest permissible compressive axial load is most...
A column has a cross section shown below. The column has a
lenght of 14ft ant irs pinned at the top and fixed at the bottom.
The column is made of a material with a modules of elasticity of
46x10^3 k/in^2. Determine the largest axial load it can support
before the column begins to buckle. Present your answer in kips
(k).
A column has a cross sect on Shown belov Th colt mn has a le nat h ofl4ft and...
Solve the steel question - within 10 minutes
A pin connected W10 x 94 beam-column with unbraced length of 17 ft member is subjected to total axial load P = 134 kip and maximum bending moment Mrx = 72.25 ft- kip. The value of AISC equ.(H1-1a) using ASD method is Select one: O a. 0.996 O b. 0.922 c. 0.876 O d. 0.891
Solve the steel question - within 10 minutes
A pin connected W10 x 94 beam-column with unbraced length of 17 ft member is subjected to total axial load P = 134 kip and maximum bending moment Mrx = 72.25 ft- kip. The value of AISC equ. (H1-1a) using ASD method is Select one: O a. 0.876 O b. 0.922 O c. 0.891 O d. 0.996
AW12x14 A36 steel section is used as a column. If the column is 15 ft long with pin supports at each end, then the largest permissible compressive axial load is most nearly... O 783 kips O 21 kips 0 241 kips O 150 kips
Ideal Column with Pin Supports Learning Goal: To use the formula for the critical load, i.e., the Euler buckling load, for pin-supported columns to calculate various parameters of columns. Ideally, a column that is perfectly straight and has an axial load applied exactly at the centroid of its cross section will not yield until the internal normal stress reaches the yield stress of the material. Real-world columns, however, are subject to small asymmetries, whether due to irregularities of shape or...
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long bars. Bar (1) is steel [E=200 GPa] with a cross-sectional area of A1 = 510 mm2. Bar (2) is an aluminium alloy [E-70 GPa] with a cross-sectional area of A2 1,300 mm2. All bars are unstressed before the load P is applied. If a concentrated load of P 200 kN acts on the structure at D determine: (a) the normal stresses in both bars...
Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C as shown in Figure Q1. Member (1) is a 20 mm wide by 9 mm thick rectangular bar made of Steel Alloys (A992). The total strain in bar (1) is measured as 925 ue (925x10°). The pin at C has an ultimate shear strength of ty = 345MPa. Determine: (a) The axial force in member (1). [9 marks] (b) The factor of safety in...
