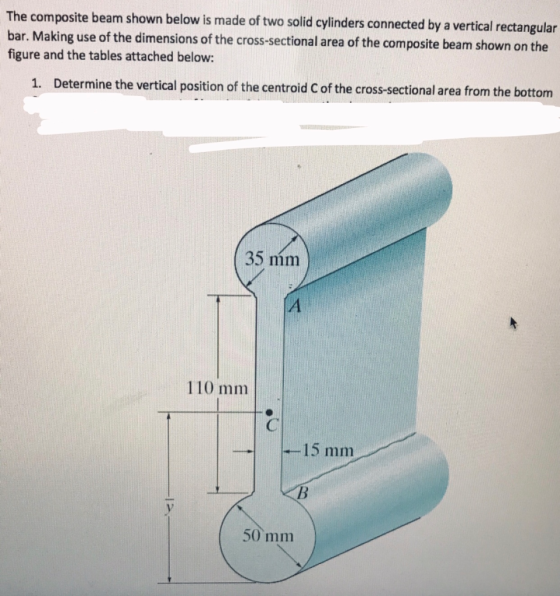

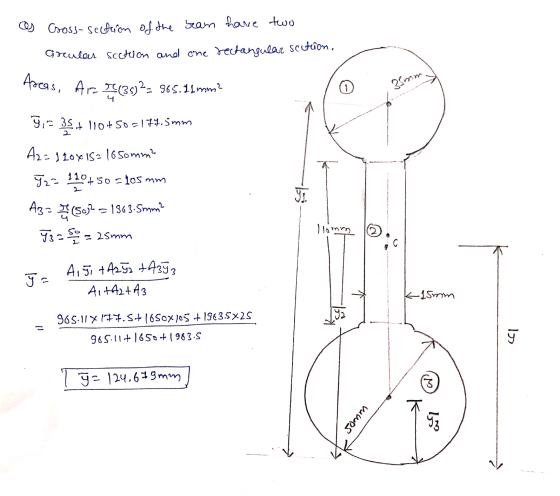

The composite beam shown below is made of two solid cylinders...
Locate the centroid of the composite cross-sectional area shown in the figure below. Also, determine the moments of inertia for the area about its x’and y' centroidal axes.
Locate the centroid of the composite cross-sectional area shown in the figure below. Also, determine the moments of inertia for the area about its x’and y' centroidal axes. y=y' Note: all dimensions in (mm).
4. (30%) For a beam with a T-section as shown, the cross-sectional dimensions of 12 mm....
4. (30%) For a beam with a T-section as shown, the cross-sectional dimensions of 12 mm. The centroid is 75 mm, h = 90 mm, t the beam are b 60 mm, h, at C and c 30 mm. At a certain section of the beam, the bending moment is M 5.4 kN m and the vertical shear force is V= 30 kN. (a) Show that the moment of inertia of the cross-section about the z axis (the neutral axis)...
I want the MD Solid Solution for this question only .. The solid rectangular beam shown...
I want the MD Solid Solution
for this question only ..
The solid rectangular beam shown has a cross-sectional area 100X50 mm. Ifitis subjected to the loading shown, determine the maximum stress in segment BC. .y 100 mm 500 mm 50 mm 800 mm
1. A composite beam is made of wood and reinforced with a steel strap located on...
1. A composite beam is made of wood and reinforced with a steel strap located on its bottom side. It has the cross-sectional area shown in the given Figure. Given the beam is subjected to a bending moment of M 2 kN m and the material properties wood and steel are, E Esteel 200 GPa, respectively, determine the of wood 12 GPa and 150 mm normal stress at points B and C (20 points) 20 mm
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below...
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below. a. State the distance of the centroid from the 2 axis. b. Calculate the area moment of inertia about the centroid. c. Calculate the maximum stress in the beam 300 mm 20 mm 185 mm 20 mm 35 mm
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in...
Homework No. 24 oblem 10.51 5 of 5 Consider the beam shown in (Figure 1). Suppose...
Homework No. 24 oblem 10.51 5 of 5 Consider the beam shown in (Figure 1). Suppose that a= 130 mm, b= 35 mm, and r=190 mm Part A axis passing Determine the moment of inertia for the beam's cross-sectional area about the through the centroid C of the cross section Express your answer to three significant figures and include the appropriate units. LValue Units Submit Request Answer < Return to Assignment Provide Feedback gure 1of1 ? 45°
4. For the cross sectional area of a beam shown below, location of the centroid C...
4. For the cross sectional area of a beam shown below, location of the centroid C with respect to x and y axes (25) 40 mm 40 mm 40 mm 10 mm 120 mm - 10 mm
The shown frame ABC has beam AB with a rectangular cross section of 150 mm by...
The shown frame ABC has beam AB with a rectangular cross section of 150 mm by 200 mm. Attached rod CB has a cross sectional area of 1250 mm2 and is pin-connected to beam AB at B. Use the Stiffness Method to Find the force in BC and the reactions at A a) Use the Stiffness Method to find the force in BC and the reactions at A If the horizontal displacement at B0.01688 mm, the vertical displacement at B...
Can you please only solve for 6,7,8, and 9 A channel shape is used to support...
Can you please only solve for
6,7,8, and 9
A channel shape is used to support the loads shown on the beam. The dimensions of the shape are also shown. Assume beam and determine B 3 ft, L 29 ft, P 2150 lb, w =900 lb/ft b 13 in d=10 in t=0.750 in. Consider the entire 12 t length of the (a) the maximum tension bending stress at any location along the beam, and (b) the maximum compression bending stress...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 2. SAN 1OAN R, FR 100mm FIG.2 (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are...
4. (30%) For a beam with a T-section as shown, the cross-sectional dimensions of 12 mm. The centroid is 75 mm, h = 90 mm, t the beam are b 60 mm, h, at C and c 30 mm. At a certain section of the beam, the bending moment is M 5.4 kN m and the vertical shear force is V= 30 kN. (a) Show that the moment of inertia of the cross-section about the z axis (the neutral axis)...
I want the MD Solid Solution
for this question only ..
The solid rectangular beam shown has a cross-sectional area 100X50 mm. Ifitis subjected to the loading shown, determine the maximum stress in segment BC. .y 100 mm 500 mm 50 mm 800 mm
1. A composite beam is made of wood and reinforced with a steel strap located on its bottom side. It has the cross-sectional area shown in the given Figure. Given the beam is subjected to a bending moment of M 2 kN m and the material properties wood and steel are, E Esteel 200 GPa, respectively, determine the of wood 12 GPa and 150 mm normal stress at points B and C (20 points) 20 mm
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below. a. State the distance of the centroid from the 2 axis. b. Calculate the area moment of inertia about the centroid. c. Calculate the maximum stress in the beam 300 mm 20 mm 185 mm 20 mm 35 mm
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in...
Homework No. 24 oblem 10.51 5 of 5 Consider the beam shown in (Figure 1). Suppose that a= 130 mm, b= 35 mm, and r=190 mm Part A axis passing Determine the moment of inertia for the beam's cross-sectional area about the through the centroid C of the cross section Express your answer to three significant figures and include the appropriate units. LValue Units Submit Request Answer < Return to Assignment Provide Feedback gure 1of1 ? 45°
4. For the cross sectional area of a beam shown below, location of the centroid C with respect to x and y axes (25) 40 mm 40 mm 40 mm 10 mm 120 mm - 10 mm
The shown frame ABC has beam AB with a rectangular cross section of 150 mm by 200 mm. Attached rod CB has a cross sectional area of 1250 mm2 and is pin-connected to beam AB at B. Use the Stiffness Method to Find the force in BC and the reactions at A a) Use the Stiffness Method to find the force in BC and the reactions at A If the horizontal displacement at B0.01688 mm, the vertical displacement at B...
Can you please only solve for
6,7,8, and 9
A channel shape is used to support the loads shown on the beam. The dimensions of the shape are also shown. Assume beam and determine B 3 ft, L 29 ft, P 2150 lb, w =900 lb/ft b 13 in d=10 in t=0.750 in. Consider the entire 12 t length of the (a) the maximum tension bending stress at any location along the beam, and (b) the maximum compression bending stress...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 2. SAN 1OAN R, FR 100mm FIG.2 (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are...
