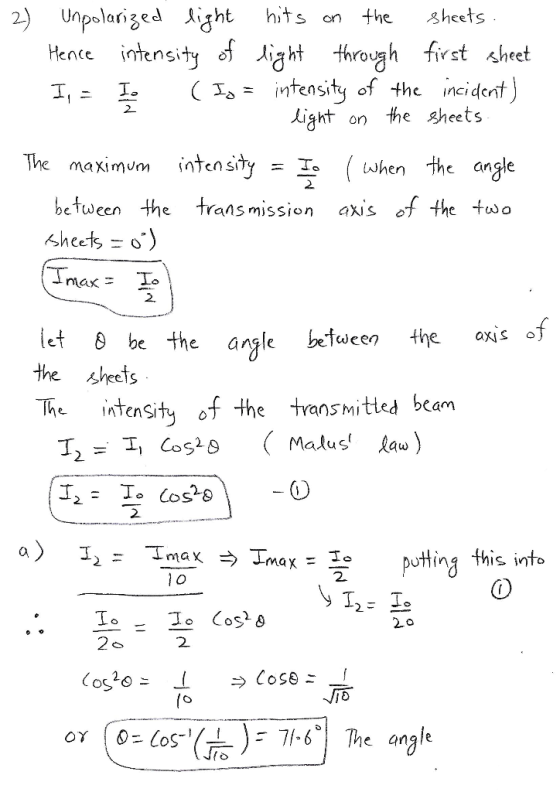

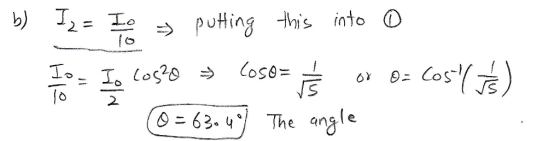

2. Unpolarized light falls on two polarizing sheets placed one above the other. What is the...
[6]17. A beam of unpolarized light, intensity lo, is sent through two polarizing sheets placed one...
[6]17. A beam of unpolarized light, intensity lo, is sent through two polarizing sheets placed one on top of the other. The light transmitted from the second polarizing sheet has intensity equal to 28.0% of the original incident intensity, 1o. What is the angle between the polarizing directions of the two sheets? Give your answer in the form "ab.c" degrees.
Two polarizing sheets are placed together with their transmission axes at an angle of 68.0° to...
Two polarizing sheets are placed together with their transmission axes at an angle of 68.0° to each other. A third sheet is inserted between them with its transmission axis at an angle of 34.0° with respect to each of the other axes. Find the fraction of incident unpolarized light intensity transmitted by the three-sheet combination. (Assume each polarizing sheet is ideal.)
In the figure above, initially unpolarized light is sent through three polarizing sheets whose polarizing directions...
In the figure above, initially unpolarized light is sent through three polarizing sheets whose polarizing directions make angles of theta_1 = theta_2 = theta_3 = 41.5 degree with the direction of y axis. What percentage of the initial intensity is transmitted by the system of three sheets ? 48.526% 0.37131% 24.268% 0.732% 0.01103%
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed...
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
Unpolarized light of intensity 600 W/m' is incident on two ideal polarizing sheets that are placed...
Unpolarized light of intensity 600 W/m' is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
Unpolarized light of intensity S0 passes through 2 sheets of polarizing material who’s transmission axis make...
Unpolarized light of intensity S0 passes through 2 sheets of polarizing material who’s transmission axis make an angle of 60° with each other. What is the intensity of the transmitted beam ST S0/4 S0/8 3S0/4 S0/16 Zero
2 Two linear polarizing filters are placed one behind the other, so that their transmission directions...
2
Two linear polarizing filters are placed one behind the other, so that their transmission directions are parallel to one another. A beam of unpolarized light of intensity I_0 is directed at the two filters. What fraction of the light will pass through both filters?
Three polarizing sheets are placed together such that the transmission axis of the second sheet is...
Three polarizing sheets are placed together such that the transmission axis of the second sheet is oriented at 25 deg to the axis of the first, whereas the transmission axis of the third sheet is oriented at 60 deg (in the same sense) to the axis of the first. What fraction of the intensity of an incident unpolarized beam is transmitted by the combination? Fraction of the intensity of an incident unpolarized beam transmitted =
In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets. The...
In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets. The angles 01, 02, and 63 of the polarizing directions are measured counterclockwise from the positive direction of the y axis (they are not drawn to scale). Angles 01 and 63 are fixed, but angle O2 can be varied. Figure (b) gives the intensity of the light emerging from sheet 3 as a function of 02. (The scale of the intensity axis is not indicated.)...
In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets. The...
In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets. The angles 01, 02, and 3 of the polarizing directions are measured counterclockwise from the positive direction of the y axis (they are not drawn to scale). Angles 01 and 83 are fixed, but angle 82 can be varied. Figure (b) gives the intensity of the light emerging from sheet 3 as a function of e2. (The scale of the intensity axis is not indicated.)...
[6]17. A beam of unpolarized light, intensity lo, is sent through two polarizing sheets placed one on top of the other. The light transmitted from the second polarizing sheet has intensity equal to 28.0% of the original incident intensity, 1o. What is the angle between the polarizing directions of the two sheets? Give your answer in the form "ab.c" degrees.
In the figure above, initially unpolarized light is sent through three polarizing sheets whose polarizing directions make angles of theta_1 = theta_2 = theta_3 = 41.5 degree with the direction of y axis. What percentage of the initial intensity is transmitted by the system of three sheets ? 48.526% 0.37131% 24.268% 0.732% 0.01103%
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
Unpolarized light of intensity 600 W/m' is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
2
Two linear polarizing filters are placed one behind the other, so that their transmission directions are parallel to one another. A beam of unpolarized light of intensity I_0 is directed at the two filters. What fraction of the light will pass through both filters?
Three polarizing sheets are placed together such that the transmission axis of the second sheet is oriented at 25 deg to the axis of the first, whereas the transmission axis of the third sheet is oriented at 60 deg (in the same sense) to the axis of the first. What fraction of the intensity of an incident unpolarized beam is transmitted by the combination? Fraction of the intensity of an incident unpolarized beam transmitted =
In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets. The angles 01, 02, and 63 of the polarizing directions are measured counterclockwise from the positive direction of the y axis (they are not drawn to scale). Angles 01 and 63 are fixed, but angle O2 can be varied. Figure (b) gives the intensity of the light emerging from sheet 3 as a function of 02. (The scale of the intensity axis is not indicated.)...
In Figure (a) below, unpolarized light is sent into a system of three polarizing sheets. The angles 01, 02, and 3 of the polarizing directions are measured counterclockwise from the positive direction of the y axis (they are not drawn to scale). Angles 01 and 83 are fixed, but angle 82 can be varied. Figure (b) gives the intensity of the light emerging from sheet 3 as a function of e2. (The scale of the intensity axis is not indicated.)...
