= 11.9 uF, C2 = 6.95 HF, and C3 = 3.71 HF. If capacitor 3 undergoes...

Question

Question

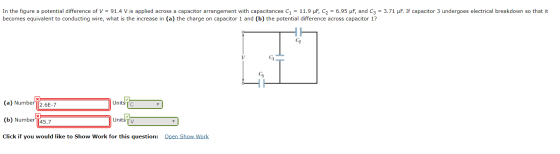

= 11.9 uF, C2 = 6.95 HF, and C3 = 3.71 HF. If capacitor 3 undergoes electrical breakdown so that it In the figure a potential

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

V1 C1 = 3 uF, C2 = 6 F, C3 = 4 uF, C4 = 2uF,...

V1 C1 = 3 uF, C2 = 6 F, C3 = 4 uF, C4 = 2uF, V1 = 90 V For the system of four capacitors shown in the figure, find (a) the equivalent capacitance of the system, (b) the charge on each capacitor, (c) the potential difference across each capacitor C1 C2 C4 C3
Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1...

Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1 uF, are connected to a 20 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ? C a. Ca C3 b. ΑΣΦ ? YC
In Figure, let C1=2.6 uF, C2=4.9 uF, and Vab= +61.0 V. A) Calculate charge on capacitor...

In Figure, let C1=2.6 uF, C2=4.9 uF, and Vab= +61.0 V. A) Calculate charge on capacitor C1. B) Calculate charge on capacitor C2. C) Calculate the potential difference across capacitor C1. D) Calculate the potential difference across capacitor C2. ab=V C's ob-v2 QQ +1 +1 a. 不

In the figure a potential difference of V = 120 V is applied across a capacitor...

In the figure a potential difference of V = 120 V is applied across a capacitor arrangement with capacitances C1 = 8.88 UF, C2 = 7.45 pF, and C3 = 12.0 pF. What are (a) charge 43, (b) potential difference V3, and (c) stored energy Uz for capacitor 3, (d) 91, (e) Vu, and (f) U, for capacitor 1, and (g) 92, (h) V2, and (i) U2 for capacitor 2 Cg
please show work Three capacitors C = 3.0 uF, C2 = 1.0 uF, and C3 =...

please show work Three capacitors C = 3.0 uF, C2 = 1.0 uF, and C3 = 2.0 uF are connected as shown in the Figure to a battery AV = 6.0 V. a) Calculate the equivalent capacitance between the 6V the battery. b) Calculate the charge on C1 c) Calculate the electric potential difference on C2 d) Calculate the electric energy stored on C3 С1 C2 = = = C3 AV
In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure...

In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure < 1 of 1 > C C2 a C3 d b C4 (a) Calculate the charge on capacitor C1 Q1= (b) Calculate the potential difference across capacitor C1 V1= (c) Calculate the charge on capacitor C2 Q2= (d) Calculate the potential difference across capacitor C2 V2= (e) Calculate the charge on capacitor C3. Q3= (f) Calculate the potential difference across capacitor C3. V3= (g)...

In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure...

In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure < 1 of 1 > C C2 a C3 d b C4 (a) Calculate the charge on capacitor C1 Q1= (b) Calculate the potential difference across capacitor C1 V1= (c) Calculate the charge on capacitor C2 Q2= (d) Calculate the potential difference across capacitor C2 V2= (e) Calculate the charge on capacitor C3. Q3= (f) Calculate the potential difference across capacitor C3. V3= (g)...
In the figure a potential difference of V = 120 V is applied across a capacitor...

In the figure a potential difference of V = 120 V is applied across a capacitor arrangement with capacitances C1 = 12.3 µF, C2 = 7.39 µF, and C3 = 14.1 µF. What are (a) charge q3, (b) potential difference V3, and (c) stored energy U3 for capacitor 3, (d) q1, (e) V1, and (f) U1 for capacitor 1, and (g) q2, (h) V2, and (i) U2 for capacitor 2 C2 CL C3
In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the...

In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the battery supplies 9 V. Cg С G2 (a) Find the equivalent capacitance of the circuit. Select one: a. 27.00 pF b. 6.52 pF O c. 16.00 pF d. 15.00 pF In the circuit below C1 = C2 = 8 pF, and C3 = 11 uF, the battery supplies 9 V. Cg C C (b) What is the potential energy stored by capacitor Cı? Select...
