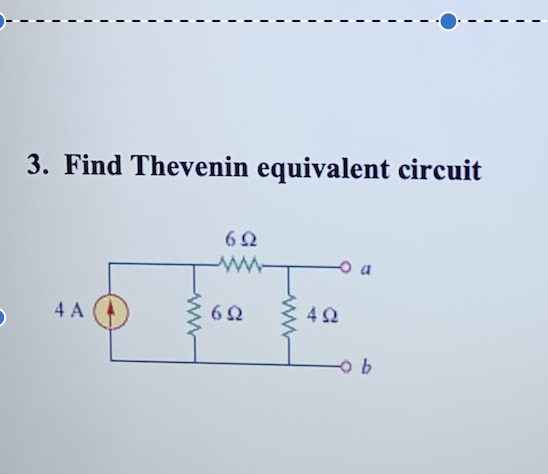

Homework Answers

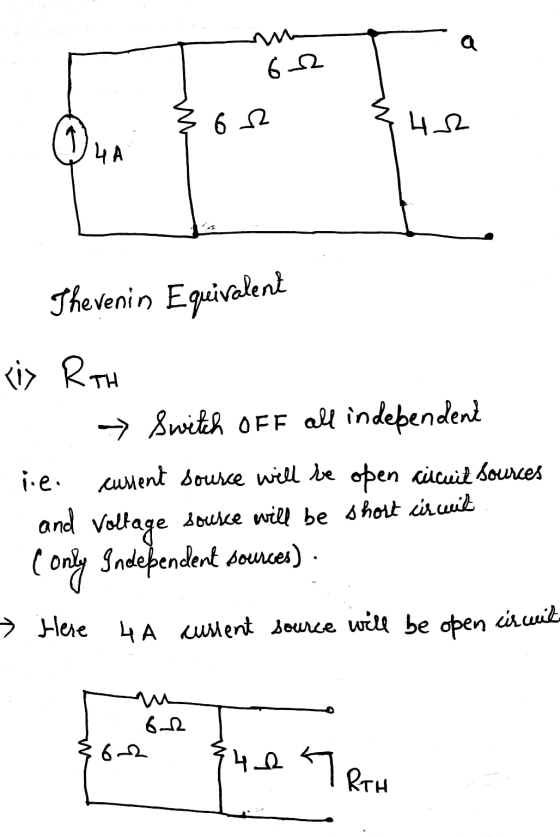

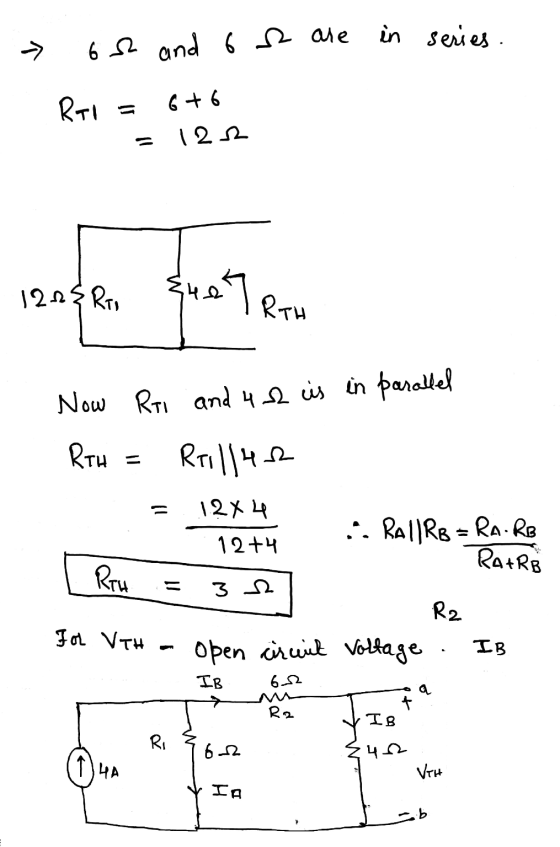

If you have any doubt ,please feel free to ask in comment section.
Please Rate my work.
Need the thevenin equivalent circuits and the solutions. 4) Find the Thevenin equivalent circuit between nodes...
Need the thevenin equivalent
circuits and the solutions.
4) Find the Thevenin equivalent circuit between nodes A & B for the circuit shown in Figure 4. Build the circuit in MultiSim and use its ohmmeter (choose the "Multimeter" tool and set it to measure resistance) to verify the Thevenin equivalent resistance between A & B. 2 I Figure 4: Circuit for Exercise 4
4) Find the Thevenin equivalent circuit between nodes A & B for the circuit shown in...
4) Find the Thevenin equivalent circuit between nodes A & B
for the circuit shown in Figure 4. Build the circuit in MultiSim
and use its ohmmeter (choose the “Multimeter” tool and set it to
measure resistance) to verify the Thevenin equivalent resistance
between A & B.
5000 500S B0 SOOL mo = Figure 4: Circuit for Exercise 4
1.Find the Thevenin Equivalent Voltage and the Thevenin Equivalent Resisitance. 2. Show the Thevenin Equivalent Circuit....
1.Find the Thevenin Equivalent Voltage and the Thevenin Equivalent Resisitance. 2. Show the Thevenin Equivalent Circuit. R1 1.2k R4 1.2k NN Vab = Voc = ETH 3.3k RTH Vab = ETH
3. For the circuit shown below in Figure 3, perform Thevenin Equivalent circuit analysis. Vse 100,...
3. For the circuit shown below in Figure 3, perform Thevenin Equivalent circuit analysis. Vse 100, R1=40, R2=40, and R3=40 a. Find the Thevenin Resistance b. Find the Thevenin Voltage c. Show the Equivalent Circuit d. Find the maximum power transfer to the load WY 0- Figure 3
Find the Thevenin Equivalent at terminals a-b for the given circuit. Find the Thevenin resistance,...
Find the Thevenin Equivalent at terminals a-b for the given circuit. Find the Thevenin resistance, Rth, of the circuit using the test source method. Write answer in the box provided and draw equivalent circuit.
4. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure...
4. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 4. (b)Find the current through R when R is 22, 302, and 100 S2. Figure 4 5. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 5. (b)Find the power delivered to R when R is 2 k2 and 100 3000 11 04ko 21.20 Figure 5 6. (a)Find the Thevenin equivalent circuit for the network external to the...
Find the Thevenin equivalent for the circuit. ROL び3.se ab
Find the Thevenin equivalent for the circuit.
ROL び3.se ab
Consider the circuit in figure 4. a) find the thevenin equivalent of the network connected to...
Consider the circuit in figure 4.
a) find the thevenin equivalent of the network connected to
the inductor L1.
b) find the mathmatical equations for the transient behavior
of the current. iL(t) and the voltage vL(t) following the closing
of the switch.
c) determine the value of current iL at t= 20?s.
Question 5 (10 points) (Obj. 4) Consider the circuit in Figure 4. a) Find the Thevenin equivalent of the network connected to the inductor L1.(4 points) mathematical equations...
Problem 3 Find the Thevenin equivalent circuit with respect to the terminals a, b for the...
Problem 3 Find the Thevenin equivalent circuit with respect to the terminals a, b for the circuit shown. 4Ω 600 V 4Ω 4Ω
1. Explain in your own words how to experimentally find the Thevenin Equivalent of a circuit...
1. Explain in your own words how to experimentally find the Thevenin Equivalent of a circuit 2. Given RL = 1K where N is a circuit of resistors and voltages. Can Rtell whether it is connected to N or N's Thevenin Equivalent? How? 3. Given Find and draw the Thevenin Equivalent if Voc = 2 volts and Ry + R2 = 10K 4. Given R = IKS Find and draw the Thevenin Equivalent of N if V. = 3 volts...
Need the thevenin equivalent
circuits and the solutions.
4) Find the Thevenin equivalent circuit between nodes A & B for the circuit shown in Figure 4. Build the circuit in MultiSim and use its ohmmeter (choose the "Multimeter" tool and set it to measure resistance) to verify the Thevenin equivalent resistance between A & B. 2 I Figure 4: Circuit for Exercise 4
4) Find the Thevenin equivalent circuit between nodes A & B
for the circuit shown in Figure 4. Build the circuit in MultiSim
and use its ohmmeter (choose the “Multimeter” tool and set it to
measure resistance) to verify the Thevenin equivalent resistance
between A & B.
5000 500S B0 SOOL mo = Figure 4: Circuit for Exercise 4
1.Find the Thevenin Equivalent Voltage and the Thevenin Equivalent Resisitance. 2. Show the Thevenin Equivalent Circuit. R1 1.2k R4 1.2k NN Vab = Voc = ETH 3.3k RTH Vab = ETH
3. For the circuit shown below in Figure 3, perform Thevenin Equivalent circuit analysis. Vse 100, R1=40, R2=40, and R3=40 a. Find the Thevenin Resistance b. Find the Thevenin Voltage c. Show the Equivalent Circuit d. Find the maximum power transfer to the load WY 0- Figure 3
4. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 4. (b)Find the current through R when R is 22, 302, and 100 S2. Figure 4 5. (a)Find the Thevenin equivalent circuit for the network external to the resistor R in Figure 5. (b)Find the power delivered to R when R is 2 k2 and 100 3000 11 04ko 21.20 Figure 5 6. (a)Find the Thevenin equivalent circuit for the network external to the...
Find the Thevenin equivalent for the circuit.
ROL び3.se ab
Consider the circuit in figure 4.
a) find the thevenin equivalent of the network connected to
the inductor L1.
b) find the mathmatical equations for the transient behavior
of the current. iL(t) and the voltage vL(t) following the closing
of the switch.
c) determine the value of current iL at t= 20?s.
Question 5 (10 points) (Obj. 4) Consider the circuit in Figure 4. a) Find the Thevenin equivalent of the network connected to the inductor L1.(4 points) mathematical equations...
Problem 3 Find the Thevenin equivalent circuit with respect to the terminals a, b for the circuit shown. 4Ω 600 V 4Ω 4Ω
1. Explain in your own words how to experimentally find the Thevenin Equivalent of a circuit 2. Given RL = 1K where N is a circuit of resistors and voltages. Can Rtell whether it is connected to N or N's Thevenin Equivalent? How? 3. Given Find and draw the Thevenin Equivalent if Voc = 2 volts and Ry + R2 = 10K 4. Given R = IKS Find and draw the Thevenin Equivalent of N if V. = 3 volts...
