Question

If the resistance of the wire is 7 Ohms, what is the magnitude and direction of its magnetic moment produced by the average induced current in A m2

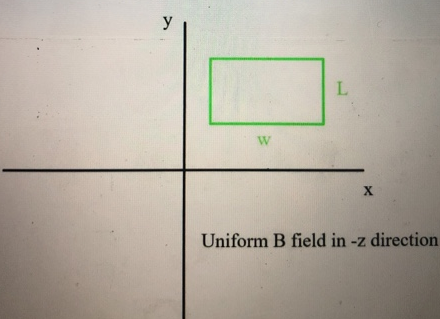

A uniform magnetic field is directed in the -z direction. A rectangular wire wound 5 times with a length of 0.7 meters and width of 0.8 meters is placed in the x-y plane in the field. The magnetic field is changed in magnitude from 15 Tesla to 4 Tesla in a time of 0.6 seconds. If the resistance of the wire is 7 Ohms, what is the magnitude and direction of its magnetic moment produced by the average induced current in A m2? Indicate negative z direction by including a negative sign and don't include a sign for the positive z direction.



science   physics
2 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

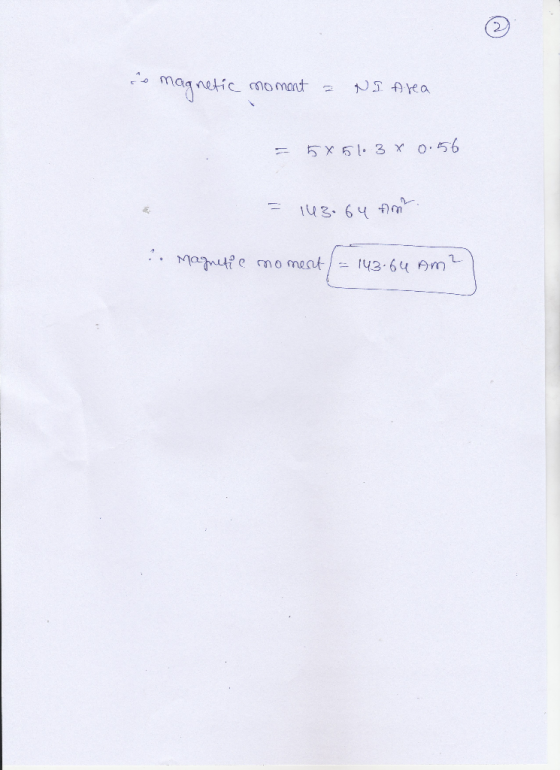

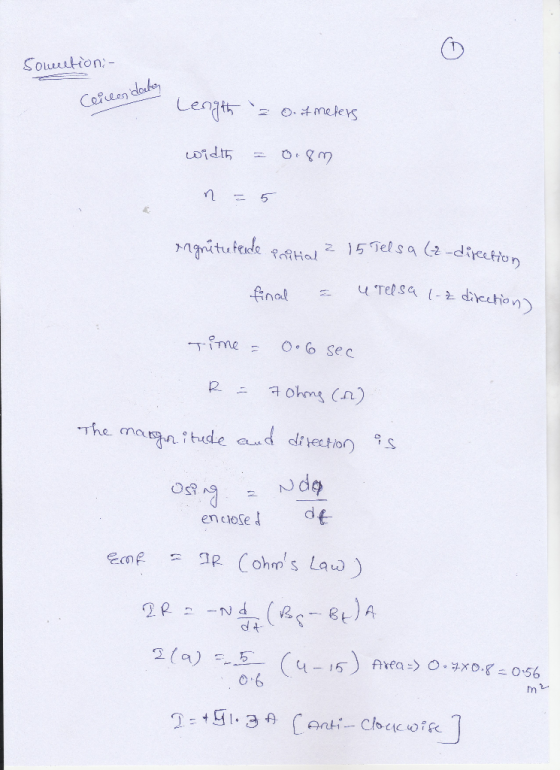

Answer #1

0 0
