Question

Design, write, and test a program in MIPS which requests and reads two integer values from the user, multiply the values together, and then outputs the results.

Answer 1

//Tested on Mars simulator

//user should have knowledge about register and instruction set

/************multiplication.asm*************/

.data
    prompt: .asciiz "please Enter first number:"
    prompt1: .asciiz "Please Enter second number:"
    message: .asciiz "Multiplication is:"

.text
     #Prompt the user to enter first number
     li $v0,4 #4 for string
     la $a0,prompt
     syscall

     #Storing first number
     li $v0,5 #5 for integer
     syscall

     #Store the result in $t0
     move $t0,$v0

     #Prompt the user to enter Second number
     li $v0,4 #4 for string
     la $a0,prompt1
     syscall

     #Storing second number
     li $v0,5 #5 for integer
     syscall
     #Store the result in $t1
     move $t1,$v0

     #multiply both number and storing result into $t2
     mul $t2,$t1,$t0

     #displaying message
     li $v0,4
     la $a0, message
     syscall

    #printing multiplication
    li $v0,1
    move $a0,$t2
    syscall

/***************output***********/

please Enter first number:10
Please Enter second number:3
Multiplication is:30

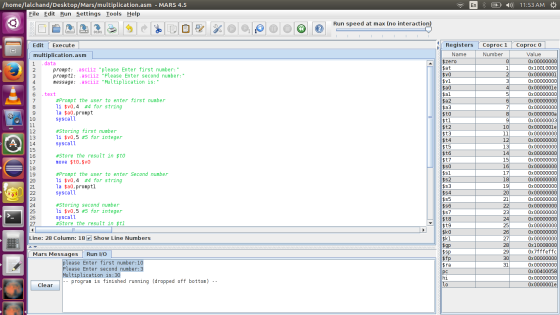

/home/lalchand/Desktop/Mars/multiplication.asm - MARS 4.5 ) 11:53 AM File Edit Run Settings Tools Help Run speed at max (no interaction) Registers Coproc1Coproc O Number Edit Execute Value 0x00000000 0x10010000 0x00000001 0x00000000 0x0000001e 0x00000000 0x00000000 0x00000000 0x0000000a 0x00000003 0x0000001e 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x00000000 0x10008000 Ox7fffeffc 0x00000000 0x00000000 0x00400058 0x00000000 0x0000001e multiplication.asm Name 1 data $Zero prompt: asciiz "please Enter first number:" promptl: .asciiz "Please Enter second number: message asciiz "Multiplication is:" 6 .text #Prompt the user to enter first number li $vo, 4 #4 for string la $a0,prompt syscall 8 #Sto ring first number li $vo,5 #5 for integer syscall 12 #Store the result in $to move $t0, $vO #Prompt the user to enter Second number li $vo,4 #4 for string la $a0,promptl syscall 20 21 23 25 20 #Storing second number li $vo,5 #5 for integer syscall #Store the result in $t1 23 26 25 26 27 28 29 30 $ko Line: 28 Column: 18 Show Line Numbers Mars MessagesRun I/O lease Enter first number:10 Please Enter second number:3 ra ltiplication is:30 -- program is finished running (dropped off bottom) -- hi Clear

Thanks a lot. If you have any doubt please let me know
