Carbon Oxide (CO) initially occupying 1.7 m3 at 8 bar, 246.85°C undergoes an internally reversible expansion...

Carbon Oxide (CO) initially occupying 1.7 m3 at 8 bar, 246.85°C undergoes an internally reversible expansion during which pV1.3 = constant to a final state where the temperature is 36.85°C. Assuming the ideal gas model, determine the entropy change, in Joules/K.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

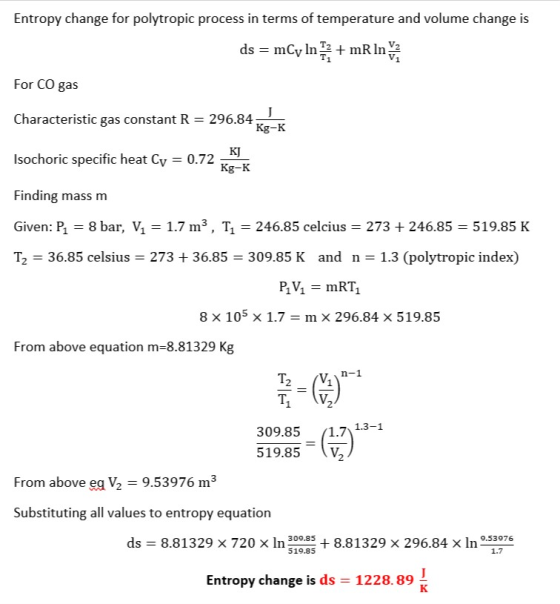

Entropy change for polytropic process in terms of temperature and volume change is ds = mCy In + mR In Ying For CO gas Charac

0 0
