Problem 7.075 An air-cooled steam condenser is operated with air in cross flow over a square,...
Problem 7.075 An air-cooled steam condenser is operated with air in cross flow over a square, in-...

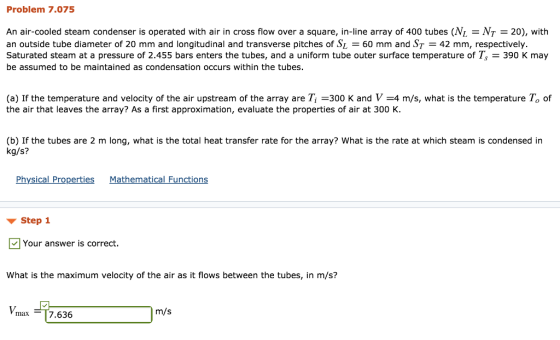

Problem 7.075 An air-cooled steam condenser is operated with air in cross flow over a square, in-line array of 400 tubes (N N-20), with an outside tube diameter of 20 mm and longitudinal and transverse pitches of s 60 mm and sr 84 mm, respectively. Saturated steam at a pressure of 2.455 bars enters the tubes, and a uniform tube outer surface temperature of T,-390 K may be assumed to be maintained as condensation occurs tudy ithin the tubes. (a)...

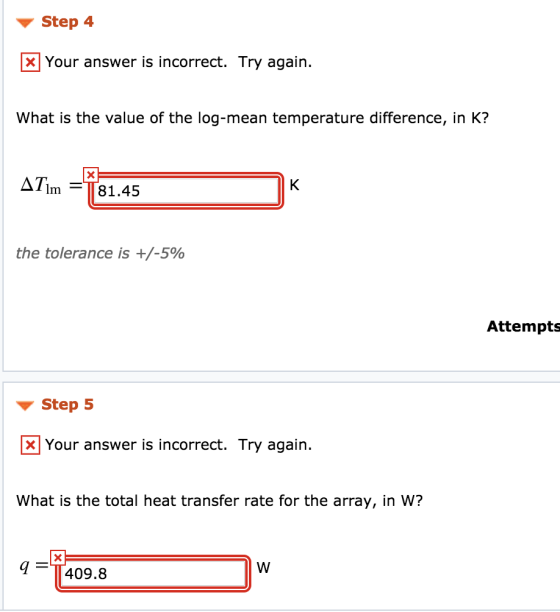

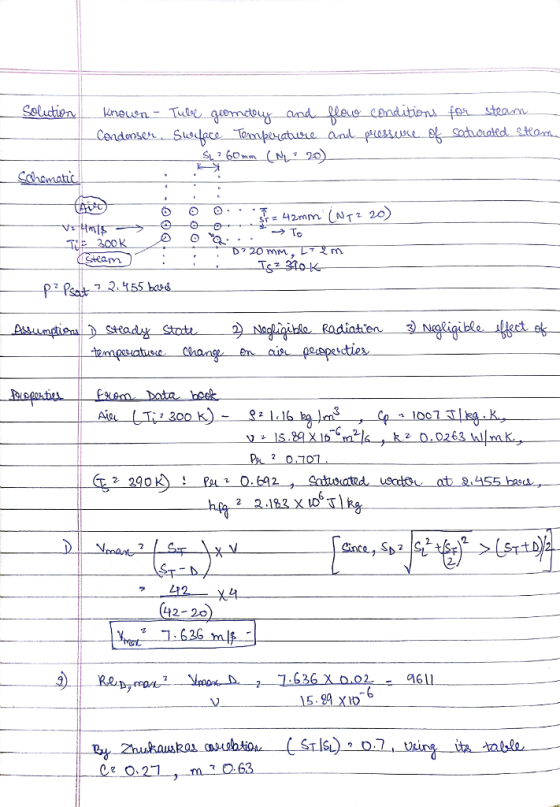

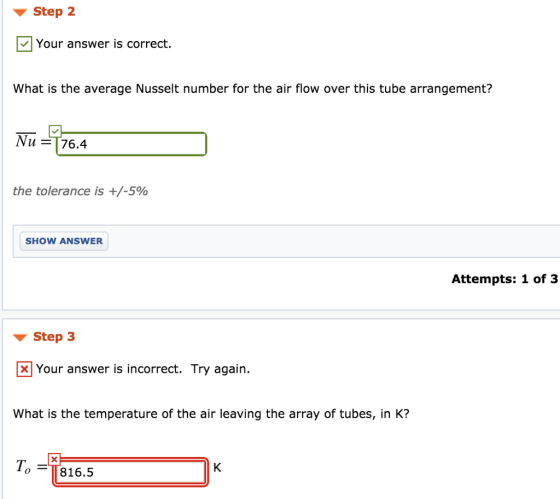

please show work thank you An air-cooled steam condenser is operated with air in cross flow...
please show work thank you
An air-cooled steam condenser is operated with air in cross flow over a square, in-line array of 400 tubes (NL=NT-20), with an outside tube diameter of 20 mm and longitudinal and transverse pitches of SL-60 mm and ST = 63 mm, respectively. Saturated steam at a pressure of 2.455 bars enters the tubes, and a uniform tube outer surface temperature of Ts=390 K may be assumed to be maintained as condensation occurs within the tubes....
1 points QUESTION 13 Air is to be heated by passing it over a bank of...
1 points QUESTION 13 Air is to be heated by passing it over a bank of 3-m-long tubes inside which steam is condensing at 100 C. Air approaches the tube bank in the normal drection at 20 C and 1 atm with a mean velocity of 5.2 m/s. The outer diameter of the tubes is 1.6 cm, and the tubes are arranged staggered with longitudinal and transverse pitches of SL ST 4 cm. There are 20 ows in the flow...
An air cooled automotive condenser is to transfer 5 kW to an air flow with velocity...
An air cooled automotive condenser is to transfer 5 kW to an air flow with velocity of 10 m/s entering at 30 oC and leaving at 34 oC. The heat transfer coefficient of R-134a is 400 W/m2 k. The tubes are copper and are 15mm I.D. and 17mm O.D. The evaporating temperature is 5 oC, and the condensing temperature is 40 oC. What is the required airside area? Kcopper= 390 W/m. k
PROBLEM 3 (45 points) The condenser of a large steam power plant is a heat exchanger...
PROBLEM 3 (45 points) The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a parallel flow shell-and-tube heat exchanger consisting of a single shell and 1x10 tubes, each executing two passes. The inner diameter of tubes is D = 50 mm and its thickness is 5 mm (Do not ignore the thickness). The steam condenses on their outer surface. Thermal conductivity of the tube...
The condenser of a large steam power plant is a heat exchanger in which steam is...
The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a shell-and-tube heat exchanger consisting of a single shell and 30,000 tubes, each executing two passes (see figure below). The tubes are of thin wall construction with D=25mm, and steam condenses on their outer surface with an associated convection coefficient ho=11,000W/ m K The heat transfer rate that must be effected by the heat exchanger...
Problem 3. (25 points) In a Rankine power system, 1.5 kg/s of steam leaves the turbine...
Problem 3. (25 points) In a Rankine power system, 1.5 kg/s of steam leaves the turbine as saturated vapor at 0.51 bar. The steam is condensed to saturated liquid by passing it over the tubes of a shell-and-tube heat exchanger, while liquid water, having an inlet temperature of T = 280 K, is passed through the tubes. The condenser contains 100 thin-walled tubes, each of 10-mm diameter, and the total water flow rate through the tubes is 15 kg/s. The...
Qi. A flat plate of width 1 m and length 0.2m is maintained at a temperature of 32°C. Ambient fluid at 22"C fBlows across the top of the plate in parallel flow. Determine the average heat tr...
Qi. A flat plate of width 1 m and length 0.2m is maintained at a temperature of 32°C. Ambient fluid at 22"C fBlows across the top of the plate in parallel flow. Determine the average heat transfer coefficient, the convection heat transfer rate from the top of the plate, and the drag force on the plate for the following: (a) The Buid is water flowing at a velocity of 0.5 m/s. o) Water is flowing at a velocity of 2.5...
QUESTION 3 Air at atmospheric pressure flows with an inlet velocity of 1 m/s across a...
QUESTION 3 Air at atmospheric pressure flows with an inlet velocity of 1 m/s across a bank of tubes 10 rows deep in the direction of flow. The tubes have an outside diameter of 10 mm and are arranged in a staggered manner with a longitudinal pitch of Si-15 mm and a transverse pitch of ST- 15 mm. The surface temperature of the tubes is maintained at 77°C by hot water flowing in the tubes. Determine the mean heat transfer...
Thin-walled aluminum tubes of diameter D = 10 mm are used in the condenser of an air conditioner....
Thin-walled aluminum tubes of diameter D = 10 mm are used in the condenser of an air conditioner. Under normal operating conditions, a convection coefficient of hi = 5000 W/m2 · K is associated with condensation on the inner surface of the tubes, while a coefficient of ho = 100 W/m2 · K is maintained by airflow over the tubes. a. What is the overall heat transfer coefficient if the tubes are unfinned? b. What is the overall heat transfer...
Problem 7.075 An air-cooled steam condenser is operated with air in cross flow over a square, in-line array of 400 tubes (N N-20), with an outside tube diameter of 20 mm and longitudinal and transverse pitches of s 60 mm and sr 84 mm, respectively. Saturated steam at a pressure of 2.455 bars enters the tubes, and a uniform tube outer surface temperature of T,-390 K may be assumed to be maintained as condensation occurs tudy ithin the tubes. (a)...
please show work thank you
An air-cooled steam condenser is operated with air in cross flow over a square, in-line array of 400 tubes (NL=NT-20), with an outside tube diameter of 20 mm and longitudinal and transverse pitches of SL-60 mm and ST = 63 mm, respectively. Saturated steam at a pressure of 2.455 bars enters the tubes, and a uniform tube outer surface temperature of Ts=390 K may be assumed to be maintained as condensation occurs within the tubes....
1 points QUESTION 13 Air is to be heated by passing it over a bank of 3-m-long tubes inside which steam is condensing at 100 C. Air approaches the tube bank in the normal drection at 20 C and 1 atm with a mean velocity of 5.2 m/s. The outer diameter of the tubes is 1.6 cm, and the tubes are arranged staggered with longitudinal and transverse pitches of SL ST 4 cm. There are 20 ows in the flow...
PROBLEM 3 (45 points) The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a parallel flow shell-and-tube heat exchanger consisting of a single shell and 1x10 tubes, each executing two passes. The inner diameter of tubes is D = 50 mm and its thickness is 5 mm (Do not ignore the thickness). The steam condenses on their outer surface. Thermal conductivity of the tube...
The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a shell-and-tube heat exchanger consisting of a single shell and 30,000 tubes, each executing two passes (see figure below). The tubes are of thin wall construction with D=25mm, and steam condenses on their outer surface with an associated convection coefficient ho=11,000W/ m K The heat transfer rate that must be effected by the heat exchanger...
Problem 3. (25 points) In a Rankine power system, 1.5 kg/s of steam leaves the turbine as saturated vapor at 0.51 bar. The steam is condensed to saturated liquid by passing it over the tubes of a shell-and-tube heat exchanger, while liquid water, having an inlet temperature of T = 280 K, is passed through the tubes. The condenser contains 100 thin-walled tubes, each of 10-mm diameter, and the total water flow rate through the tubes is 15 kg/s. The...
Qi. A flat plate of width 1 m and length 0.2m is maintained at a temperature of 32°C. Ambient fluid at 22"C fBlows across the top of the plate in parallel flow. Determine the average heat transfer coefficient, the convection heat transfer rate from the top of the plate, and the drag force on the plate for the following: (a) The Buid is water flowing at a velocity of 0.5 m/s. o) Water is flowing at a velocity of 2.5...
QUESTION 3 Air at atmospheric pressure flows with an inlet velocity of 1 m/s across a bank of tubes 10 rows deep in the direction of flow. The tubes have an outside diameter of 10 mm and are arranged in a staggered manner with a longitudinal pitch of Si-15 mm and a transverse pitch of ST- 15 mm. The surface temperature of the tubes is maintained at 77°C by hot water flowing in the tubes. Determine the mean heat transfer...
