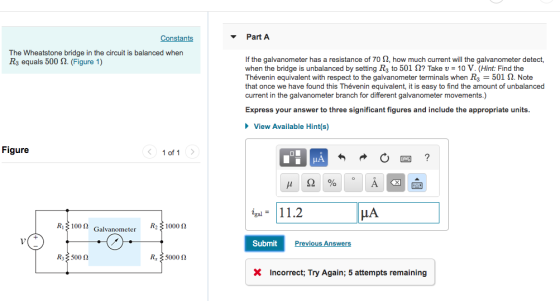

Constants Part A The Wheatstone bridge in the circuit is balanced when If the galvanometer has a resistance of 70 Ω, how much current will the galvanometer detect, when the bridge is unbalanced by setting R3 to 501 2? Take v 10 V. (Hint: Find the Thévenin equivalent with respect to the galvanometer terminals when R3 501 Ω. Note that once we have found this Thévenin equivalent, it is easy to find the amount of unbalanced current in the galvanometer branch for different galvanometer movements.) equals 500 Ω. (Figure 1) Express your answer to three significant figures and include the appropriate units View Available Hint(s) Figure 1 of 1 Ω% igal11.2 R1 10012 Galvanometer R2 $1000 Ω Submit |Prev evious Answer R3 500 Ω R, 5000 Ω X Incorrect, Try Again; 5 attempts remaining

0 0
Add a comment Improve this question Transcribed image text
Answer #1

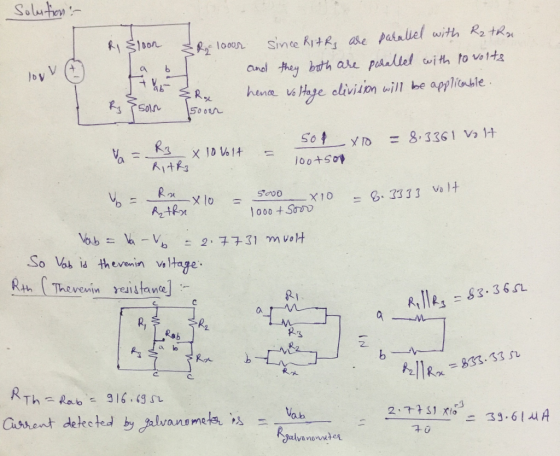

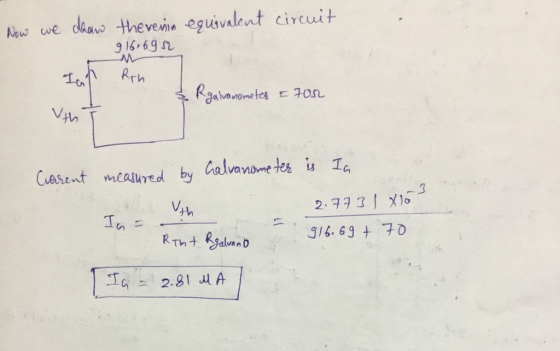

a b jo 0 100S So Vas is thevenin age R2 a lo ament detected by ohlrano me忾, 구0 galvanonete

Add a comment
Know the answer?
Add Answer to:
Constants Part A The Wheatstone bridge in the circuit is balanced when If the galvanometer has...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit a...

    Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-20 Ω,R2= 12 Ω, R3-18 Ω, R4= 20 Ω, R5= 9 Ω , R.-3 ΩΊ,-15 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Subrnit Answer Tries 0/3 (b) Determining the load current I following from a to b for the Wheatstone bridge circuit with...

  • 8. Fig. 1 is a Wheatstone bridge circuit. No current flows through the galvanometer. You find Rx is d. 144 Ω b. 5Ω 1 296-02 12 6.0043 60 Voltage V 8. Fig. 1 is a Wheatstone bridge circuit. No...

    8. Fig. 1 is a Wheatstone bridge circuit. No current flows through the galvanometer. You find Rx is d. 144 Ω b. 5Ω 1 296-02 12 6.0043 60 Voltage V 8. Fig. 1 is a Wheatstone bridge circuit. No current flows through the galvanometer. You find Rx is d. 144 Ω b. 5Ω 1 296-02 12 6.0043 60 Voltage V

  • Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit a...

    Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1: 23 Ω, R2° 13 O, R,-230, R4% 3 Ω. RS: 28 Ω , RL: 13 Ω ,Vs-90 . I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice 1 Submit Answer Tries 0/3 (b) Determining the load current I following from a to b for the...

  • Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone B...

    Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...

  • Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone B...

    Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...

  • Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone B...

    Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-22 Ω, R2-15 Ω, R3-28 Ω, R4-9 Ω, R5-29 Ω , R.-16 Ω, 1,-6 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Submit Answer Tries 0/4 (b) Determining the load current IL following...

  • 7.- The Wheatstone Bridge. The circuit shown in the figure, called a Wheatstone bridge, is used...

    7.- The Wheatstone Bridge. The circuit shown in the figure, called a Wheatstone bridge, is used to determine the value of an unknown resistor \(X\) by comparison with three resistors \(M, N\), and \(P\) whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches \(K_{1}\) and \(K_{2}\) closed, these resistors are varied until the current in the galvanometer \(G\) is zero; the bridge is then said to be balanced. (a) Show that...

  • This circuit is a Wheatstone Bridge. It is used for numerous scientific and engineering applications. Here,...

    This circuit is a Wheatstone Bridge. It is used for numerous scientific and engineering applications. Here, R1 = 20 kΩ, R2 = 10 kΩ, R3 = 5 kΩ, and R4 = 10 kΩ. ε = 5 V. a) Determine the Thevenin equivalent resistance RTH between points A and B. (Hint: when we remove the power supply and short the circuit, the wire connecting the “top” and “bottom” of the bridge can then be drawn to go right down the center...

  • Question 9 Given the Wheatstone bridge circuit in the figure below, determine VthA in Voits M...

    Question 9 Given the Wheatstone bridge circuit in the figure below, determine VthA in Voits M the Thevenin voltage source for the branch A The unit must be given with along with the nuneric answer Vs 10 V R1 100 Ohm R2 275 Ohm R3 200 Ohm R4 150 Ohm RL = 956 Ohm R, R. Δ Moving to another question wil save this response

  • Part II: Wheatstone Bridge Procedure: 1)   Before connecting the circuit, use the multi...

    Part II: Wheatstone Bridge Procedure: 1)   Before connecting the circuit, use the multimeter as an ohmeter to verify the values of all the resistances. Use the voltmeter measure the terminal voltage of the battery. Use these measured values in all calculations.             R1 = 100 Ω             R2 = 200 Ω             R3 = 300 Ω             R4 = 200 Ω             R5 = 20 Ω             ξ = 6 V       Connect the circuit shown using the multimeter as the ammeter. 2)   Use a voltmeter to...
