Homework Answers

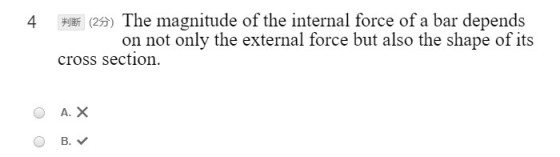

Magnitude of internal force does not depend on shape of cross section it depends on external force and will be equal to external force whether any shape
So answer A
