Problem Set #1-Chapters 2 and 3
Problem Set #1-Chapters 2 and 3

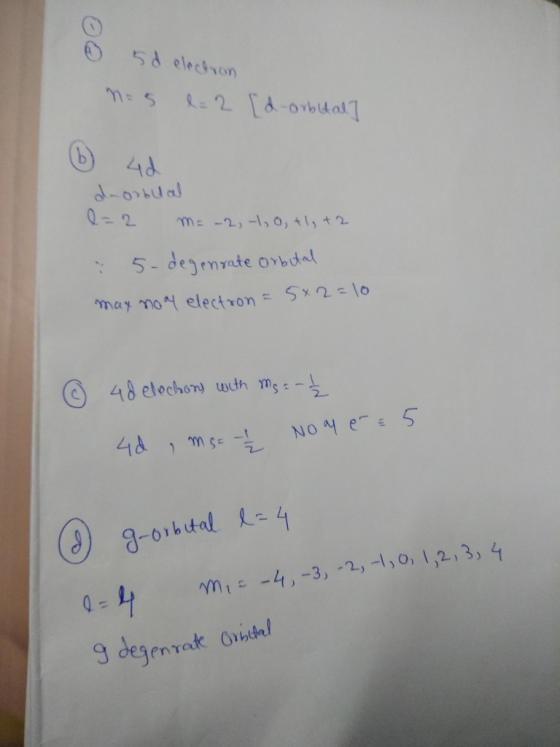

1)
a. Determine the values of quantum numbers I and n for a 5d electron.
b. Determine the maximum possible number of 4d electrons an atom can have.
c. Determine the maximum possible number of 4d electrons with m, =-%.
d. Determine the value of I for the g orbitals. List the possible values of mi for these orbitals.

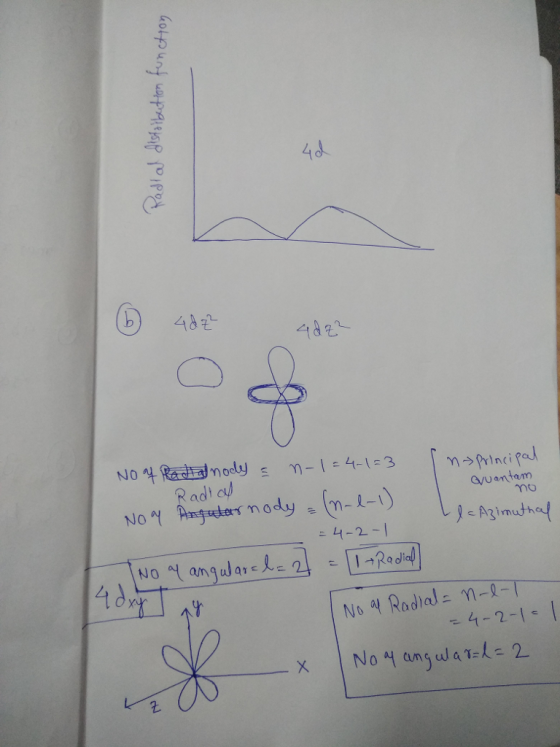

2) Consider the 4d orbitals.
a. Draw a Radial Probability Furiction for the 4d orbitals.
b. Draw the 4dz orbital and the 4dxy as a clear cross-section. Your answer should include how many radial and angular nodes there are for each orbital. Hint: draw the nodes before attempting to draw the lobes of the orbitals. This will help.
