Question

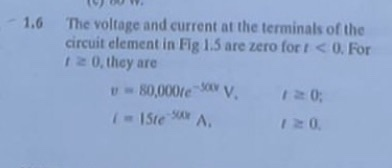

1.6 1 The voltage and current at the terminals of the circuit element in Fig 1.5 are zero fort <0. For 0. they are 80,000esov
a) Find the time when the power delivered to the circuit element is maximum. b) Find the maximum value of power. c) Find the
0 0
Add a comment Improve this question Transcribed image text
Answer #1

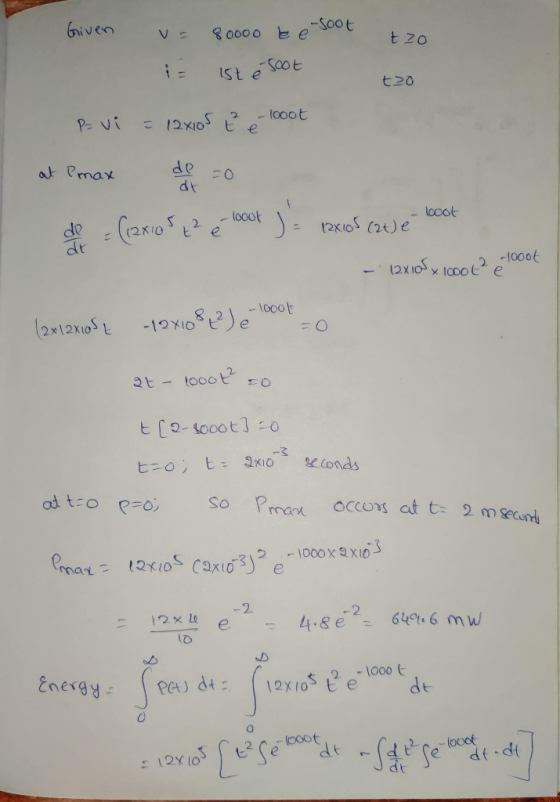

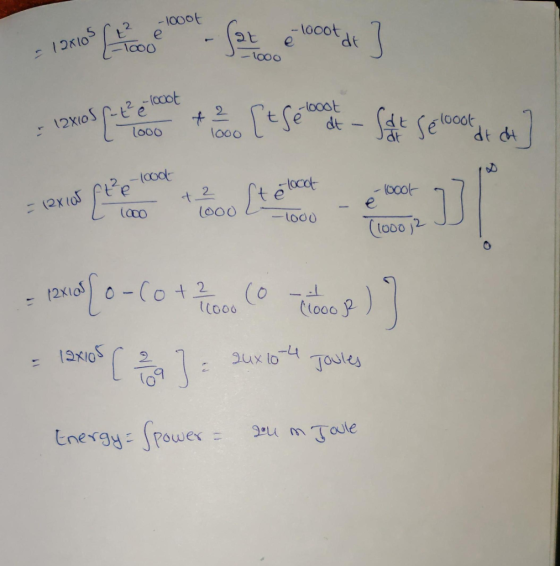

tzo to Given v= 80000 te soot i ist é soot P- vi = 12x105 te looot at Pmax de zor dt 1000t de = (12x10 t² elooot ) = 12x105 c10oot - faz clocotde] - 10oo 13610( = 12xiOS E + 2 0 [the books - Sales Se look at del -1000 - 1000 DXC). -1000 = 128108 [o-C

Add a comment
Know the answer?
Add Answer to:
1.6 1 The voltage and current at the terminals of the circuit element in Fig 1.5...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Problem 1.20 The voltage and current at the terminals of the circuit element in (Figure 1)...

    Problem 1.20 The voltage and current at the terminals of the circuit element in (Figure 1) are zero fort < 0. u= (1500t + 1)e 750t V t> 0; i= 70e 7500 mA, t> 0. Part A where t is in seconds Find the time (in milliseconds) when the power delivered to the circuit element is maximum. Express your answer using three significant figures. t = 0 ms Submit Previous Answers Correct Part B Find the maximum value of p...

  • Problem 1.20 The voltage and current at the terminals of the circuit element in the figure...

    Problem 1.20 The voltage and current at the terminals of the circuit element in the figure are zero for t < 0. Fort > Othey are v = 70e - 1600+ - 70e 400+ V. i = 6.0e 1600 - 6.0e 400mA. (Figure 1) Part A Find the power at t = 625 us. Express your answer to two significant figures and include the appropriate units. p= Value Units Submit Request Answer Figure < 1 of 1 > Part B...

  • The voltage and current at the terminals of the circuit element in Fig

    The voltage and current at the terminals of the circuit element in Fig. \(1.5\) are zero for \(t<0\). For \(t \geq\) 0 they are$$ \begin{array}{l} v=50 e^{-1600 t}-50 e^{-400 t} \mathrm{~V} \\ i=5 e^{-1600 t}-5 e^{-400 t} \mathrm{~mA} . \end{array} $$a) Find the power at \(t=625 \mu \mathrm{s}\).b) How much energy is delivered to the circuit element between 0 and 625 \mus.?c) Find the total energy delivered to the element.

  • The voltage and current at the terminals of the circuit element in (Figure 1) are zero...

    The voltage and current at the terminals of the circuit element in (Figure 1) are zero for t<0. For t≥0 they are v=(3200t+4.2)e−1000tV,i=(160t+0.16)e−1000tA, where t is in seconds. Find the total energy delivered to the element in microjoules.

  • (2) The current at the terminals of an ideal basic circuit element is given by: 0...

    (2) The current at the terminals of an ideal basic circuit element is given by: 0 t<o (5sin (2t - 1/3) otherwise i = {ssin C) entering the element at its upper terminal at t = 0.5s. Calculate the total charge (in (3%)

  • Part A The voltage and current at the terminals of the circuit element in the figure...

    Part A The voltage and current at the terminals of the circuit element in the figure are zero for t0. For t0 they v75e-1600t i 7.0e-1600r 75e-00t v Find the power at t 650 AS Express your answer to two significant figures and include the appropriate units. 1600 7.0e-400mA. (Figure1 Value Units Submit Part B How much energy is delivered to the circuit element between 0 and 650 s? Express your answer to two significant figures and include the appropriate...

  • Problem: The current in and the voltage across a 5 Hinductor are known to be zero...

    Problem: The current in and the voltage across a 5 Hinductor are known to be zero fort <= 0. The voltage across the inductor is given by the graph in fort >= 0. A. Write the expressions that describe the current i(t) in piece-wise linear representation in suitable intervals. Find the current in the inductor at t2 s. B. Derive the expressions for the inductor power and energy. Use the passive sign convention. Sketch the current, power and energy waveform...

  • 3. (30% ) The voltage and current at the terminals of a load circuit are given...

    3. (30% ) The voltage and current at the terminals of a load circuit are given by: )=1202 sin(ar) V i ()=812 sin(ar-60)+6/2 sin(Bax -120) A (V) and (A). (a) Find (b) Find the real (average) power P delivered to the load. (c) The distortion factor of the current waveform. (e) Find the displacement power factor DPF for this circuit. (f) Find the power factor of the load. (g) Is the load linear? 3. (30% ) The voltage and current...

  • The figure below shows the current through and the voltage across an element. (a) Sketch the...

    The figure below shows the current through and the voltage across an element. (a) Sketch the power delivered to the element fort > 0. (b) Find the total energy absorbed by the element for the period of 0 4s. i (mA) 60 4 t(S) v (V) 0 4 t (s)

  • 1S2 IV 1S2 Find Thevenin's equivalent at the terminals a-b for the circuit shown in Fig....

    1S2 IV 1S2 Find Thevenin's equivalent at the terminals a-b for the circuit shown in Fig. 1.31. Ans: Rth = 1.5 Ω, Vth-1 V. If a resistor is connected to terminals a-b of the circuit shown in Fig. 1.31, what value should it have for maximum power transfer to it? What is the maximum power?
