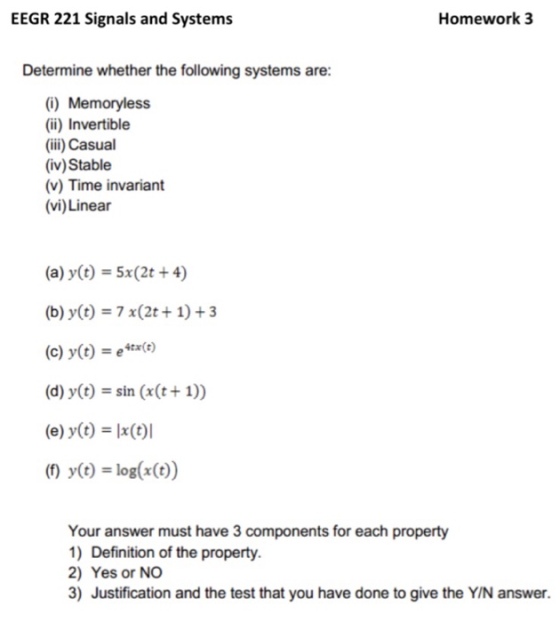

Signal system question. EEGR 221 Signals and Systems Homework 3 Determine whether the following systems are...

Question

Question

Signal system question.

engineering Electrical-Engineering

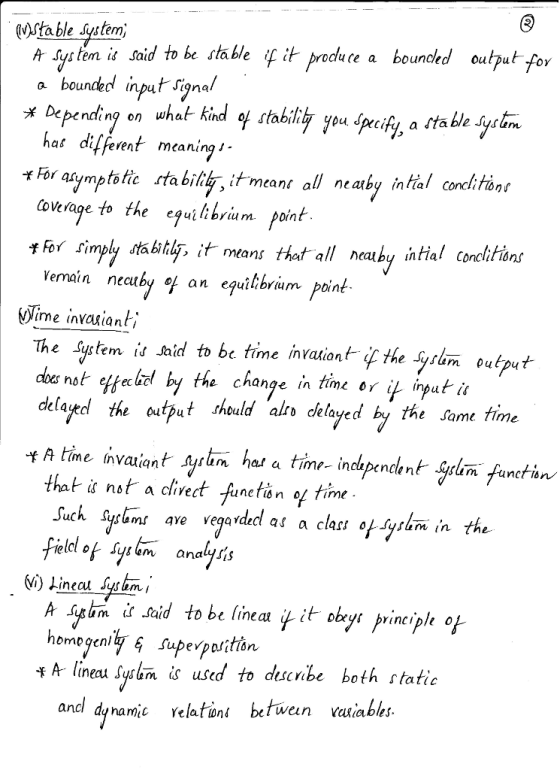

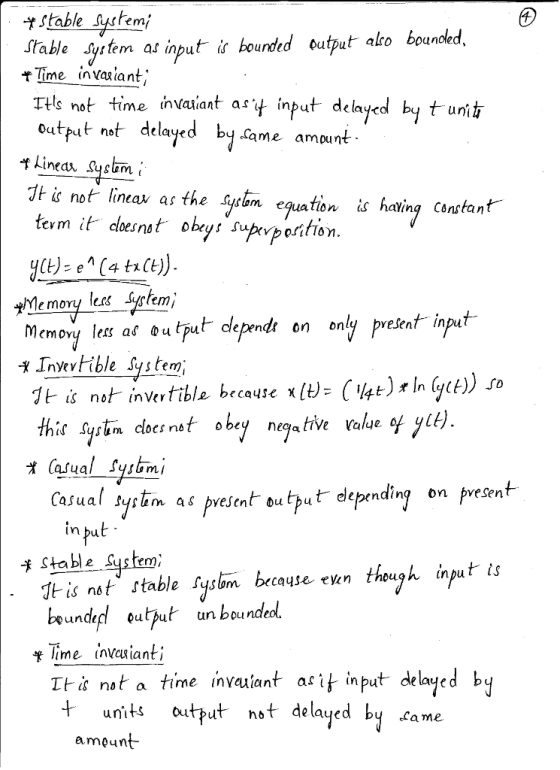

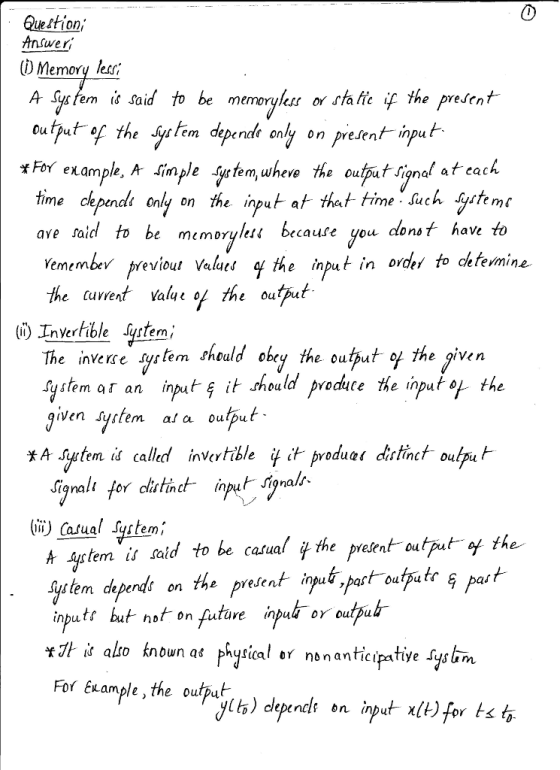

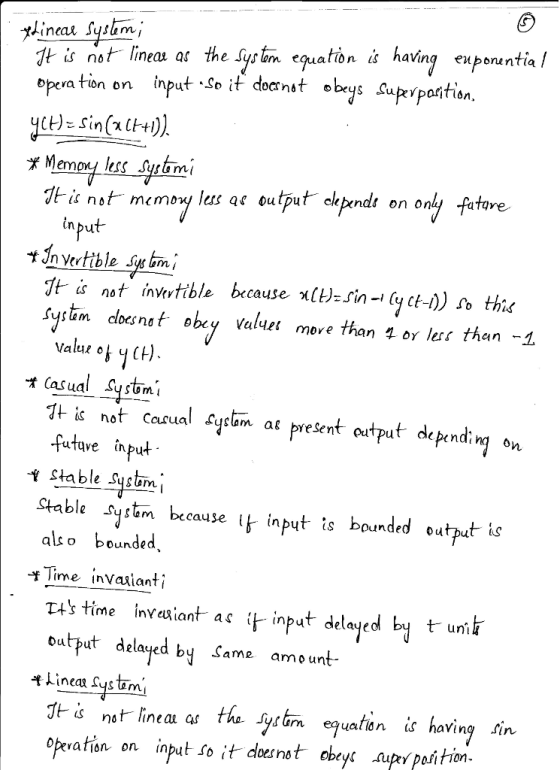

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

signals and systems

Indicate whether the following systems are causal, invertible, linear, memoryless,and (A system may have morethan one of these properties.) Justify your answer.y(t) = x(t−2)+x(2−t) (causal, invertible, linear , memoryless, time invariant )
For each of the following systems, determine which of the above properties hold. 5. General properties...

For each of the following systems, determine which of the above properties hold. 5. General properties of systems. A system may or may not be: (a) Memoryless (b) Time Invariant (c) Linear (d) Causal (e) Stable For each of the following systems, determine which of the above properties hold. (a) y(t)sin(2t)x(t) { 0, x(t)2t 3) t20 t <0 (b) y(t) = (c) yn3[n ] -n-5] x[n], 0, n 1 (d) yn 0 n= n2, n< -1 5. General properties of...
Problem 2. Decide if the following systems are linear, time-varying, causal, and have memory. The signals...

Problem 2. Decide if the following systems are linear, time-varying, causal, and have memory. The signals r[n] or r(t) are the input, and the signals y[n] or y(t) are the output Put Y for Yes, and N for No. No justification is needed. Linear? Time-Invariant?Causal?Has Memory? System y(t) = cos[r(t)] y(t) = 2t-x(t + 1) y(t) = r(3) 2 | 6 | y[n] = x[n] + x[n-1] + 1

6. Consider the system properties in the top row. Finish filling out the following table with...

6. Consider the system properties in the top row. Finish filling out the following table with YES or NO to indicate whether each system has the property or not. Do not answer the shaded boxes. Signal y(t),y[n] |Memoryless | Linear | lime- . | Causal | Invertible Invariant Stable a) (3+ cost)x (t) b) x(4) e x(t) dt
a = 3 signals and systems 1) [10 pts. Let a system be defined as ta...

a = 3 signals and systems 1) [10 pts. Let a system be defined as ta y(t) x(31 - 2a)dt 2a Is this system b) No b) No b) No vii) memoryless? a) Yes viii) Linear? a) Yes ix) Time invariant? a) Yes x) Causal? a) Yes xi) BIBO stable? a) Yes 2) [5 pts. What is the impulse response h(t)? 3) [10 pts.] Let a signal in s domain b) No b) No 2 Y(S) Sa What is the...
9. Determine whether the following systems are invertible. If so, find the inverse. If not, find...

9. Determine whether the following systems are invertible. If so, find the inverse. If not, find 2 input signals that produce the same output. (a) y)-r (b) yn]-ewl, where a is a real number (c) yt)-vx(t) for real-valued signals x(t) (d) yIn] xIn] (complex conjugate) 10. In most of the book, we will be discussing ways to analyze linear time-invariant (LTI) systems. As we will explore in much more detail later, the response of an LTI system to a particular...

For each of the following systems, determine whether the system is (1) stable

For each of the following systems, determine whether the system is (1) stable, (2) causel, (3) linear, (4) time invariant, and (5) memoryless.
3. Determine whether or not each of the following signals is periodic. If a signal is...

3. Determine whether or not each of the following signals is periodic. If a signal is periodic fundamental period x(t)=cos(2t+4 Determine whether the following signals are Energy signals or Power signals a. 4.
1) Linearity: In order for a system to be linear it must satisfy the following equation: In other...

need solution and code for this signal and system problem 1) Linearity: In order for a system to be linear it must satisfy the following equation: In other words, the response of a linear system to an input that is a linear combination of two signals is the linear combination of the responses of the system to each one of these signals. Let xi)- u(t) -u(t-1) and x2t) u- u(t-2) be input signals to the systems described by the i/o...

i need all questions quickly. - Answer the following questions in details. 1) Determine whether the...

i need all questions quickly. - Answer the following questions in details. 1) Determine whether the following signals are periodic or non-periodic. If they are periodic, find the fundamental period. a) b) te=cos(+1) 2) Find the even and odd parts of the following signals: x(t) = (1 + r) cos (104) X(t) = ejt 3) A discrete-time signal [n] is shown below. Sketch and label each of the following signals. (a) xn-21 (b) x[21] (c)--) (d) x[-n21 a) 4) Determine...
