draw the shear and moment diagram for the beam set left load to 12kn and keep...

Question

Question

draw the shear and moment diagram for the beam

set left load to 12kn and keep the right one to 10 kn

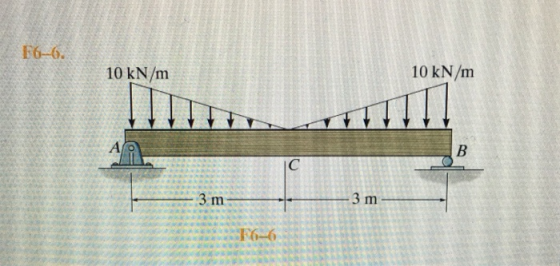

10 kN/m 10 kN/m

engineering Mechanical-Engineering

Answer 1

Answer #1

I assume you meant the numbers to be 12 kN/m at left and 10 kN/m at right.

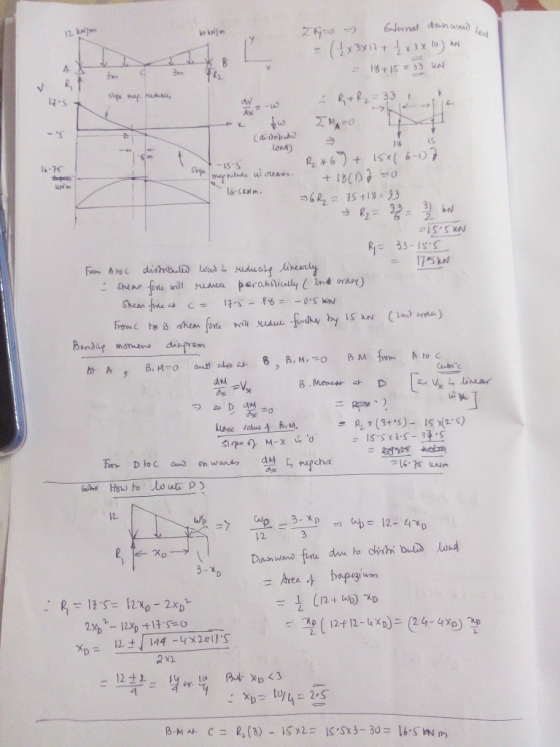

to k 1a-S 1% Lond) is 33-ISs dM 12. 2 x2.
