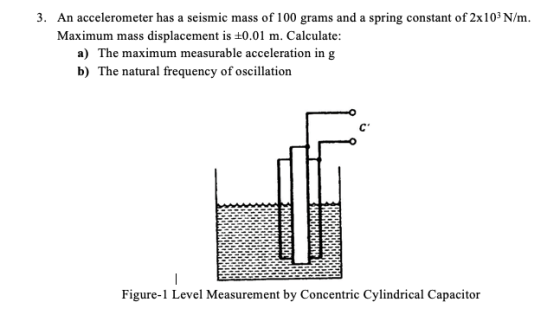

An accelerometer has a seismic mass of 100 grams and a spring constant of 2x103 N/m Maximum mass displacement is +0.01 m. Calculate: 3. a) The maximum measurable acceleration in g b) The natural frequency of oscillation Figure-1 Level Measurement by Concentric Cylindrical Capacitor

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

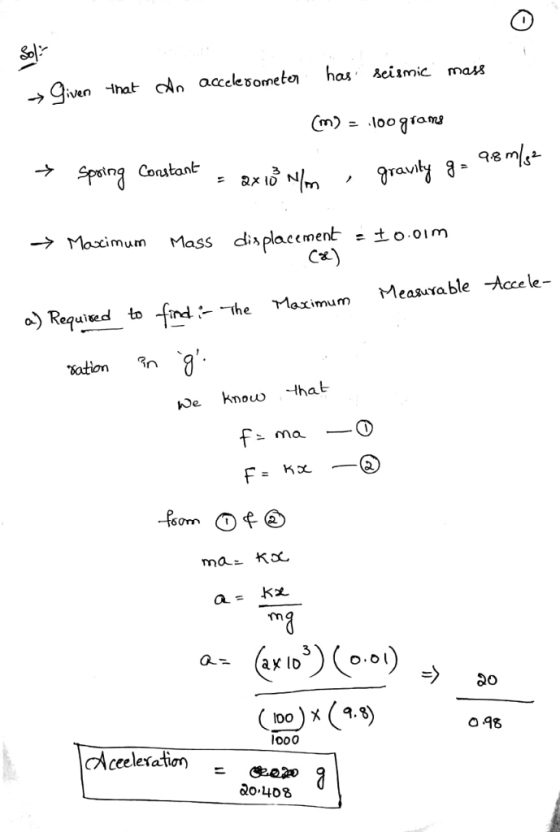

given that accelesomete has s eismic mass Spoing Constant- sms ravi се) Mtoele- easuxable maximum 。) Requise-to-fand-he Sation e know that Pom@ o 98 looo cAccelesatian . 2o-408

0 0
