Question

Question

The wheel rolls without slipping, where its

angular velocity = 1k rad/s

angular acceleration = 2k rad/s^2

Find the acceleration vector of point A, a_A VIE rolls without 2m slipping lll

engineering Mechanical-Engineering

Answer 1

Answer #1

acceleration at point A is given by

a = 2r* alpha Î - r * (omega)² j

The solution is shown below

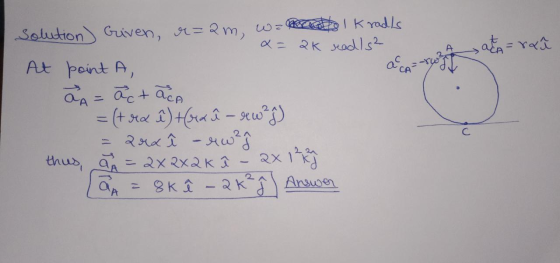

a@A==r0ys AEA = rac Solution) Given, r=am, wameruds I kradls x = ak reads? At point A a = ăctace = (t rex î) terxê - rew? =

Answer 2

Similar Homework Help Questions

The wheel rolls without slipping and has the angular velocity of 10 [rad/s] in the clockwise...

The wheel rolls without slipping and has the angular velocity of 10 [rad/s] in the clockwise direction. The acceleration of point Gis 1.5 [m/s2). 0=10 [rad/s] 0.5 m B ag =1.5 [m/s?] х A Copyright © 2016 Pearson Education, Inc. All Rights Reserved (1) Determine the velocity of point A. (2) Determine the velocity of point G. (3) Determine the velocity vector of point B. (4) Determine the angular acceleration of the wheel. (5) Determine the acceleration vector of point...
The wheel rolls without slipping with an angular velocity of 10 rad/s. Determine the magnitude of...

The wheel rolls without slipping with an angular velocity of 10 rad/s. Determine the magnitude of the velocity of point B at the instant shown in Figure. B A
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of t...

1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of the disk. The length of the link is 0.5 m and the radius of the wheel is 0.25 m. Find the velocity of point B when A is 0.25m above the ground. 10 points a) VA-W /o o.25 ,775 Find the acceleration...

Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It...

Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It starts at 6 = 3 rad/s when 0 = 0 and is given an angular acceleration a = (0.50) rad/s2, where Ois in radians. When the wheel has traveled 2 revolutions, determine: a. The angular velocity of the wheel b. The velocity of point B (center of wheel) C. The velocity of point C (top of wheel) d. The angular acceleration e. The acceleration...
Problem 1 (20 POINTS) 0.6 m B The wheel rolls without slipping with a constant 10...

Problem 1 (20 POINTS) 0.6 m B The wheel rolls without slipping with a constant 10 rad/s angular velocity. (a) mark the instantaneous center of zero velocity on the picture (b) what is the angular acceleration of the wheel (c) draw the velocity vector of the center of the wheel and show its direction (d) calculate the velocity of the center of the wheel (e) calculate the acceleration of the center of the wheel (f) draw the velocity vector at...
disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and...

disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and angular velocity of w 32 rad/s at the instant shown. Assume point A lies on the periphery of the disk, 150 mm from C. (Figure 1) Figure 1 of 1 500 mm 150 mm 400 mm

a bicycle wheel rolls without slipping with velocity 18 m/s at the center of the wheel...

a bicycle wheel rolls without slipping with velocity 18 m/s at the center of the wheel what would be the magnitude of velocity in m/s at the point in contact with the ground?
Problem 4 The wheel shown rolls without sliding a) Determine the angular velocity (rad/s) b) Determine...

Problem 4 The wheel shown rolls without sliding a) Determine the angular velocity (rad/s) b) Determine the velocity of point D (m/s) v = 1.2 m/s 15 cm Answers a) π= 8 rad/s b) = 1.68 m/s 245。
3. At t-0, angular velocity of a wheel is 24 rad/s, and its angular acceleration is...

3. At t-0, angular velocity of a wheel is 24 rad/s, and its angular acceleration is 30 rad/s. (i) How much angle does the wheel turn through after 2 seconds of rotation? (ii) At t-2 sec., the wheel suddenly begins to undergo angular deceleration (negative angular acceleration) of 8.16 rad/s'. What additional time from t -2 secs, does it take the wheel to come to a stop? Hint: Use appropriate rotational kinematic equation to answer different parts of the question....

6:29 a bicycle wheel rolls without slipping with velocity 18 m/s at the center of the...

6:29 a bicycle wheel rolls without slipping with velocity 18 m/s at the center of the wheel what would be the magnitude of velocity in m/s at the point in contact with the ground?
