Question No. 12: Draw symbolic depictions of AND, OR, and NOT logic- gates with two inputs for AND and OR and one input for NOT.
0 0
Add a comment Improve this question Transcribed image text
Answer #1

Below are the depictions of AND, OR and NOT gate with descripton along side

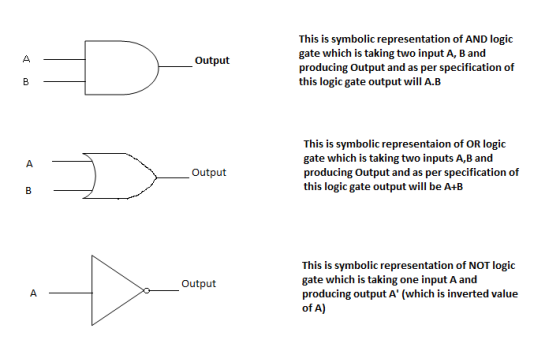

This is symbolic representation of AND logic gate which is taking two input A, B and producing Output and as per specificatio

Add a comment
Know the answer?
Add Answer to:
Question No. 12: Draw symbolic depictions of AND, OR, and NOT logic- gates with two inputs...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • a) Two different dynamic logic gates are shown below each having four inputs. If all transistors...

    a) Two different dynamic logic gates are shown below each having four inputs. If all transistors in both of these two logic gates have the same size, which logic gate is faster the one with the A, B, C, D inputs or the one with the In1, In2, In3, In4 inputs AND WHY? ANSWER: VDD A-(3-(0-[04C Out Out JJ 1114 b) If in the above two different logic gates all transistors are properly sized so both gates have the same...

  • [10] Question 2: Fig. 1 shows a logic function, implemented by NOR gates. Please answer the...

    [10] Question 2: Fig. 1 shows a logic function, implemented by NOR gates. Please answer the following X1 X2 De X3 Fig. 1: Logic function. questions: 1) What is the logic function of the output in the form of product-of-sum? 2) Based on the derived logic function, please sketch transistor level compound gates. Assume both truth and complementary inputs are provided. 3) In many cases, more than 3 inputs may be required to carry out a logic function, e.g. 3-input...

  • Design a Digital combinational logic circuit using logic gates that has 4 inputs and 2 outputs....

    Design a Digital combinational logic circuit using logic gates that has 4 inputs and 2 outputs. The circuit: i. Turns on a Red LED if its input is a multiple of 2. (i.e., 0, 2, 4, 6, 8 …..) ii. Turns on a Green LED if its input is a multiple of 3. (i.e. 0, 3, 6, 9) - Draw the truth table for the circuit, bearing in mind that this circuit has 4 inputs and 2 outputs, meaning your...

  • Draw a logic diagram using only two-input NOR gates to implement the following function. Show your...

    Draw a logic diagram using only two-input NOR gates to implement the following function. Show your work. You must use only NOR gates for this solution, no other gates. You may assume that the inverted inputs are available. Example: if you need A’ as a circuit input, just write A’ as an input name. (15 points) F(A, B, C, D) = (A  B)’ (C  D) a. Show your work, using Boolean algebra to expand the function to its...

  • 1. Implement the four-input odd-parity function with AND and OR gates using bubbled inputs and outputs....

    1. Implement the four-input odd-parity function with AND and OR gates using bubbled inputs and outputs. Note: Rather than draw inverters explicitly, a common practice is to add “bubbles” to the inputs or outputs of a gate to cause the logic value on that input line or output line to be inverted.

  • Digital Logic: Draw the logic circuit for A + C' using the least number of gates...

    Digital Logic: Draw the logic circuit for A + C' using the least number of gates of your choosing. Draw the logic circuit for A'B + C using the least number of gates of your choosing. Each circuit should be drawn separately.

  • Derive the logic gates for a 2-bit Arithmetic Logic Unit (ALU) with four micro-operations: 1) Complete...

    Derive the logic gates for a 2-bit Arithmetic Logic Unit (ALU) with four micro-operations: 1) Complete the table below by showing the select input bits and the necessary groupings. (5 points) Select Inputs Micro-Operation Description F = A-B-1 F = A + B +1 F = AVB F = ashl A Subtraction with borrow Addition with carry Logic OR Arithmetic shift left 2) Draw a detailed logic circuit of the ALU's arithmetic unit. (10 points) 3) Draw a detailed logic...

  • Draw a simple scoreboard logic circuit using logic gates such as AND, OR, and flip flops...

    Draw a simple scoreboard logic circuit using logic gates such as AND, OR, and flip flops in order to maintain a score between two different teams. Score increments by 1, and does not have a specific limit to win. For extra credit, implement a time counter for the game.

  • Consider the following Quad Exclusive OR/NOR logic gates, IC model SN74S135, from Synetics. Pick one set...

    Consider the following Quad Exclusive OR/NOR logic gates, IC model SN74S135, from Synetics. Pick one set of the gates (two XOR gates) with two input pins (A and B) and one output pin Y. The clock is collecting to the input pin C. Answer the following questions: 15 A 3] Y 12 11 A GND B (a) Use the dynamic logic design to implement the circuit above. (2000) (b) Use the Domino CMOS logic design to implement the circuit above....

  • just put circle around the correct answer Chapter 3 Introduction to Logic Gates Questions 1. How...

    just put circle around the correct answer Chapter 3 Introduction to Logic Gates Questions 1. How many 2-input AND gate required to construct a 5-input AND gate? a) 2 b) 3 d) 4 c) 5 e) noпe Which is better for a 4-input OR gate. The connection of A or B, Fig(13), why? 2. a) A b) B 3. If only 2-input OR gates are available, what is minimum gate level possible to implement an 8-input OR gate 2 a)...
