A 9.8 m3 rigid tank contains steam at 220°C.

Pressure in tank = 2320 kPa

Quality of saturated mixture = 0.0269


A 9.8 m3 rigid tank contains steam at 220°C. One-third of the volume is in the liquid phase and the rest is in the vapor form.



Determine the density of the mixture. (Round the final answer to one decimal place.) (You must provide an answer before moving on to the next part.)

The saturated water-temperature table (in Sl units) is given below.


The density of the mixture is _______ kg/m3

engineering   Mechanical-Engineering
3 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

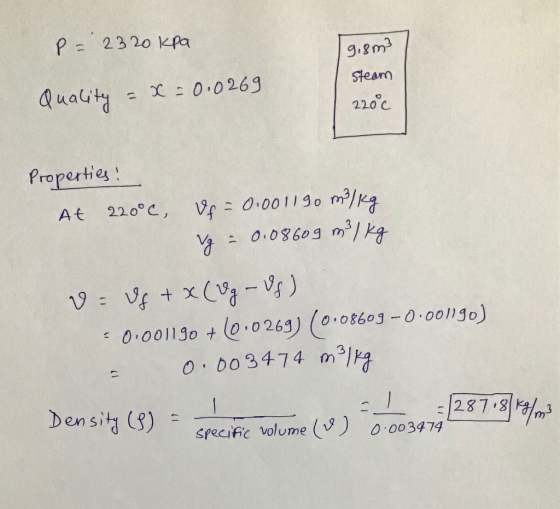

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 9.8 m3 rigid tank contains steam at 220°C.
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 1.8-m3 rigid tank contains steam at 220°С

    A 1.8-m3 rigid tank contains steam at 220°С. One-third of the volume is in the liquid phase and the rest is in the vapor form. Determine (a) the pressure of the steam, (b) the quality of the saturated mixture, and (c) the density of the mixture.

  • NEED HELP A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a...

    NEED HELP A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve is closed and it is found that p2-5 bars (500 kPa). Find (a) the state of the...

  • 6.32. A rigid vessel contains 0.014 m3 of saturated-vapor steam in equilibrium with 0.021 m of...

    6.32. A rigid vessel contains 0.014 m3 of saturated-vapor steam in equilibrium with 0.021 m of saturated-liquid water at 100°C. Heat is transferred to the vessel until one phase just disappears, and a single phase remains. Which phase (liquid or vapor) remains, ard what are its temperature and pressure? How much hieat is transferred in the process?

  • SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated...

    SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line containing steam at a pressure of pL- 10 bars (1000 kPa) and a temperature of TL 500°C. The valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve...

  • A rigid tank having a volume of 0.1 m3 initially contains water as a two-phase liquid-vapor...

    A rigid tank having a volume of 0.1 m3 initially contains water as a two-phase liquid-vapor mixture at 1 bar and a quality of 1%. The water is heated in two stages: Stage 1: Constant-volume heating until the pressure is 20 bar. (treat as closed system) Stage 2: Continued heating while saturated water vapor is slowly withdrawn from the tank at a constant pressure of 20 bar. (Note: Use transient analysis with all the water leaving having a quality of...

  • A well-insulated rigid tank contains 2 kg of a saturated liquid-vapor mixture of water at 100 kPa

    A well-insulated rigid tank contains 2 kg of a saturated liquid-vapor mixture of water at 100 kPa. Initially, three-quarters of the mass is in the liquid phase. An electric resistance heater placed in the tank is now turned on and kept on until all the liquid in the tank is vaporized. Determine the entropy change of the steam during this process. Answer: 8.10 kJ/K Analysis From the steam tables (Tables A-4 through A-6)

  • A rigid tank of 0.5 m^3 volume contains wet steam at 80 C and 1% quality....

    A rigid tank of 0.5 m^3 volume contains wet steam at 80 C and 1% quality. The tank is then heated until the water inside becomes saturated vapor. Determine the final temperature and pressure within the tank. Answer: 271 C, 5.588MPa.

  • In a well-insulated rigid tank which contains 2 kg of a saturated liquid-vapor mixture of water at 200 kPa

    In a well-insulated rigid tank which contains 2 kg of a saturated liquid-vapor mixture of water at 200 kPa, 40% of the mass is in the liquid phase. A heater is providing heat to the content of the tank so that all liquid phase converts to vapor phase. Calculate the entropy change of water in this process.

  • rigid tank

    The rigid tank illustrated in fig P4-124 has a volume of 0.06m^3 and initially contains a two-phase liquid -vapor mixture of H2O at a pressure of 15 bar and a qualityof 20%. As the tank contents are heated, a pressure-regulating valve keeps the pressure constant in the tank by allowing saturated vapor to escape. Neglecting kineticand potential energy effects:(a) Determine the total mass in the tank, in kg, and the amount of the heat transfer, in KJ, if the heating...

  • A rigid tank contains a two-phase mixture of water and steam at a quality of 0.65...

    A rigid tank contains a two-phase mixture of water and steam at a quality of 0.65 and a pressure of 20 psia. The mass of the mixture is 0.26 lbm. The mixture is heated until the final quality is 0.95. Compute the final pressure and the heat added. Please show formulas. This will help tremendously.
