Add Answer to:

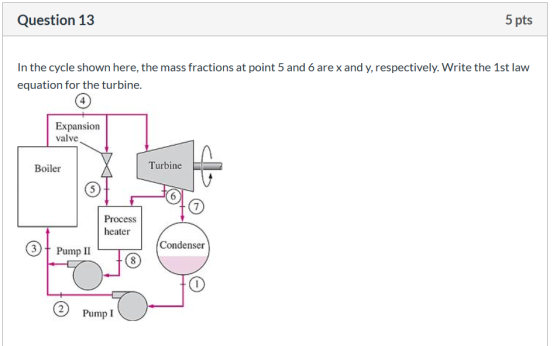

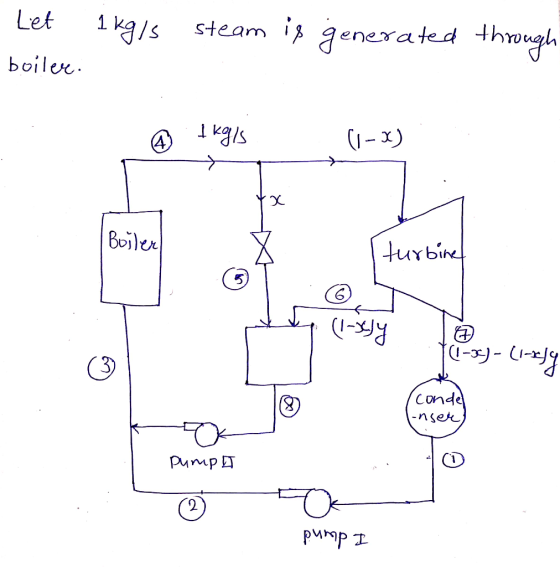

Question 13 5 pts In the cycle shown here, the mass fractions at point 5 and...
10 A cogeneration steam power system is shown below. When maximum process heating is required, the...
10 A cogeneration steam power system is shown below. When maximum process heating is required, the condition is * S (1 Point) Turbine Expansion valve DE Boiler Process heater Condenser 8 Mixing chamber Pump II Pump 1 valve 6 5 Boiler Process heater Condenser 3 8 Mixing chamber Pump II 2 Pump 1 m5 = m6 = 0 m6 = m7 = 0 m7 = 0 None of the above
10-48 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a...
10-48 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed feedwater heater as shown in the figure. The plant maintains the turbine inlet at 3000 kPa and 350°C; and operates the condenser at 20 kPa. Steam is extracted at 1000 kPa to serve the closed feedwater heater, which discharges into the condenser after being throttled to condenser pressure. Calculate the work pro- duced by the turbine, the work consumed by the pump, and...
Water is the working fluid in an ideal regenerative Rankine cycle with one open feed water heater, Figure 2. Upstream of the high pressure turbine superheated vapour with a mass flow rate of 90 kg/s...
Water is the working fluid in an ideal regenerative Rankine cycle with one open feed water heater, Figure 2. Upstream of the high pressure turbine superheated vapour with a mass flow rate of 90 kg/s entres the first-stage turbine at a pressure of 14 MPa Each turbine stage has an isentropic efficiency of 90%. The temperature of the inlet vapour is 520°C. The steam expands through the first-stage turbine to a pressure of 0.9MPa where some of the steam is...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
Consider a modern extra-supercritical pressure steam power plant that operates Rankine cycle with one open feedwater...
Consider a modern extra-supercritical pressure steam power plant that operates Rankine cycle with one open feedwater heater, one closed feedwater heater, and one reheater, as shown below. Steam enters the high-pressure turbine at 32 MPa and 700 °C and is condensed in the condenser at a pressure of 10 kPa. Steam exits the high-pressure turbine at 4 MPa and is routed into a reheater (inside the boiler) to be reheated to 640 °C. Steam at P-8 MPa is extracted from...
Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed...
Consider a steam power plant that operates on the ideal
regenerative Rankine cycle with a closed feedwater heater as shown
in the figure. The plant maintains the turbine inlet at 3000 kPa
and 3508C; and operates the condenser at 20 kPa. Steam is extracted
at 1000 kPa to serve the closed feedwater heater, which discharges
into the condenser after being throttled to condenser pressure.
Calculate the work produced by the turbine, the work consumed by
the pump, and the heat...
Question 3: Rankine Steam Power Cycle with a Closed Feedwater Heater Turbine TVnet Boiler 6 1-y...
Question 3: Rankine Steam Power Cycle with a Closed Feedwater Heater Turbine TVnet Boiler 6 1-y Condenser Qout Pump Closed Feedwater Heater 7 1 W, Trap Draw this process on a Ts diagram.
3) For the regenerative cycle shown in the figure determine per kg of steam: a. Draw...
3) For the regenerative cycle shown in the figure determine per kg of steam: a. Draw T-s diagram showing the cycle points b. The mass flux of steam extracted from the turbine c. The cycle thermal efficiency Boiler 10 MPa 600 °C Turbine Turbine € 20 MW - 20 MW 1000 kPa Closed focdwater heater 10 kPa a Condenser Condensate pump
3. (40 pts) A steam power plant based on the Rankine cycle, shown in the below,...
3. (40 pts) A steam power plant based on the Rankine cycle, shown in the below, operates to develop net cycle power. Saturated vapor at 8 bar enters the turbine where it expands to the condenser pressure of 1 bar. Water liquid exits the condenser 30 °C and 1 bar and it is pumped to the boiler pressure of 8 bar. Isentropic efficiencies of the turbine and pump are 80% and 60%. Assume kinetic and potential energies are negligible at...
please show all work with full steps. thanks 1/4 Thermo I-Take-Home Final Summer 2019 Thermodynamics I:...
please show all work with full steps.
thanks
1/4 Thermo I-Take-Home Final Summer 2019 Thermodynamics I: Final, Summer 2019 (7/30, Tuesday) (Total 200 points) Name: Consider a modern extra-supercritical pressure steam power plant that operates on a reheat-regenerative Rankine cycle with one open feedwater heater, one closed feedwater heater, and one reheater, as shown below. Steam enters the high-pressure turbine at 32 MPa and 700 °C and is condensed in the condenser at a pressure of 10 kPa. Steam exits...
10 A cogeneration steam power system is shown below. When maximum process heating is required, the condition is * S (1 Point) Turbine Expansion valve DE Boiler Process heater Condenser 8 Mixing chamber Pump II Pump 1 valve 6 5 Boiler Process heater Condenser 3 8 Mixing chamber Pump II 2 Pump 1 m5 = m6 = 0 m6 = m7 = 0 m7 = 0 None of the above
10-48 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed feedwater heater as shown in the figure. The plant maintains the turbine inlet at 3000 kPa and 350°C; and operates the condenser at 20 kPa. Steam is extracted at 1000 kPa to serve the closed feedwater heater, which discharges into the condenser after being throttled to condenser pressure. Calculate the work pro- duced by the turbine, the work consumed by the pump, and...
Water is the working fluid in an ideal regenerative Rankine cycle with one open feed water heater, Figure 2. Upstream of the high pressure turbine superheated vapour with a mass flow rate of 90 kg/s entres the first-stage turbine at a pressure of 14 MPa Each turbine stage has an isentropic efficiency of 90%. The temperature of the inlet vapour is 520°C. The steam expands through the first-stage turbine to a pressure of 0.9MPa where some of the steam is...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
Consider a modern extra-supercritical pressure steam power plant that operates Rankine cycle with one open feedwater heater, one closed feedwater heater, and one reheater, as shown below. Steam enters the high-pressure turbine at 32 MPa and 700 °C and is condensed in the condenser at a pressure of 10 kPa. Steam exits the high-pressure turbine at 4 MPa and is routed into a reheater (inside the boiler) to be reheated to 640 °C. Steam at P-8 MPa is extracted from...
Consider a steam power plant that operates on the ideal
regenerative Rankine cycle with a closed feedwater heater as shown
in the figure. The plant maintains the turbine inlet at 3000 kPa
and 3508C; and operates the condenser at 20 kPa. Steam is extracted
at 1000 kPa to serve the closed feedwater heater, which discharges
into the condenser after being throttled to condenser pressure.
Calculate the work produced by the turbine, the work consumed by
the pump, and the heat...
Question 3: Rankine Steam Power Cycle with a Closed Feedwater Heater Turbine TVnet Boiler 6 1-y Condenser Qout Pump Closed Feedwater Heater 7 1 W, Trap Draw this process on a Ts diagram.
3) For the regenerative cycle shown in the figure determine per kg of steam: a. Draw T-s diagram showing the cycle points b. The mass flux of steam extracted from the turbine c. The cycle thermal efficiency Boiler 10 MPa 600 °C Turbine Turbine € 20 MW - 20 MW 1000 kPa Closed focdwater heater 10 kPa a Condenser Condensate pump
3. (40 pts) A steam power plant based on the Rankine cycle, shown in the below, operates to develop net cycle power. Saturated vapor at 8 bar enters the turbine where it expands to the condenser pressure of 1 bar. Water liquid exits the condenser 30 °C and 1 bar and it is pumped to the boiler pressure of 8 bar. Isentropic efficiencies of the turbine and pump are 80% and 60%. Assume kinetic and potential energies are negligible at...
please show all work with full steps.
thanks
1/4 Thermo I-Take-Home Final Summer 2019 Thermodynamics I: Final, Summer 2019 (7/30, Tuesday) (Total 200 points) Name: Consider a modern extra-supercritical pressure steam power plant that operates on a reheat-regenerative Rankine cycle with one open feedwater heater, one closed feedwater heater, and one reheater, as shown below. Steam enters the high-pressure turbine at 32 MPa and 700 °C and is condensed in the condenser at a pressure of 10 kPa. Steam exits...
