Q1. (a) Derive Bernoulli’s equation and state its limitations [5 marks] (b) A horizontal venturimeter with inlet diameter...

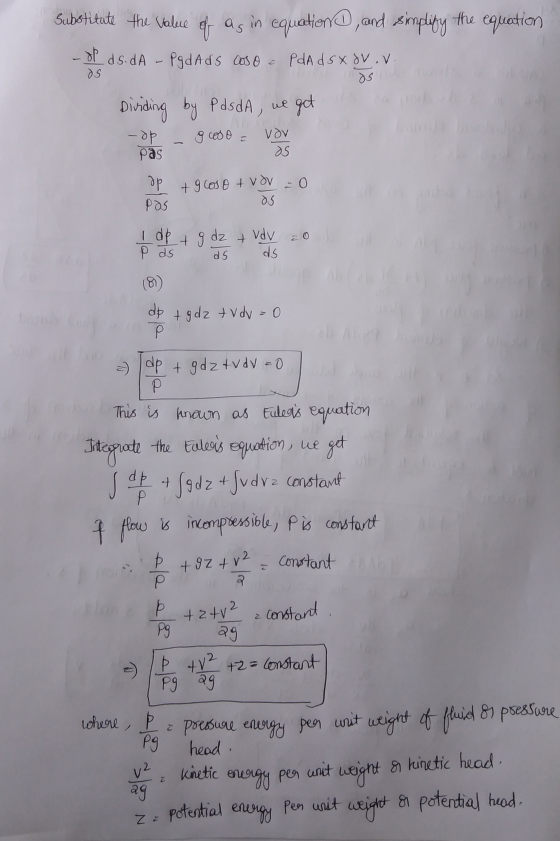

Q1. (a) Derive Bernoulli’s equation and state its limitations [5 marks]
(b) A horizontal venturimeter with inlet diameter 20cm and throat diameter 10cm is used

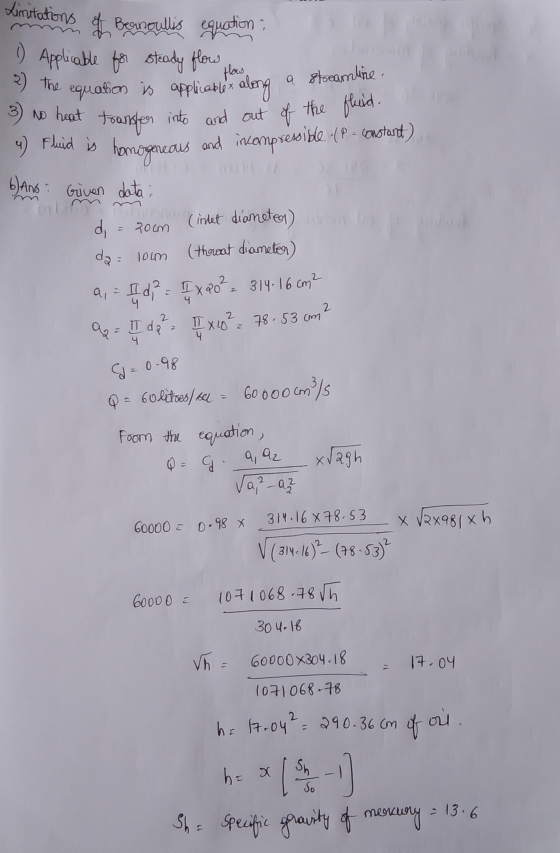

to measure the flow of oil of sp.gr 0.8. The discharge of oil through venturimeter is 60 litres/s. Find the reading of oil mercury differential manometer in meters. Take Cd = 0.98 and Sp. Gravity of mercury 13.6. [5 marks]
Homework Answers
Add Answer to:
Q1. (a) Derive Bernoulli’s
equation and state its limitations [5
marks]
(b) A horizontal
venturimeter with inlet diameter...
The inlet and throat diameter of horizontal venturimeter are 30cm and 10cm respectively, The liquid flowing...
The inlet and throat diameter of horizontal venturimeter are 30cm and 10cm respectively, The liquid flowing through meter is water and pressure intensity at inlet is 13.73 N/cm2 while the vacuum pressure head at the throat is 37 cm of mercury. Find the rate of flow in m3/s Take cd = 0.98
Ans. 6.29 ft3/s (B) 5./ A venturi meter with a diameter of 6 in at the...
Ans. 6.29 ft3/s
(B)
5./ A venturi meter with a diameter of 6 in at the oat is installed in an 18 in water main. A differential manometer gauge is partly filled with mercury (the re- mainder of the tube is filled with water) and connected to the meter at the throat and inlet. The mercury col- umn stands 15 in higher in one leg than in the other. Neglecting friction, what is the flow through the meter? The specific...
fluid Q1: A venture meter is fitted in a pipe of 30 cm diameter inclined at...
fluid
Q1: A venture meter is fitted in a pipe of 30 cm diameter inclined at 40° to the horizontal to measure the flow rate of petrol having a specific gravity of 0.8. The ratio of areas of main pipe and throat is 5 and the throat is at 1 m from the inlet along its length. The difference in manometer head is 40 mm of mercury. Assuming the coefficient of discharge as 0.96. Calculate the discharge through the venture...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe,...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe, as shown in Figure Q2.2. The pipe is 100 mm in diameter and contains an orifice plate with a throat diameter of 40 mm. The pressure drop across the orifice is measured on a U-tube manometer, containing mercury with a specific gravity 13.6. The difference in levels of the columns is measured as 45 mm. The coefficient of discharge for the orifice plate Ca...
Ans. 6.29 ft3/s
(B)
5./ A venturi meter with a diameter of 6 in at the oat is installed in an 18 in water main. A differential manometer gauge is partly filled with mercury (the re- mainder of the tube is filled with water) and connected to the meter at the throat and inlet. The mercury col- umn stands 15 in higher in one leg than in the other. Neglecting friction, what is the flow through the meter? The specific...
fluid
Q1: A venture meter is fitted in a pipe of 30 cm diameter inclined at 40° to the horizontal to measure the flow rate of petrol having a specific gravity of 0.8. The ratio of areas of main pipe and throat is 5 and the throat is at 1 m from the inlet along its length. The difference in manometer head is 40 mm of mercury. Assuming the coefficient of discharge as 0.96. Calculate the discharge through the venture...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe, as shown in Figure Q2.2. The pipe is 100 mm in diameter and contains an orifice plate with a throat diameter of 40 mm. The pressure drop across the orifice is measured on a U-tube manometer, containing mercury with a specific gravity 13.6. The difference in levels of the columns is measured as 45 mm. The coefficient of discharge for the orifice plate Ca...
