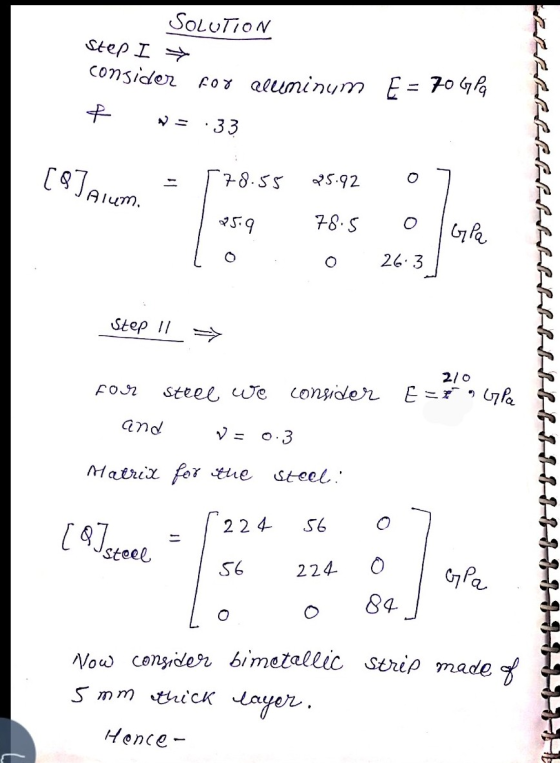

![SOLUTION step I consider for aluminum E = 70 G Pa f ♡ = 33 [Q]Alum. -78.55 25.92 0 07519 78.5 Gila O 26.3 Step 11 210 steel w](http://img.homeworklib.com/questions/8b3a4960-d52a-11ea-8dd4-c57e2633af57.png?x-oss-process=image/resize,w_560)

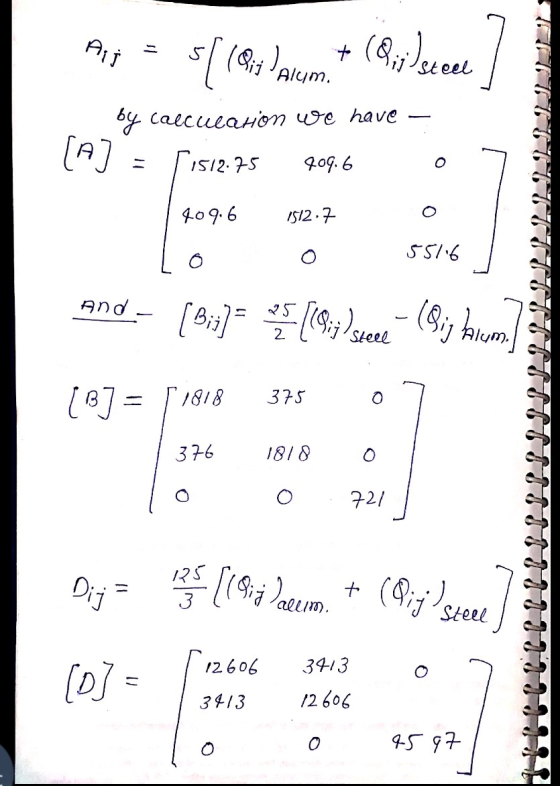

![Aij + ${ (Qui alum (Puissteet by calculation we have (A) 151275 80g. 6 109.6 1512.7 55116 And- [B;j] = [(9:; see- (Bij helem](http://img.homeworklib.com/questions/8bd39670-d52a-11ea-9464-097aa16a95fe.png?x-oss-process=image/resize,w_560)

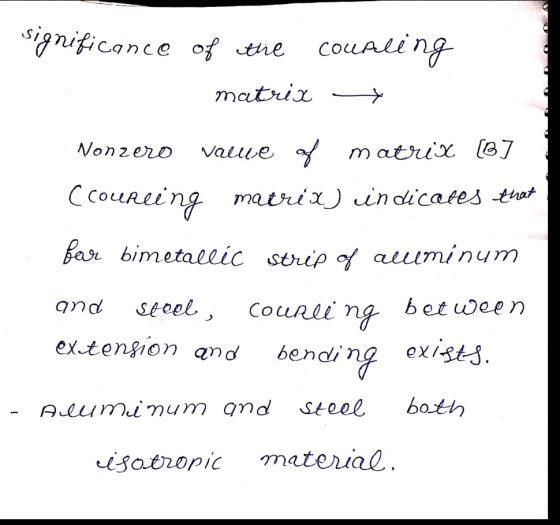

Note: Please clear basic
formulation , If you doubt you can comment and you can ask more
question, or doubts, Thank You !.
Add Answer to:
6.1. Determine the extensional, coupling, and bending stiffness matrices of a bimetallic strip made of 5-mm-thick...
A 30-mm thick AISI 1020 steel plate is sandwiched between two 2024-T3 aluminum plates, one 10-mm...
A 30-mm thick AISI 1020 steel plate is sandwiched between two 2024-T3 aluminum plates, one 10-mm thick and the other 20-mm thick, and compressed with a bolt and nut with no washers. The bolt is M10 x 1.5, property class 5.8 a) Determine a suitable length for the bolt, rouded up to the nearest 5 mm b) Estimate the bolt stiffness c) Estimate the stiffness of the members d) Calculate the joint constant C. 20 aA
A 30-mm thick AISI...
please do alll the parts otherwise don't attemt it, I would definitely give a thumbs down...
please do alll the parts otherwise don't attemt it, I
would definitely give a thumbs down if u mess this question
Volumetric dicharge The flat strip is sprayed with paint using the six nozzles, each having a diameter of 2 mm They are attached to the 20-mm-diameter pipe. The strip is 50 mm wide, and the paint is to be 1 mm thick (Figure 1) 1.5 ms 2.5 m If the average speed of the paint through the pipe is...
**Use Shigley's Mechanical Engineering Design, McGraw-Hill textbook as a reference Problem 3: A 40-mm thick AISI 102...
**Use Shigley's Mechanical
Engineering Design, McGraw-Hill textbook as a reference

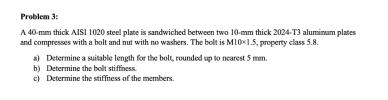

Problem 3: A 40-mm thick AISI 1020 steel plate is sandwiched between two 10-mm thick 2024-T3 aluminum plates and compresses with a bolt and nut with no washers. The bolt is M10x1.5, property class 5.8 a) Determine a suitable length for the bolt, rounded up to nearest 5 mm. Determine the bolt stiffness. b) c) Determine the stiffness of the members.
Problem 3: A 40-mm thick AISI 1020 steel plate...
Review Part A A parallel plate capacitor is made from two aluminum-Soil sheets, each 6.1 em...
Review Part A A parallel plate capacitor is made from two aluminum-Soil sheets, each 6.1 em wide and 6.4 m long Betwoen the sheets is a Teflon strip of the same width and length that is 2 5-102 mm thick. What is the capacitance of this capacitor? (The dielectric constant of Teflon is2.1) Express your answer using two significant figures
Link OB is 20 mm wide and 10 mm thick and is made from low-carbon steel...
Link OB is 20 mm wide and 10 mm thick and is made from low-carbon steel with Sy= 200 MPa. The pin joints are constructed with sufficient size and fit to provide good resistance to out-of-plane bending. Determine the factor of safety for out-of-plane buckling. 400 mm 800 mm where F=1250 N The factor of safety for out-of-plane buckling is 3.54.
a) A copper strip 100 mm x 5 mm, 25 m long is buried at a...
a) A copper strip 100 mm x 5 mm, 25 m long is buried at a depth of 1.5 m, in soil having a resistivity of 100 ?m Calculate the resistance to ground. (4 marks) a) Determine the minimum size of ground conductor considering a substation grid made of Zn coated steel having the following parameters and in keeping with IEEE-80 standard 419, 20.1H (10 marks CTTL b) A power distribution system having the main incorning feeder rated for 400...
16-5. Determine the structure stiffness matrix K for the 200 GPa, are fixed. Take E and frame. Assume 1-300 105) mm,A 1...
16-5. Determine the structure stiffness matrix K for the 200 GPa, are fixed. Take E and frame. Assume 1-300 105) mm,A 10(10) mm2 for each member. 16-6. Determine the support reactions at the fixed supports D and . Take E-200 GPa,1 300 (10) mm, A 10(10) mm2 for each member. 12 kN/m 2 m 4 m 12 2 m Probs. 16-5/6
16-5. Determine the structure stiffness matrix K for the 200 GPa, are fixed. Take E and frame. Assume 1-300...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
A 30-mm thick AISI 1020 steel plate is sandwiched between two 2024-T3 aluminum plates, one 10-mm thick and the other 20-mm thick, and compressed with a bolt and nut with no washers. The bolt is M10 x 1.5, property class 5.8 a) Determine a suitable length for the bolt, rouded up to the nearest 5 mm b) Estimate the bolt stiffness c) Estimate the stiffness of the members d) Calculate the joint constant C. 20 aA
A 30-mm thick AISI...
please do alll the parts otherwise don't attemt it, I
would definitely give a thumbs down if u mess this question
Volumetric dicharge The flat strip is sprayed with paint using the six nozzles, each having a diameter of 2 mm They are attached to the 20-mm-diameter pipe. The strip is 50 mm wide, and the paint is to be 1 mm thick (Figure 1) 1.5 ms 2.5 m If the average speed of the paint through the pipe is...
**Use Shigley's Mechanical
Engineering Design, McGraw-Hill textbook as a reference
Problem 3: A 40-mm thick AISI 1020 steel plate is sandwiched between two 10-mm thick 2024-T3 aluminum plates and compresses with a bolt and nut with no washers. The bolt is M10x1.5, property class 5.8 a) Determine a suitable length for the bolt, rounded up to nearest 5 mm. Determine the bolt stiffness. b) c) Determine the stiffness of the members.
Problem 3: A 40-mm thick AISI 1020 steel plate...
Review Part A A parallel plate capacitor is made from two aluminum-Soil sheets, each 6.1 em wide and 6.4 m long Betwoen the sheets is a Teflon strip of the same width and length that is 2 5-102 mm thick. What is the capacitance of this capacitor? (The dielectric constant of Teflon is2.1) Express your answer using two significant figures
Link OB is 20 mm wide and 10 mm thick and is made from low-carbon steel with Sy= 200 MPa. The pin joints are constructed with sufficient size and fit to provide good resistance to out-of-plane bending. Determine the factor of safety for out-of-plane buckling. 400 mm 800 mm where F=1250 N The factor of safety for out-of-plane buckling is 3.54.
a) A copper strip 100 mm x 5 mm, 25 m long is buried at a depth of 1.5 m, in soil having a resistivity of 100 ?m Calculate the resistance to ground. (4 marks) a) Determine the minimum size of ground conductor considering a substation grid made of Zn coated steel having the following parameters and in keeping with IEEE-80 standard 419, 20.1H (10 marks CTTL b) A power distribution system having the main incorning feeder rated for 400...
16-5. Determine the structure stiffness matrix K for the 200 GPa, are fixed. Take E and frame. Assume 1-300 105) mm,A 10(10) mm2 for each member. 16-6. Determine the support reactions at the fixed supports D and . Take E-200 GPa,1 300 (10) mm, A 10(10) mm2 for each member. 12 kN/m 2 m 4 m 12 2 m Probs. 16-5/6
16-5. Determine the structure stiffness matrix K for the 200 GPa, are fixed. Take E and frame. Assume 1-300...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
