Two basketballs, one regulation and one heavy ball (regulation basketball has mass of 0.624 kg while...

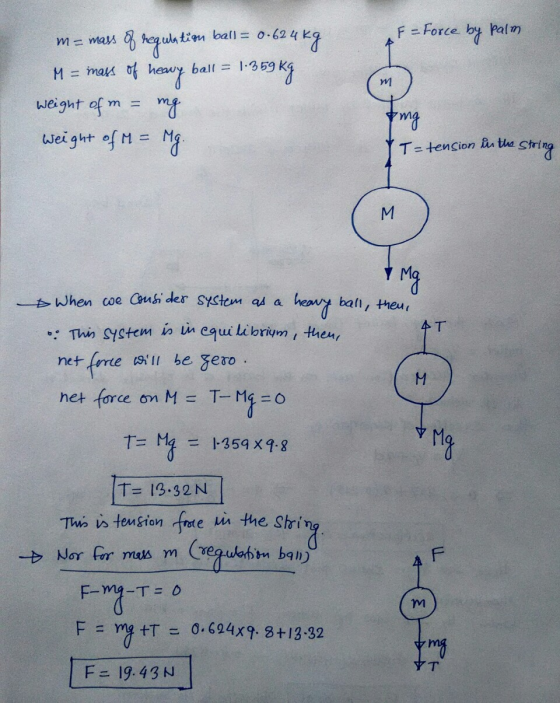

Two basketballs, one regulation and one heavy ball (regulation basketball has mass of 0.624 kg while the heavy ball has mass of 1.359 kg are tied to each other by a light string (light string means you need not consider the mass of the string). The regulation ball is above the heavy ball and a player holds the regulation ball in his palm. Draw the free body diagram(s) appropriate for the situation and then calculate the force that the player must use to hold balls and also calculate the tension in the string on which the heavy ball is suspended.
Homework Answers
Add Answer to:
Two basketballs, one regulation and one heavy ball (regulation
basketball has mass of 0.624 kg while...
