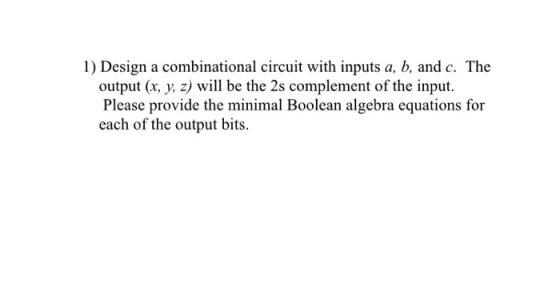

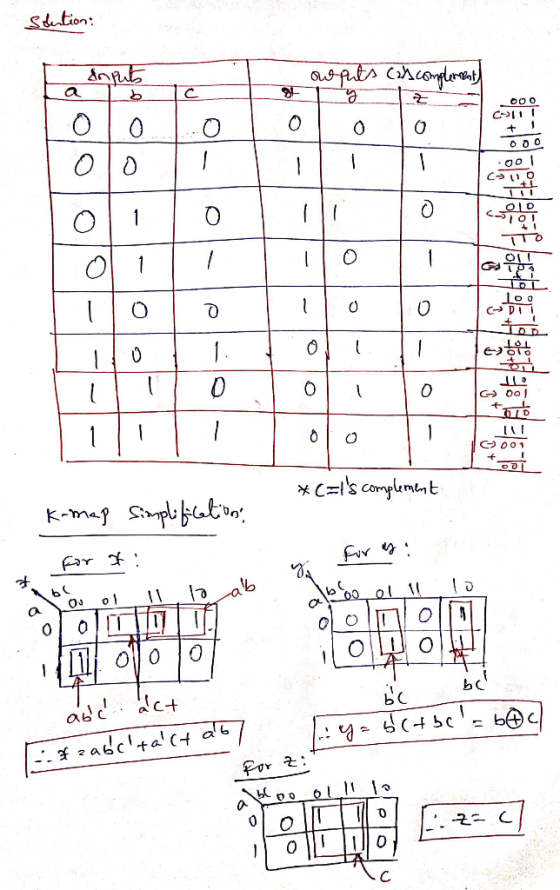

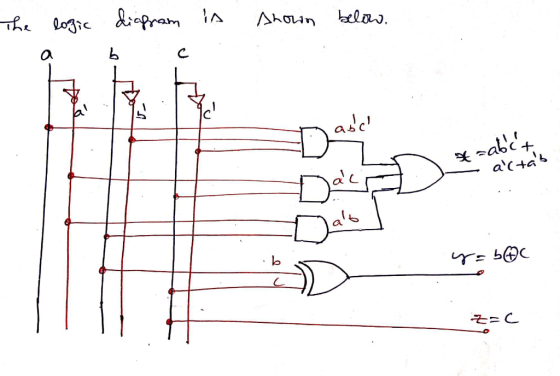

1) Design a combinational circuit with inputs a, b, and c. The output (x, y, z)...
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input ...
1- Please answer all the question
2- with clear handwriting
Thank you,
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input and output both represent a signed numbers (2s complement). The output is 7 less than the input, if the input is positive, or zero. If the input is negative, the output is 3 greater than the input. 7. Use the Boolean functions developed in problem #3 to create...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A,...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A, B , and C . When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input. 1) Truth table 2) Logic circuit 3) Boolean function of A using minterms ( use Boolean algebra) 4) Boolean function of...
Please solve the problems from 2_5 Digital system Problem 2 Design a combinational circuit with inputs...
Please solve
the problems from 2_5
Digital
system
Problem 2 Design a combinational circuit with inputs a, b, c, d and outputs w, x, y, z. Assume that the inputs a, b, c d represent a 4-bit signed number (2s complement). The output is also a signed number in 2s complement which is 5 greater than the input if the input is less than 2, and is 2 less than the input if the input is greater than or equal...
Design a combinational circuit with three inputs, x, y, z, and three outputs, A, B, C....
Design a combinational circuit with three inputs, x, y, z, and three outputs, A, B, C. When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input.
2. Design a combinational logic circuit with three inputs x, y, and z, and three outputs...
2. Design a combinational logic circuit with three inputs x, y, and z, and three outputs A, B, and C. When the binary input value is 0, 1, 2, or 3, the binary output value is 2 greater than the input, i.e. (ABC) = (xyz) + 2. Otherwise, the binary output value is 3 less than the input, i.e. (ABC) = (xyz) – 3.
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
Design a circuit with three input variables x y z representing the bits in a binary...
Design a circuit with three input variables x y z representing the bits in a binary numbers and three outputs( a, b and c) also representing bits in a binary numbers when the inputs 0, 1, 6 or 7. The binary output will be complement of the input when the binary input is 2, 3, 4, or 5. The output is the input shifted left with a rotation( Example 3 = 011, outputs 001)
Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B ,C and D using CMOS transistors. When the binary input is 0, 1, 2,3,4,5,6 or 7 the binary output is fi...
Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B ,C and D using CMOS transistors. When the binary input is 0, 1, 2,3,4,5,6 or 7 the binary output is five greater than the input. When the binary input is 8,,10,11,12,13,14 or 15 the binary output is seven less than the input. for question (a) find the troth table for the inputs (ABCD) then implement using K-map to find the equations to...
Acer Question Three Design a circuit with t wo inputs x & y representing the bits in a binary num...
acer Question Three Design a circuit with t wo inputs x & y representing the bits in a binary number and outputs a& b also representing bits in a binary number. When t output is reversed. When the input is 1 and 3, the output s O and 2, the Any carry forward is discarded a) Show your truth table b) Find and simplify the Boolean expression for the o utputs a & b. c) Draw one logic circuit to...
1- Please answer all the question
2- with clear handwriting
Thank you,
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input and output both represent a signed numbers (2s complement). The output is 7 less than the input, if the input is positive, or zero. If the input is negative, the output is 3 greater than the input. 7. Use the Boolean functions developed in problem #3 to create...
Please solve
the problems from 2_5
Digital
system
Problem 2 Design a combinational circuit with inputs a, b, c, d and outputs w, x, y, z. Assume that the inputs a, b, c d represent a 4-bit signed number (2s complement). The output is also a signed number in 2s complement which is 5 greater than the input if the input is less than 2, and is 2 less than the input if the input is greater than or equal...
2. Design a combinational logic circuit with three inputs x, y, and z, and three outputs A, B, and C. When the binary input value is 0, 1, 2, or 3, the binary output value is 2 greater than the input, i.e. (ABC) = (xyz) + 2. Otherwise, the binary output value is 3 less than the input, i.e. (ABC) = (xyz) – 3.
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
acer Question Three Design a circuit with t wo inputs x & y representing the bits in a binary number and outputs a& b also representing bits in a binary number. When t output is reversed. When the input is 1 and 3, the output s O and 2, the Any carry forward is discarded a) Show your truth table b) Find and simplify the Boolean expression for the o utputs a & b. c) Draw one logic circuit to...
