Homework Answers
Add Answer to:

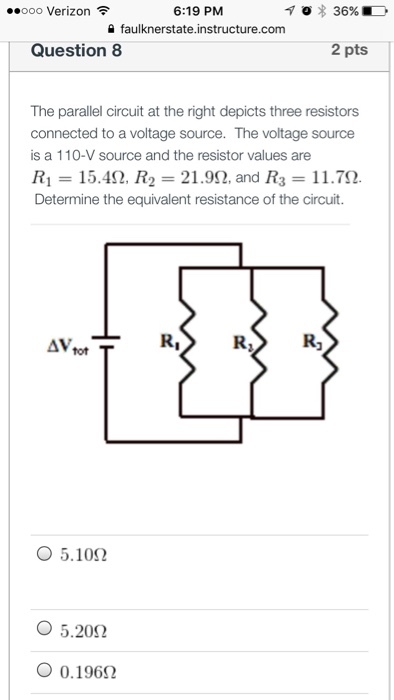

The parallel circuit at the right depicts three resistors connected to a voltage source. The voltage...
Three resistors are connected in the circuit shown below. The emf of the battery is 12.0...
Three resistors are connected in the circuit shown below. The emf of the battery is 12.0 V and the resistors have the following values: R_1 = cR, and R_2 = R/c, where R = 29.0 Ohm and c is a positive number between 0 and infinity. R_3 is an unknown constant value. As the value of c approaches zero, the current through the battery approaches 0.200 A. What is the resistance of R_3? What does the value of the current...
When resistors are in series, each resistor has the same current but the voltage is...
When resistors are in series, each resistor has the same current but the voltage is different for each according to Ohm’s Law. A given circuit consists of two resistors in series connected to a 24.0-V battery. The current in the circuit is 0.0320 A. If R_1=250.0 Ω,and R_2=500.0 Ω. Find the potential difference across each resistor. Find the equivalent resistance. If the circuit in Problem 6 above is reconnected with the two resistors in parallel, the...
Three Ohmic resistors with the same resistance are connected in series to a voltage source with...
Three Ohmic resistors with the same resistance are connected in series to a voltage source with voltage of 33 volts and 1A of current is produced in the circuit. Find the equivalent resistance of a circuit whose three resistors are placed in parallel?
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A potential difference of 17.0 V is maintained between points and b. 3.00 ? 6.00 ? 9.001 ??? 3.00 ?| 6.001 9,00 Three resistors connected in parallel, The voltage across each resistor is 17.0 V battery. ts it equivalent to the circuit in (a)? ) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that wo are dealing witha simpla paralcombination of...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
The parallel rails with negligible are 14.5 cm apart and are connected by a resistor of...
The parallel rails with negligible are 14.5 cm apart and are connected by a resistor of resistance R_3 = 5.00 Ohm. The circuit also contains two metal rods having resistances of R_1 = 13.5 Ohm and R_2 = 15.0 Ohm sliding along the rails (see figure). The rods are pulled away from the resistor at constant speeds of V_1 = 4.00m/s and V_2 = 2.00m/s, respectively. A uniform magnetic field of magnitude B = 0.0100 T is applied perpendicular to...
What is the equivalent resistance in a circuit if the following resistors are connected in parallel....
What is the equivalent resistance in a circuit if the following resistors are connected in parallel. If a voltage source of 5 volts is connected into the circuit, what is the net current coming out of the voltage source. Resistor 1 = 15 ohms, Resistor 2 = 23 ohms, Resistor 3 = 40 ohms
Two resistors R_1 and R_2 are connected in series to a battery supplying a voltage of...
Two resistors R_1 and R_2 are connected in series to a battery supplying a voltage of Delta V as shown in the figure. How much power is dissipated by the resistor R_2 in the form of heat? Use the following data: R_1 = 10 Ohm, R_2 = 5 Ohm, Delta V = 15 V. 2.38 3.45 5.00 7.25 1.05 times 10^1 1.52 times 10^1 2.21 times 10^1 3.20 times 10^1
Four resistors are connected to a battery as shown in the figure. The current in the...
Four resistors are connected to a battery as shown in the figure. The current in the battery is I the battery emf is E - 8.00 V, and the resistor values are R_1 = R, R_2 = 2R, R_3 = 4R, R_4 = 3R. Find the voltages across each resistor.
For the DC circuit shown below, what is the equivalent resistance of the network? What is...
For the DC circuit shown below, what is the equivalent resistance of the network? What is the current in each resistor? Put R_1 = 100 Ohm, R_2 = R_3 = 50 Ohm, R_4 = 75 Ohm, and epsilon = 6.0 V; assume the battery is ideal.
Three resistors are connected in the circuit shown below. The emf of the battery is 12.0 V and the resistors have the following values: R_1 = cR, and R_2 = R/c, where R = 29.0 Ohm and c is a positive number between 0 and infinity. R_3 is an unknown constant value. As the value of c approaches zero, the current through the battery approaches 0.200 A. What is the resistance of R_3? What does the value of the current...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A potential difference of 17.0 V is maintained between points and b. 3.00 ? 6.00 ? 9.001 ??? 3.00 ?| 6.001 9,00 Three resistors connected in parallel, The voltage across each resistor is 17.0 V battery. ts it equivalent to the circuit in (a)? ) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that wo are dealing witha simpla paralcombination of...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
The parallel rails with negligible are 14.5 cm apart and are connected by a resistor of resistance R_3 = 5.00 Ohm. The circuit also contains two metal rods having resistances of R_1 = 13.5 Ohm and R_2 = 15.0 Ohm sliding along the rails (see figure). The rods are pulled away from the resistor at constant speeds of V_1 = 4.00m/s and V_2 = 2.00m/s, respectively. A uniform magnetic field of magnitude B = 0.0100 T is applied perpendicular to...
Two resistors R_1 and R_2 are connected in series to a battery supplying a voltage of Delta V as shown in the figure. How much power is dissipated by the resistor R_2 in the form of heat? Use the following data: R_1 = 10 Ohm, R_2 = 5 Ohm, Delta V = 15 V. 2.38 3.45 5.00 7.25 1.05 times 10^1 1.52 times 10^1 2.21 times 10^1 3.20 times 10^1
Four resistors are connected to a battery as shown in the figure. The current in the battery is I the battery emf is E - 8.00 V, and the resistor values are R_1 = R, R_2 = 2R, R_3 = 4R, R_4 = 3R. Find the voltages across each resistor.
For the DC circuit shown below, what is the equivalent resistance of the network? What is the current in each resistor? Put R_1 = 100 Ohm, R_2 = R_3 = 50 Ohm, R_4 = 75 Ohm, and epsilon = 6.0 V; assume the battery is ideal.
