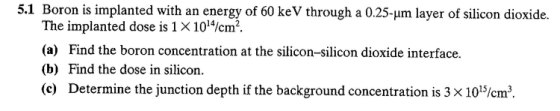

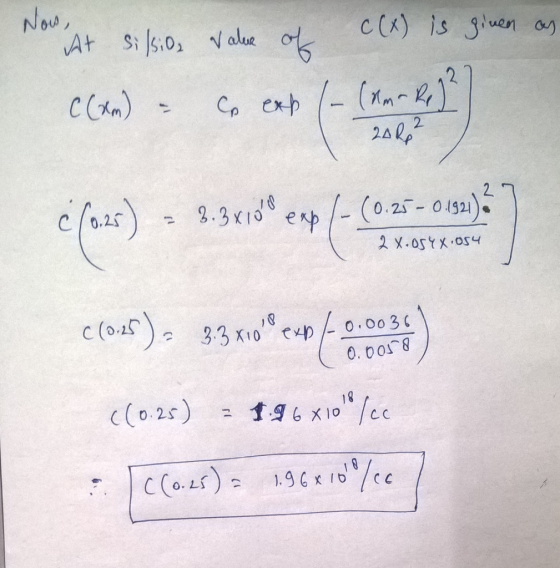

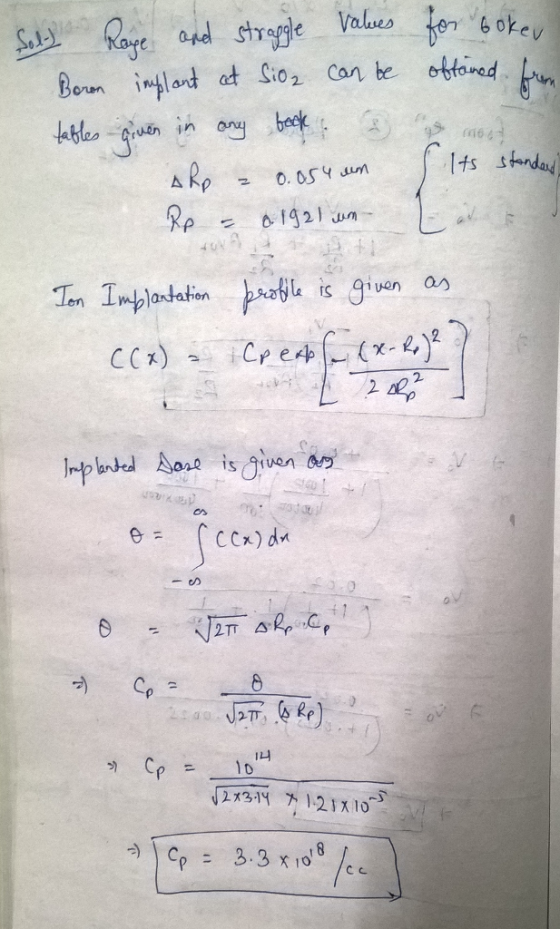

5.1 Boron is implanted with an energy of 60 keV through a 0.25-um layer of silicon...
Please finish these questions. Thank you
1. The surface of a silicon wafer has a region that is uniformly doped with boron at a concentration of 1018cm3. This layer is 20Å thick (1A 104um). The entire wafer, including this region, is uniformly doped with arsenic at a concentration of 1015cm2 The surface of the wafer is sealed and it is heated at 1000° C for 30 min. Assume Do 0.037 cm2/s and EA-3.46eV for Boron in a silicon lattice at...
3. Doping of Silicon One method of introducing dopant impurities into silicon (so as to control the electronic properties) is to depos a in layer on the surface and allow the impurity to diffuse in at a high temperature. Suppose we vapor deposit a thin layer of boron that has 2 x 1015 atoms/cm2 on the surface of a pure silicon wafer, and anneal the wafer for three hours at 1200 C. To about what depth will the boron concentration...
1) An arsenic implant is performed into a bare p-type silicon wafer with a background doping of 1 x1016cm-3, at an energy of 70 keV and a dose of 1 x1015 cm2. After an anneal at 950°C for 10 min, the junction depth is measured to be 0.2 um. Calculate the enhancement in the arsenic diffusion (as a ratio of (Dt)measured (Dt)expected) that was caused by the implantation damage. (5 marks)
1) An arsenic implant is performed into a bare...
An integrated circuit is made by implanting boron ions at 80 keV through a window in an oxide. If the boron dose is 2 × 1016 cm-2and the n-type substrate concentration is 1016 cm-3, find the location of the metallurgical junction.
