Let's design a roller coaster. It should consist of a long ramp leading into a loop....

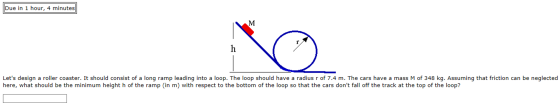

Let's design a roller coaster. It should
consist of a long ramp leading into a loop. The loop should have a
radius r of 7.4 m. The cars have a mass M of 348 kg. Assuming that
friction can be neglected here, what should be the minimum height h
of the ramp (in m) with respect to the bottom of the loop so that
the cars don't fall off the track at the top of the loop?
Homework Answers
