Two charges Q. = 2 nC and Q2 = -4 nC are separated by 1 m....

Question

Question

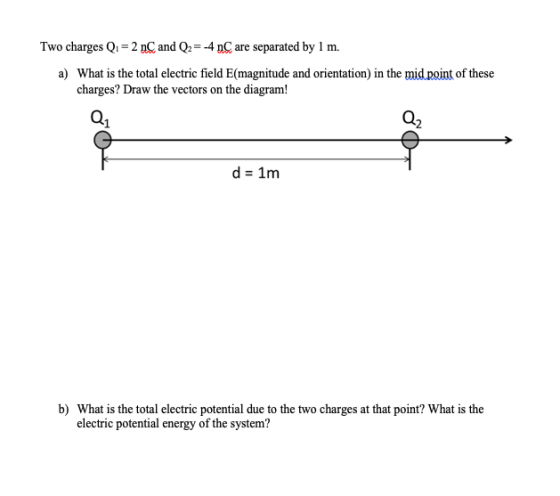

Two charges Q. = 2 nC and Q2 = -4 nC are separated by 1 m. a) What is the total electric field E(magnitude and orientation) i

science physics

Answer 1

Answer #1

Answer 2
