300 lb Problem 3. A 2-D force system with geometry is shown. Find the equiv resultant...
Problem 1. Given the 3-D sketch as shown of a tripod stand with a 300 ft"lb moment applied to the...
Problem 1. Given the 3-D sketch as shown of a tripod stand with a 300 ft"lb moment applied to the top at D (applied by a wrench). The tripod base is an equilateral triangle with 2 ft on each side. The height of the stand is 4 ft. Find the Resultant Force at points A, B, and C. The moment at D is in a parallel plane to the plane A, B and C are in. D 300 ft*lb h=4ft...
Replace the loading system by an equivalent resultant force and a couple moment acting at point...
Replace the loading system by an equivalent resultant force and a couple moment acting at point A. 3 ft 6 ft 53.13º 10 lb 12 lb 4 ft 30 lb-ft 5 ft 8 lb 12 513 lb
QUESTION 2 25 points San Find the equivalent resultant force and find its location, measured from...
QUESTION 2 25 points San Find the equivalent resultant force and find its location, measured from point 200 lb/ft 500 lb 150 lb/ft -6 ft —_ te_3 ft-to-3 ft-- TTT Aria 3120 T. - E .
Replace the loading system shown by an equivalent resultant force and couple moment acting at point...
Replace the loading system shown by an equivalent resultant
force and couple moment acting at point A.
If possible please show steps, Thanks!
50 Iь 50 lb
Class Exercise 4 Name (in-class work only; no make-up) 4.1. Find the equivalent resultant force and...
Class Exercise 4 Name (in-class work only; no make-up) 4.1. Find the equivalent resultant force and moment acting at A. Also, find the equivalent result without couple moment acting on a point between A and B. ant force 2 ft 150 lb 4 ft 500 lb - ft ЗА 50 lb
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple m...
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
I want clear answer and (do Step 1 and Step 2) Replace the forces acting on...
I
want clear answer and (do Step 1 and Step 2)

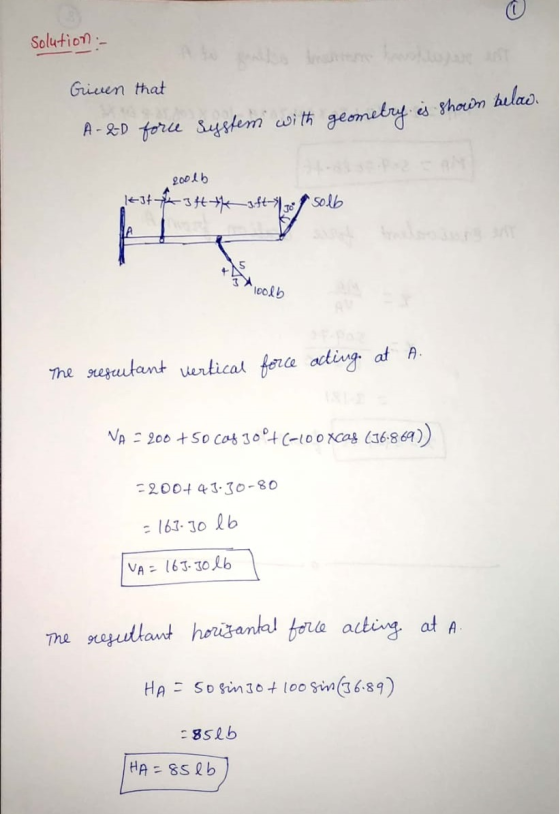

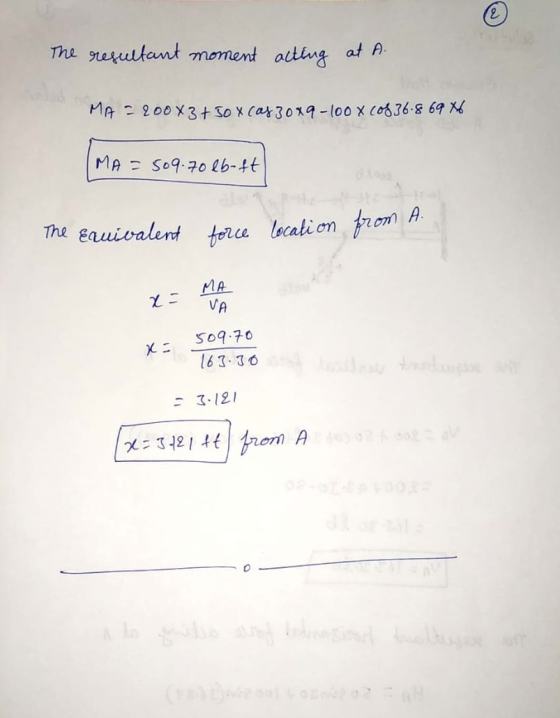

Replace the forces acting on the beam by an equivalent resultant force and couple moment acting at point A. 200 lb 50 lb _3ft 3 ft 3ft30 3100lb Given: A 2-D force system with geometry Find: FRA: MRA Solution: Step : Sum all the x and y components of the forces to find FRA. Step 2: Find and sum all the moments resulting from moving each force component to...
Determine the resultant couple moment acting on the pipe assembly. Assume (Mc)1= 520 lb⋅ft , (Mc)2= 300 lb⋅ft and (Mc)3=...
Determine the resultant couple moment acting on the pipe
assembly. Assume (Mc)1= 520 lb⋅ft ,
(Mc)2= 300 lb⋅ft and (Mc)3= 320
lb⋅ft (Figure 1)Enter the x, y and z components of
the resultant couple moment separated by commas.(MC)R = lb⋅ft
Replace the force system acting on the post by a resultant force and couple moment at point O. Take F1= 350 lb and F2 = 230 lb . (Figure 1)
Replace the force system acting on the post by a resultant force and couple moment at point O. Take F1= 350 lb and F2 = 230 lb . (Figure 1) Part A Determine the magnitude of the resultant force. Part B Determine the angle between the resultant force and the a axis. Part C Determine the equivalent resultant couple moment about the point O.
Replace the loading system by an equivalent resultant force and specify where the resultant's line of...
Replace the loading system by an equivalent resultant force and specify where the resultant's line of action intersectects a vertical line along member AP, measured from A. 1500 lb 180 lb/ft 100 lb/ft Р 70 lb/ft - 650 11 C 22B 1900 1b-ft 234 Inf 124 30 ft A2
Problem 1. Given the 3-D sketch as shown of a tripod stand with a 300 ft"lb moment applied to the top at D (applied by a wrench). The tripod base is an equilateral triangle with 2 ft on each side. The height of the stand is 4 ft. Find the Resultant Force at points A, B, and C. The moment at D is in a parallel plane to the plane A, B and C are in. D 300 ft*lb h=4ft...
Replace the loading system by an equivalent resultant force and a couple moment acting at point A. 3 ft 6 ft 53.13º 10 lb 12 lb 4 ft 30 lb-ft 5 ft 8 lb 12 513 lb
QUESTION 2 25 points San Find the equivalent resultant force and find its location, measured from point 200 lb/ft 500 lb 150 lb/ft -6 ft —_ te_3 ft-to-3 ft-- TTT Aria 3120 T. - E .
Replace the loading system shown by an equivalent resultant
force and couple moment acting at point A.
If possible please show steps, Thanks!
50 Iь 50 lb
Class Exercise 4 Name (in-class work only; no make-up) 4.1. Find the equivalent resultant force and moment acting at A. Also, find the equivalent result without couple moment acting on a point between A and B. ant force 2 ft 150 lb 4 ft 500 lb - ft ЗА 50 lb
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
I
want clear answer and (do Step 1 and Step 2)
Replace the forces acting on the beam by an equivalent resultant force and couple moment acting at point A. 200 lb 50 lb _3ft 3 ft 3ft30 3100lb Given: A 2-D force system with geometry Find: FRA: MRA Solution: Step : Sum all the x and y components of the forces to find FRA. Step 2: Find and sum all the moments resulting from moving each force component to...
Determine the resultant couple moment acting on the pipe
assembly. Assume (Mc)1= 520 lb⋅ft ,
(Mc)2= 300 lb⋅ft and (Mc)3= 320
lb⋅ft (Figure 1)Enter the x, y and z components of
the resultant couple moment separated by commas.(MC)R = lb⋅ft
Replace the loading system by an equivalent resultant force and specify where the resultant's line of action intersectects a vertical line along member AP, measured from A. 1500 lb 180 lb/ft 100 lb/ft Р 70 lb/ft - 650 11 C 22B 1900 1b-ft 234 Inf 124 30 ft A2
