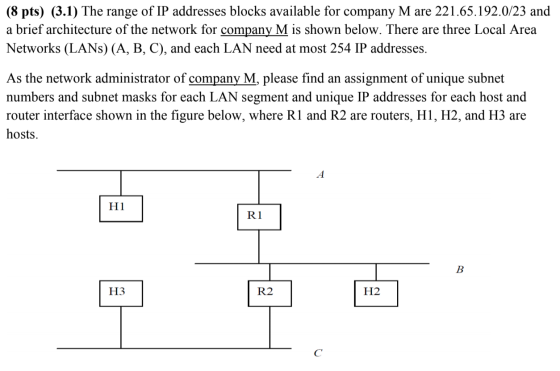

(8 pts) (3.1) The range of IP addresses blocks available for company M are 221.65.192.0/23 and a brief architecture of the ne

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1
Subnet Name Needed Size Allocated Size Address Mask Dec Mask Assignable Range Broadcast
A 254 254 221.65.192.0 /24 255.255.255.0 221.65.192.1 - 221.65.192.254 221.65.192.255
B 254 254 221.65.193.0 /24 255.255.255.0 221.65.193.1 - 221.65.193.254 221.65.193.255
C 254 254 221.65.194.0 /24 255.255.255.0 221.65.194.1 - 221.65.194.254 221.65.194.255
R1 2 2 221.65.195.0 /30 255.255.255.252 221.65.195.1 - 221.65.195.2 221.65.195.3
R2 2 2 221.65.195.4 /30 255.255.255.252 221.65.195.5 - 221.65.195.6

221.65.195.7

if you have any doubt then please ask me without any hesitation in the comment section below , if you like my answer then please thumbs up for the answer , before giving thumbs down please discuss the question it may possible that we may understand the question different way and we can edit and change the answers if you argue, thanks :)
