Homework Answers
Add Answer to:

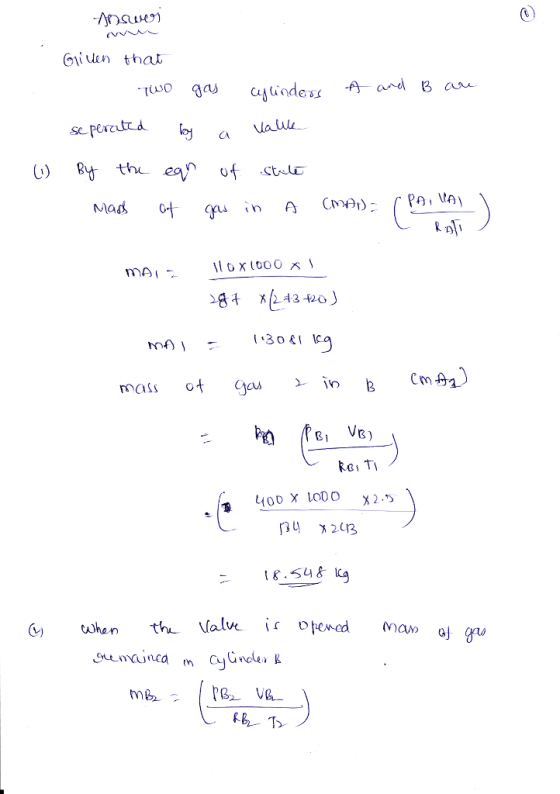

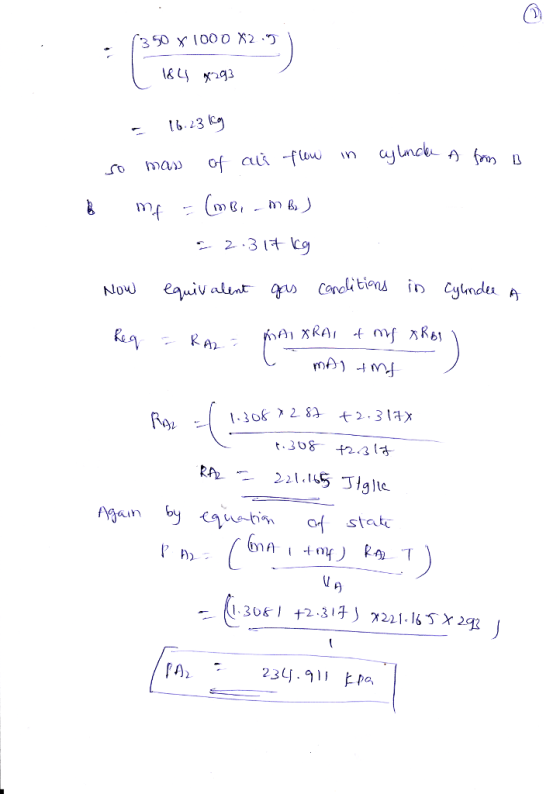

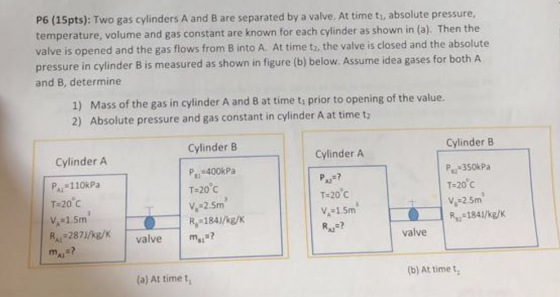

P6 (15pts): Two gas cylinders A and B are separated by a valve. At time ti,...
1. A rigid (constant volume) tank sealed by a valve initially contains 100 kg of air...
1. A rigid (constant volume) tank sealed by a valve initially contains 100 kg of air at a pressure of 100 kPa and 300 K. At time t = 0, the valve for the air tank is opened in a controlled manner and air leaks out isothermally (constant temperature) of the tank at a constant mass flow rate of 1 kg/s. The valve is closed after 75 seconds. Answer the following questions: Assuming air is an ideal gas, what is...
105Pa, initial temperature T-300K, and an initial 1. An ideal gas with initial pressure 2 volume V - 1m3 expands isothermally to a final volume of 2m3. Then, the gas returns to its initial state, fir...
105Pa, initial temperature T-300K, and an initial 1. An ideal gas with initial pressure 2 volume V - 1m3 expands isothermally to a final volume of 2m3. Then, the gas returns to its initial state, first by constant pressure (isobaric) contraction, and then by a change at constant volume (isochoric) a) Draw a PV diagram of this process. What's the total change in thermal energy of the entire process? b) What's the work done by the environment on the gas?...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different paths for expansion. Path 1: The gas expands quasistatically and isothermally to (Va, Pz. T2) Path 2: First the gas expands quasistatically and adiabatically (V2, P.,T-),where you will calculate P T. Then the gas is heated quasistically at constant volume to (Va. P2 T1). a. Sketch both paths on a P-V diagram. b. Calculate the entropy change of the system along all three segments...
any help thank you Chapter 12 Ideal Gas Mixtures and Psychrometric Applications Converting Between Mass Fraction...
any help thank you
Chapter 12 Ideal Gas Mixtures and Psychrometric Applications Converting Between Mass Fraction and Mole Fraction Mass Fraction Mole Fraction m/M y, M M mf M cy, MM m/M Example 1: Determine the mf CO2 0.04 MW mix mixture molecular weight mf_N2 0.7 m mix (kg) (kg/kmol), specific volume mf_02 0.2 0.06 (m®/kg), and mole fraction for mf_H20 T(C) 40 a gas mixture given the mass P (bar) 1 fraction, temperature, pressure and volume. V(m3) Example 2:...
Please answer all parts of the question: a,b,c,d Ideal Gas Law The ideal gas law states...
Please answer all parts of the question: a,b,c,d
Ideal Gas Law The ideal gas law states that PV = Nk T where P is the absolute pressure of a gas, V is the volume it occupies, N is the number of atoms and molecules in the gas, and T is its absolute temperature. The constant kg is called the Boltzmann constant and has the value kg = 1.38x10-29 J/K. A very common expression of the ideal gas law uses the...
A gas cylinder containing carbon dioxide, CO2, 85% by volume, and nitrogen, N2, 15% by volume...
A gas cylinder containing carbon dioxide, CO2, 85% by volume, and nitrogen, N2, 15% by volume has a volume of 2.2 m and is kept at a temperature of 20°C. You may assume the gas mixture is ideal. 0 Calculate the pressure in kPa in the cylinder when it contains 50 kg of gas. [2 marks] After a certain amount of gas has been used, the pressure decreases by 150 kPa. Calculate the mass of gas used. [2 marks] (b)...
The ideal gas law states that PV = NkgT where P is the absolute pressure of...
The ideal gas law states that PV = NkgT where P is the absolute pressure of a gas, V is the volume it occupies, N is the number of atoms and molecules in the gas, and T is its absolute temperature. The constant ko is called the Boltzmann constant and has the value kg = 1.38x10-23J/K. A very common expression of the ideal gas law uses the number of moles, n- N/NA (NA is Avogadro's number, NA=6.021023 per mole). PV...
Gas Note: Figure not drawn to scale. 2005Bb6. ideal gas A piston fitting closely in the...
Gas Note: Figure not drawn to scale. 2005Bb6. ideal gas A piston fitting closely in the cylinder is lightweight and frictionless, and objects of different mass m can be placed on top of it, as shown in the figure above. In order to determine n, you perform an experiment that consists of adding 1 kg masses one at a time on top of the piston, compressing the gas, and allowing the gas to return to room temperature Tbefore measuring the...
What is the volume of the sphere in Procedure 2 in units of cm3? Express your...
What is the volume of the sphere in Procedure 2 in units of
cm3? Express your answer to two significant figures.
LAB 14: IDEAL GAS LAW BASIC CONCEPTS TEXTBOOK: SECTIONS 15.2, YOUNG, 10TH EDITION DEFINITIONS Volume: The space taken up by an object, measured in cubic meters (m"). Pressure: For an enclosed gas, pressure is defined as the force exerted per area by the gas on the container walls, measured in Pascal (1 N/m) Temperature: A measure of the average...
1 of 20 ned t Introduction to the Ideal Gas Law Part B A 200 L...
1 of 20 ned t Introduction to the Ideal Gas Law Part B A 200 L gas cylinder is iled with 8.00 moles of gas. The tank is stored at 27C What is the pressure in the tank? Learning Goal: To apply the ideal gas law to problems inwolving temperature, pressure, volume, and moles of a gas Express your answer to three significant figures and include the appropriate u Hints The lour properties of gases (pressure P. volume V temperature...
1. A rigid (constant volume) tank sealed by a valve initially contains 100 kg of air at a pressure of 100 kPa and 300 K. At time t = 0, the valve for the air tank is opened in a controlled manner and air leaks out isothermally (constant temperature) of the tank at a constant mass flow rate of 1 kg/s. The valve is closed after 75 seconds. Answer the following questions: Assuming air is an ideal gas, what is...
105Pa, initial temperature T-300K, and an initial 1. An ideal gas with initial pressure 2 volume V - 1m3 expands isothermally to a final volume of 2m3. Then, the gas returns to its initial state, first by constant pressure (isobaric) contraction, and then by a change at constant volume (isochoric) a) Draw a PV diagram of this process. What's the total change in thermal energy of the entire process? b) What's the work done by the environment on the gas?...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different paths for expansion. Path 1: The gas expands quasistatically and isothermally to (Va, Pz. T2) Path 2: First the gas expands quasistatically and adiabatically (V2, P.,T-),where you will calculate P T. Then the gas is heated quasistically at constant volume to (Va. P2 T1). a. Sketch both paths on a P-V diagram. b. Calculate the entropy change of the system along all three segments...
any help thank you
Chapter 12 Ideal Gas Mixtures and Psychrometric Applications Converting Between Mass Fraction and Mole Fraction Mass Fraction Mole Fraction m/M y, M M mf M cy, MM m/M Example 1: Determine the mf CO2 0.04 MW mix mixture molecular weight mf_N2 0.7 m mix (kg) (kg/kmol), specific volume mf_02 0.2 0.06 (m®/kg), and mole fraction for mf_H20 T(C) 40 a gas mixture given the mass P (bar) 1 fraction, temperature, pressure and volume. V(m3) Example 2:...
Please answer all parts of the question: a,b,c,d
Ideal Gas Law The ideal gas law states that PV = Nk T where P is the absolute pressure of a gas, V is the volume it occupies, N is the number of atoms and molecules in the gas, and T is its absolute temperature. The constant kg is called the Boltzmann constant and has the value kg = 1.38x10-29 J/K. A very common expression of the ideal gas law uses the...
A gas cylinder containing carbon dioxide, CO2, 85% by volume, and nitrogen, N2, 15% by volume has a volume of 2.2 m and is kept at a temperature of 20°C. You may assume the gas mixture is ideal. 0 Calculate the pressure in kPa in the cylinder when it contains 50 kg of gas. [2 marks] After a certain amount of gas has been used, the pressure decreases by 150 kPa. Calculate the mass of gas used. [2 marks] (b)...
The ideal gas law states that PV = NkgT where P is the absolute pressure of a gas, V is the volume it occupies, N is the number of atoms and molecules in the gas, and T is its absolute temperature. The constant ko is called the Boltzmann constant and has the value kg = 1.38x10-23J/K. A very common expression of the ideal gas law uses the number of moles, n- N/NA (NA is Avogadro's number, NA=6.021023 per mole). PV...
Gas Note: Figure not drawn to scale. 2005Bb6. ideal gas A piston fitting closely in the cylinder is lightweight and frictionless, and objects of different mass m can be placed on top of it, as shown in the figure above. In order to determine n, you perform an experiment that consists of adding 1 kg masses one at a time on top of the piston, compressing the gas, and allowing the gas to return to room temperature Tbefore measuring the...
What is the volume of the sphere in Procedure 2 in units of
cm3? Express your answer to two significant figures.
LAB 14: IDEAL GAS LAW BASIC CONCEPTS TEXTBOOK: SECTIONS 15.2, YOUNG, 10TH EDITION DEFINITIONS Volume: The space taken up by an object, measured in cubic meters (m"). Pressure: For an enclosed gas, pressure is defined as the force exerted per area by the gas on the container walls, measured in Pascal (1 N/m) Temperature: A measure of the average...
1 of 20 ned t Introduction to the Ideal Gas Law Part B A 200 L gas cylinder is iled with 8.00 moles of gas. The tank is stored at 27C What is the pressure in the tank? Learning Goal: To apply the ideal gas law to problems inwolving temperature, pressure, volume, and moles of a gas Express your answer to three significant figures and include the appropriate u Hints The lour properties of gases (pressure P. volume V temperature...
