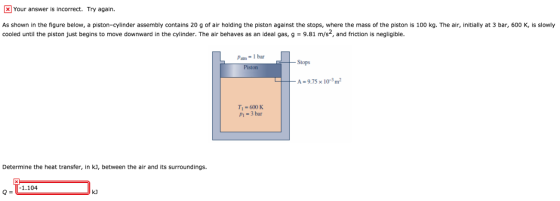

![Your answer is incorrect. Try again As shown in the figure below, a piston-cylinder assembly contains 20 g of air holding the piston against the stops, where the mass of the piston is 100 kg. The air, initially at 3 bar, 600 K, is slowly cooled until the piston just begins to move downward in the cylinder. The air behaves as an ideal gas, g = 9.81 m/s2, and friction is negligible Patr ,-Ibar Stops A-975 x1r3㎡ T=600 K P1=3bar Determine the heat transfer, in k], between the air and its surroundings. 1.104 Q= kJ](http://img.homeworklib.com/questions/c8c33ab0-d6ec-11ea-9d9b-819206f9645f.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
I need help with this question.
Your answer is incorrect. Try again As shown in the...
