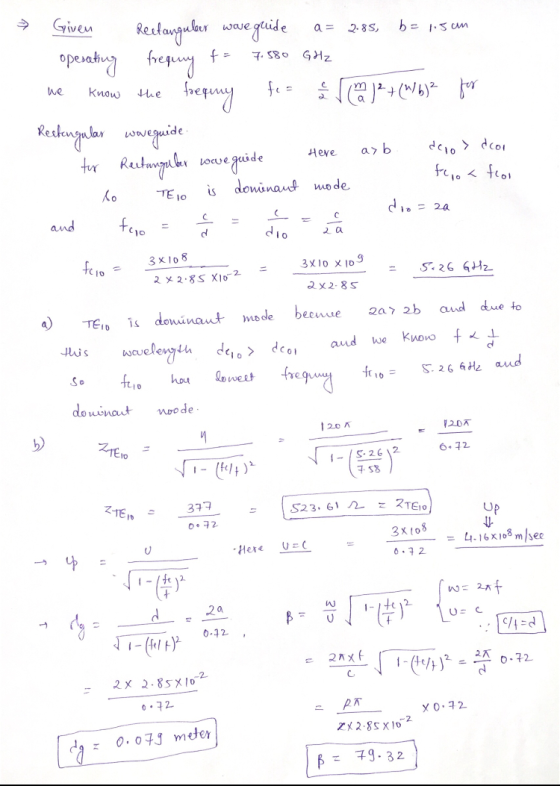

Here i am uploaded the
soltuion if you have any doubt you can leave a comment I will help
you to understand.
Add Answer to:

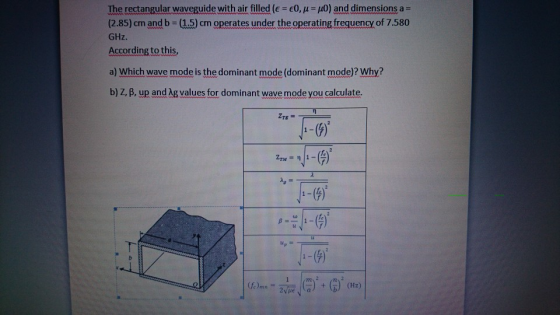

The rectangular waveguide with air filled (e = €0, u = u0) and dimensions a =...
3) As in Figure 2, the rectangular waveguide with air filled (? = ?0, ? =...
3) As in Figure 2, the rectangular waveguide with air filled (?
= ?0, ? = ?0) and dimensions a = (2.75 + d) cm and b = (1.5 + h) cm
operates under the operating frequency of 7.580 GHz.
d = 8/10 h = 6/10
According to this,
a) Which wave mode is the dominant mode (dominant mode)? Why?
Figure 2- Rectangular Wave Guide
b) Calculate the Z, β, up and λg values for the dominant wave
mode.
b
Yardımcı Bağıntılar m ZTE 1 (9) ZTM = n 1 - 2 λα 2 B -...
Yardımcı Bağıntılar m ZTE 1 (9) ZTM = n 1 - 2 λα 2 B - (0) u Up = 1 - Şekil 2- Dikdörtgen Dalga Kılavuzu f)mn 1 2 με C%) + (%)' (Hz) As in Figure 2, the rectangular wave guide with air filled (E = €0,-) and dimensions a = 3.15 cm and b 1.9 cm operates under the operating frequency of 7.580 GHz. According to this, a) Which wave mode is the dominant mode (dominant mode)?...
An axb-filled air-filled (e = €0, u = uO) and WG-16 waveguide, as in Figure 1,...
An axb-filled air-filled (e = €0, u = uO) and WG-16 waveguide, as in Figure 1, will be supplied for use for radar applications in the X frequency band, and the catalog data published by the supplier for this waveguide. It is given in the table. If the width of this waveguide is greater than its height (a> b), answer the following questions in the light of the information given and catalog data and fill in the blanks in the...
As in Figure 2, the air is filled (? = ?0, gibi = ?0) and a...
As in Figure 2, the air is filled (? = ?0, gibi = ?0) and a =
(2.75 + d) cm and b = (1.5 + h) cm rectangular waveguide 7.580 GHz
operating frequency works under.
d=0.4
h=0.8
a) Which wave mode is the dominant mode (dominant mode)?
Why?
b) Z, β, up and λg values for dominant wave mode You
calculate.
b
Power capacity of a rectangular waveguide. (a) Consider a WR-284 rectangular air waveguide with inner dimensions...
Power capacity of a rectangular waveguide. (a) Consider a WR-284 rectangular air waveguide with inner dimensions 7.214 cm x 3.404 cm to operate in the dominant mode at 2.45 GHz. Assuming the breakdown electric field of air to be 15 kV-(cm)-1 (with a safety factor of 2 at sea level), calculate the maximum time-average power that can be carried by this waveguide. (b) Another waveguide (WR-430 air-filled, with inner dimensions 10.922 cm x 5.461 cm) is proposed to increase the...
Problem 3: Consider an air-filled rectangular waveguide with dimensions a = 25 mm and b =...
Problem 3: Consider an air-filled rectangular waveguide with dimensions a = 25 mm and b = 12.5 mm. If a 5.98 GHz wave with a peak electric field of 1 V/m exists at the beginning point in the waveguide, what is the peak magnitude of the electric field one mete down the waveguide.
An air-filled waveguide has dimensions a-2.5 cm and be 1,0 em in the x and y...
An air-filled waveguide has dimensions a-2.5 cm and be 1,0 em in the x and y direetioms respectivety a) ( Spta) Find the cutoff frequeney of the TEs mode for this waveguide b) (6pts) Find the wave impedance for the TEi0 mode c) (5pts) If the operating frequeney is 12 GHz, List all the modes that will propagate in the waveguide
4-9. The dominant mode TEio is propagated in a rectangular waveguide of dimensions a 2.25 cm and b-l cm. Assume an air dielectric with a breakdown gradient of 30 kV/cm and a frequency of 10 GHz. Ther...
4-9. The dominant mode TEio is propagated in a rectangular waveguide of dimensions a 2.25 cm and b-l cm. Assume an air dielectric with a breakdown gradient of 30 kV/cm and a frequency of 10 GHz. There are no standing waves in the guide. De- termine the maximum average power that can be carried by the guide
4-9. The dominant mode TEio is propagated in a rectangular waveguide of dimensions a 2.25 cm and b-l cm. Assume an air dielectric...
Figure1: As in Figure 1, one x b-size air filled (? = ?0, ? = ?0)...
Figure1:
As in Figure 1, one x b-size air filled (? = ?0, ? = ?0) and WG-16
A named waveguide is used for radar applications in the X frequency band.
This wave guide of the firm whether it will be supplied
About the catalog options he published for. This
if the width of the waveguide is greater than its height (a> b)
in the light of the information given and the catalog details
Answer and fill in the blanks...
3) A rectangular waveguide with dimensions a -2 cm, b-1 em is filled with a medium...
3) A rectangular waveguide with dimensions a -2 cm, b-1 em is filled with a medium characterized by 46.What is the cutoff frequency if at least two TM modes are to be transmitted in the waveguide? (25 points)
3) As in Figure 2, the rectangular waveguide with air filled (?
= ?0, ? = ?0) and dimensions a = (2.75 + d) cm and b = (1.5 + h) cm
operates under the operating frequency of 7.580 GHz.
d = 8/10 h = 6/10
According to this,
a) Which wave mode is the dominant mode (dominant mode)? Why?
Figure 2- Rectangular Wave Guide
b) Calculate the Z, β, up and λg values for the dominant wave
mode.
b
Yardımcı Bağıntılar m ZTE 1 (9) ZTM = n 1 - 2 λα 2 B - (0) u Up = 1 - Şekil 2- Dikdörtgen Dalga Kılavuzu f)mn 1 2 με C%) + (%)' (Hz) As in Figure 2, the rectangular wave guide with air filled (E = €0,-) and dimensions a = 3.15 cm and b 1.9 cm operates under the operating frequency of 7.580 GHz. According to this, a) Which wave mode is the dominant mode (dominant mode)?...
An axb-filled air-filled (e = €0, u = uO) and WG-16 waveguide, as in Figure 1, will be supplied for use for radar applications in the X frequency band, and the catalog data published by the supplier for this waveguide. It is given in the table. If the width of this waveguide is greater than its height (a> b), answer the following questions in the light of the information given and catalog data and fill in the blanks in the...
As in Figure 2, the air is filled (? = ?0, gibi = ?0) and a =
(2.75 + d) cm and b = (1.5 + h) cm rectangular waveguide 7.580 GHz
operating frequency works under.
d=0.4
h=0.8
a) Which wave mode is the dominant mode (dominant mode)?
Why?
b) Z, β, up and λg values for dominant wave mode You
calculate.
b
Problem 3: Consider an air-filled rectangular waveguide with dimensions a = 25 mm and b = 12.5 mm. If a 5.98 GHz wave with a peak electric field of 1 V/m exists at the beginning point in the waveguide, what is the peak magnitude of the electric field one mete down the waveguide.
An air-filled waveguide has dimensions a-2.5 cm and be 1,0 em in the x and y direetioms respectivety a) ( Spta) Find the cutoff frequeney of the TEs mode for this waveguide b) (6pts) Find the wave impedance for the TEi0 mode c) (5pts) If the operating frequeney is 12 GHz, List all the modes that will propagate in the waveguide
4-9. The dominant mode TEio is propagated in a rectangular waveguide of dimensions a 2.25 cm and b-l cm. Assume an air dielectric with a breakdown gradient of 30 kV/cm and a frequency of 10 GHz. There are no standing waves in the guide. De- termine the maximum average power that can be carried by the guide
4-9. The dominant mode TEio is propagated in a rectangular waveguide of dimensions a 2.25 cm and b-l cm. Assume an air dielectric...
Figure1:
As in Figure 1, one x b-size air filled (? = ?0, ? = ?0) and WG-16
A named waveguide is used for radar applications in the X frequency band.
This wave guide of the firm whether it will be supplied
About the catalog options he published for. This
if the width of the waveguide is greater than its height (a> b)
in the light of the information given and the catalog details
Answer and fill in the blanks...
3) A rectangular waveguide with dimensions a -2 cm, b-1 em is filled with a medium characterized by 46.What is the cutoff frequency if at least two TM modes are to be transmitted in the waveguide? (25 points)
