(e) An aluminium alloy is to be used as a structural member and the Architect has...

Question

Question

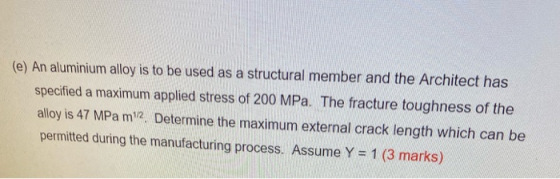

(e) An aluminium alloy is to be used as a structural member and the Architect has specified a maximum applied stress of 200 M

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

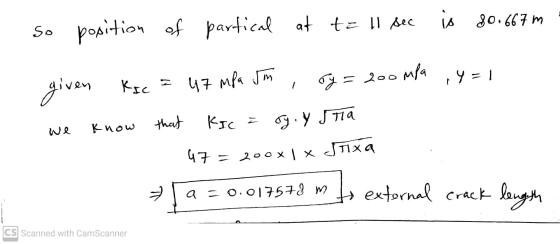

is 80.667 m so position of partical at t= 11 sec Py = 200 200 mpa 14= given Ksc = 47 mPa sm that Know KICE we ry. Y stia 47 =

Add a comment

Answer 2

Similar Homework Help Questions

(e) An aluminium alloy is to be used as a structural member and the Architect has...

(e) An aluminium alloy is to be used as a structural member and the Architect has specified a maximum applied stress of 200 MPa. The fracture toughness of the alloy is 47 MPa m1'2. Determine the maximum external crack length which can be permitted during the manufacturing process. Assume Y = 1 (3 marks) (1) For an applied stress of 200MPa, calculate the stress at the tip of a surface crack of length 0.7mm with tip radius 1.9 x 10-2...
Question 2. (Total 18 marks) 350 350 300 300 Same plot, but with expanded x axis...

Question 2. (Total 18 marks) 350 350 300 300 Same plot, but with expanded x axis 250 250 200 Stress (MPa) Stress (MPa) 150 $150 100 100 0 0 0 0.02 0.04 0.06 0.12 0.14 0.16 0.18 0 0.08 0.1 Strain 0.001 0.002 0.003 0.004 0.005 0.006 0.007 0.008 0.009 0.01 Strain (a) Determine the % elongation, yield stress and ultimate tensile strength of the material tested above (3 marks) (b) Calculate the elastic modulus of the material tested above...
1-Determine the % elongation, yield stress and ultimate tensile strength of the material tested above 2-Calculate...

1-Determine the % elongation, yield stress and ultimate tensile strength of the material tested above 2-Calculate the elastic modulus of the material tested above 3-If a 200mm cylindrical rod of the material tested above, with radius 20mm, was subjected to a tensile load of 200kN, what would the length be? 4-An underground wastewater steel pipe with 2mm walls carries an ammonia solution of 40 g/m3. The pipe is in contact with groundwater (assume 0 g/m3 ammonia). Determine the diffusion rate...

3. A structural component is fabricated from an alloy that has a plane-strain fracture toughness of...

3. A structural component is fabricated from an alloy that has a plane-strain fracture toughness of 69 MPa, m (69 MPa square root of "m"). It has been determined that this component fails at a stress of 250 MPa when the maximum length of a surface crack is 1.6 mm. What is the maximum allowable surface crack length (in mm) without fracture for this same component exposed to a stress of 250 MPa and made from another alloy that has...
1. A large plate is fabricated from a steel alloy that has a plane strain fracture toughness of 8...

1. A large plate is fabricated from a steel alloy that has a plane strain fracture toughness of 82.4 MPavm. If the plate is exposed to a tensile stress of 345 MPa during service use, determine the minimum length of a surface crack that will lead to fracture. Assume a value of 1.0 for Y. Maximum stress at tip of elliptically shaped crack Pt 2Ery, 1/2 critical stress required for crack propagation in a brittle material πα KIe YoeVra Fracture...
Question 10 (7 marks) Suppose that a BMW car component fabricated from 4340 steel alloy having...

Question 10 (7 marks) Suppose that a BMW car component fabricated from 4340 steel alloy having a plane strain fracture toughness of 50 MPavm is exposed to a stress of 950 MPa. NDT results show there are two cracks. One is a surface crack of 0.60 mm long, and the other is an internal crack of 2 mm long. Will this component experience fracture? Why or why not? Assume that the parameter Y has a value of 1.0. Kjc: Plane...

An aircraft component is fabricated from an Al alloy that has a plane strain fracture toughness...

An aircraft component is fabricated from an Al alloy that has a plane strain fracture toughness of 32 MPa·m1/2. It has been determined that fracture results at a stress of 235 MPa when the maximum internal crack length is 1.8 mm. For the same component and alloy, will fracture occur at a stress level of 310 MPa when the maximum internal crack length is 0.9 mm?
2. An aircraft component is fabricated from an aluminum alloy that has a plane strain fracture...

2. An aircraft component is fabricated from an aluminum alloy that has a plane strain fracture toughness of 35 MPa m. It has been determined that fracture results at a stress of 250 MPa when the maximum (or critical) internal crack length is 2.0 mm. For this same component and alloy, will fracture occur at a stress level of 325 MPa when the maximum internal crack length is 1.0 mm? (10 points)
Suppose that a wing component on an aircraft is fabricated from an aluminum alloy that has...

Suppose that a wing component on an aircraft is fabricated from an aluminum alloy that has a plane strain fracture toughness of 25 MPa (22.75 ksi). It has been determined that fracture results at a stress of 117 MPa (16970 psi) when the maximum internal crack length is 9.1 mm (0.3583 in.). For this same component and alloy, compute the stress level at which fracture will occur for a critical internal crack length of 5.5 mm (0.2165 in.).

A large plate is fabricated from a steel alloy that has a plane strain fracture toughness...

A large plate is fabricated from a steel alloy that has a plane strain fracture toughness of 75 MPam (68.25 ksi vin.). If the plate is exposed to a tensile stress of 347 MPa (50330 psi) during use, determine the minimum length of a surface crack that will lead to fracture. Assume a value of 0.94 for Y. mm
