11. Given a fine, dry sand with an in-place unit weight of 18.28%. The specific gravity...

Question

Question

11. Given a fine, dry sand with an in-place unit weight of 18.28%. The specific gravity of solids is 2.67. The void ratio at

engineering Civil-Engineering

Answer 1

Answer #1

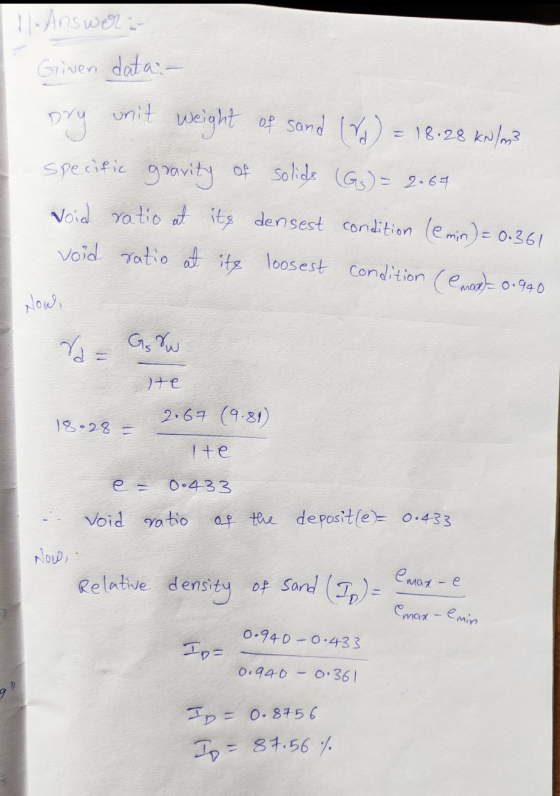

11.ANSWER:

The answer is as shown in the below handwritten notes:
