b) Given ? = ∏(1,3,4,6,9,10,11,12,14,15)

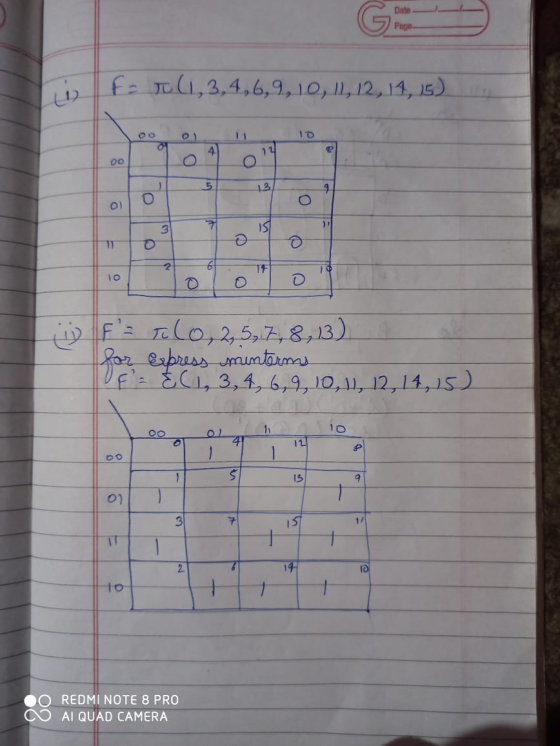

I. Express F in the form of maxterms

II. Find F’ and express in the form of minterms

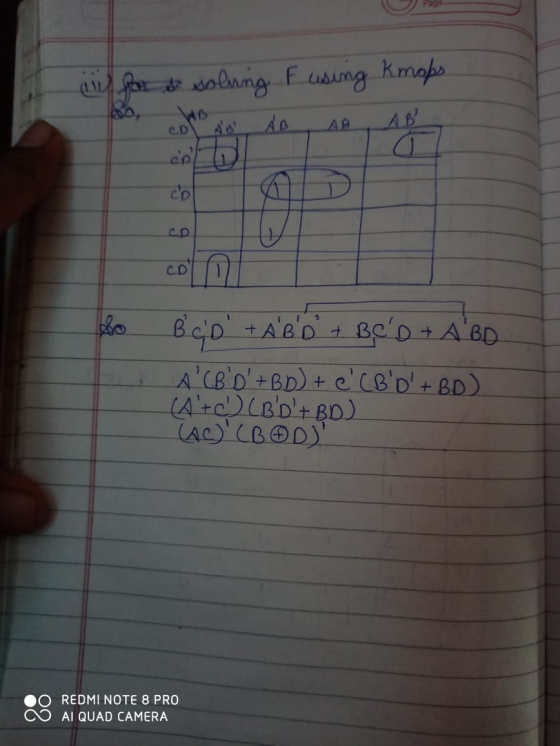

III. Express the function F using minimum number of literals

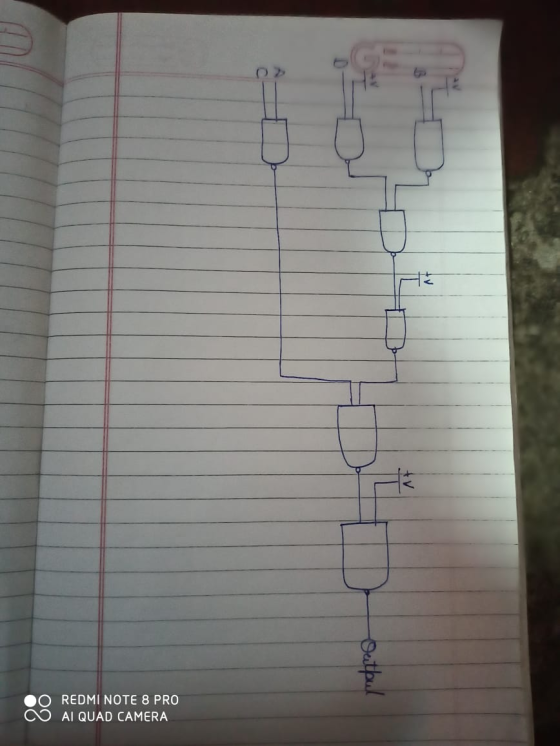

IV. Draw the circuit for the function in step 3 using NAND gates only.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Date Page ری F = T (1,3,4,6,9, 10, 11, 12, 14, 15) 10 4 14 DO 1 15 13 9 о O o 7 3 15 1 o 2 6 14 10 o 0 i Flatlo,2,5,7,8,13) f

and for & saling F using Knops ko, CD A B AB a D E Bod taBD + BCD + A BD A LBD+BD) + e (B0+BD) (Arc) CBD+ RD) (ACOutpul REDMI NOTE 8 PRO AI QUAD CAMERA
