Question

object oriented programming solve 2 quetions

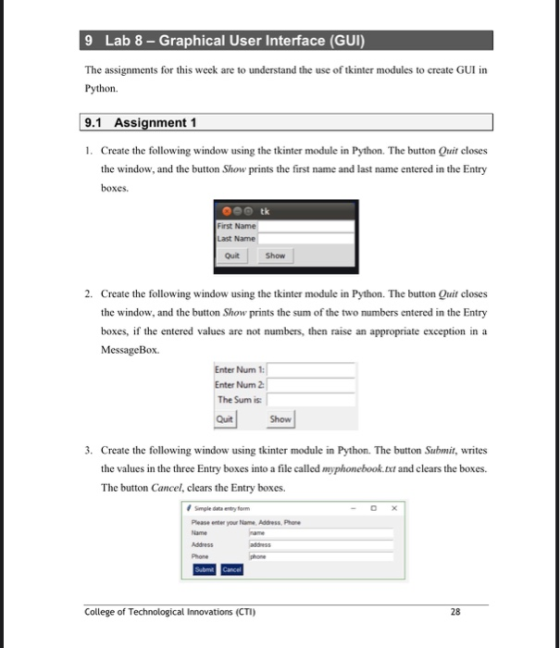

9 Lab 8 - Graphical User Interface (GUI) The assignments for this week are to understand the use of tkinter modules to create GUI in Python. 9.1 Assignment 1 1. Create the following window using the tkinter module in Python. The button Quit closes the window, and the button Show prints the first name and last name entered in the Entry boxes. First Name Last Name Quit Show 2. Create the following window using the tkinter module in Python. The button Quit closes the window, and the button Show prints the sum of the two numbers entered in the Entry boxes, if the entered values are not numbers, then raise an appropriate exception in a MessageBox. Enter Num 1: Enter Num 2 The Sum is Quit Show 3. Create the following window using tkinter module in Python. The button Submit, writes the values in the three Entry boxes into a file called myphonebook.txt and clears the boxes. The button Cancel, clears the entry boxes. Simple data entry form Please enter your Name Address Phone ame Address Phone Submit Cancel College of Technological Innovations (CTI) 28

Answer 1

Here is the answer for your question in Python Programming Language.

Question 1

CODE :

import tkinter as tk """Creates Window and sets its dimensions""" window = tk.Tk() window.geometry("350x200") """Variables to store values from entry boxes""" firstName = tk.StringVar() lastName = tk.StringVar() """Method to quit window""" def quitWindow(): window.destroy() """Method to show name""" def show(): """Gets first and last names and stores them in 'name'""" name = firstName.get() + " " + lastName.get() """Displays name""" resultLabel = tk.Label(window, text="Name : " + name) resultLabel.grid(row = 3, column = 0) """Resets entry boxes""" firstName.set("") lastName.set("") """Required GUI components""" firstNameLabel = tk.Label(window, text="First Name") firstNameEntry = tk.Entry(window, textvariable = firstName, width=25, bd=2) lastNameLabel = tk.Label(window, text="Last Name") lastNameEntry = tk.Entry(window, textvariable = lastName, width=25, bd=2) quitBtn = tk.Button(window, text = "Quit", command = quitWindow) showBtn = tk.Button(window, text = "Show", command = show) """Sets positions for GUI Components""" firstNameLabel.grid(row = 0, column = 0) firstNameEntry.grid(row = 0, column = 1) lastNameLabel.grid(row = 1, column = 0) lastNameEntry.grid(row = 1, column = 1) quitBtn.grid(row = 2, column = 0) showBtn.grid(row = 2, column = 1) window.mainloop()

SCREENSHOTS :

Please see the screenshots of the code below for indentations of the code.

I 1 UUU 1 import tkinter as tk 2 3 """Creates Window and sets its dimensions"" 4 window = tk.Tk() 5 window.geometry("350x200") 6 7 ""Variables to store values from entry boxes" 8 firstName = tk.StringVar() 9 lastName = tk.StringVar() 10 11 ""Method to quit window"" 12 def quitWindow(): 13 window.destroy() 14 15 ""Method to show name' 16 def show(): 17 "" "Gets first and last names and stores them in 'name' 18 name = firstName.get() + " " + lastName.get() 19 "" "Displays name" 20 resultLabel = tk.Label(window, text="Name : + name) 21 resultLabel.grid(row = 3, column = 0) 22 """Resets entry boxes""" 23 firstName.set("") 24 lastName.set("") 25 26 "Required GUI components" 27 firstNameLabel = tk. Label(window, text="First Name") 28 firstName Entry tk.Entry(window, textvariable = firstName, width=25, bd=2) 29 lastNameLabel tk.Label(window, text="Last Name") 30 lastName Entry = tk. Entry(window, textvariable lastName, width=25, bd=2)

30 lastName Entry = tk.Entry(window, textvariable = lastName, width=25, bd=2) 31 quitBtn = tk.Button(window, text = "Quit", command = quitWindow) 32 ShowBtn = tk.Button(window, text = "Show", command = show) 33 34 "*"Sets positions for GUI Components" 35 firstNameLabel.grid(row = 0, column = 0) 36 firstName Entry-grid(row = 0, column = 1) 37 lastNameLabel.grid(row = 1, column = 0) 38 lastName Entry-grid(row 1, column = 1) 39 quitBtn.grid(row = 2, column = 0) 40 showBtn.grid(row = 2, column 1) 41 42 window.mainloop()

OUTPUT :

tk Х First Name Last Name Quit Show

After entering names,

tk ] X First Name John Last Name Dog Quit Show

After pressing "show"

tk х First Name Last Name Quit Name: John Doe Show

##############################

Question 2

CODE :

import tkinter as tk from tkinter import messagebox """Creates Window and sets its dimensions""" window = tk.Tk() window.geometry("350x200") """Variables to store values from entry boxes""" firstNum = tk.StringVar() secondNum = tk.StringVar() added = tk.StringVar() """Method to quit window""" def quitWindow(): window.destroy() """Method to show name""" def show(): try: """Gets first and second numbers and stores their sum in 'add'""" add = int(firstNum.get()) + int(secondNum.get()) """Displays sum""" added.set(str(add)) except ValueError: messagebox.showinfo("Error", "Only numbers are allowed") """Required GUI components""" firstNumLabel = tk.Label(window, text="Enter Num 1: ") firstNumEntry = tk.Entry(window, textvariable = firstNum, width=25, bd=2) secondNumLabel = tk.Label(window, text="Enter Num 2: ") secondNumEntry = tk.Entry(window, textvariable = secondNum, width=25, bd=2) resultLabel = tk.Label(window, text="The sum is : ") resultEntry = tk.Entry(window, textvariable = added, width = 25, bd = 2) quitBtn = tk.Button(window, text = "Quit", command = quitWindow) showBtn = tk.Button(window, text = "Show", command = show) """Sets positions for GUI Components""" firstNumLabel.grid(row = 0, column = 0) firstNumEntry.grid(row = 0, column = 1) secondNumLabel.grid(row = 1, column = 0) secondNumEntry.grid(row = 1, column = 1) resultLabel.grid(row = 2, column = 0) resultEntry.grid(row = 2, column = 1) quitBtn.grid(row = 3, column = 0) showBtn.grid(row = 3, column = 1) window.mainloop()

SCREENSHOTS :

Please see the screenshots of the code below for indentations of the code. As python is a Language of indentations kindly check the indentations before execution.

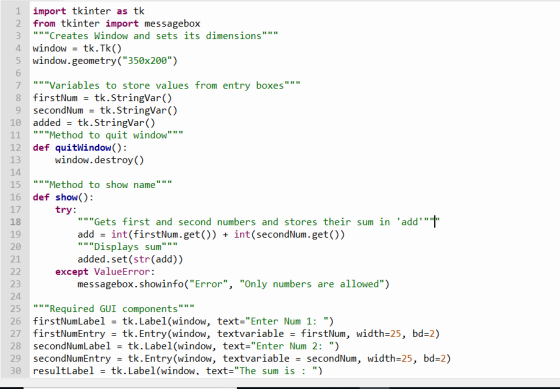

H11 1 import tkinter as tk 2 from tkinter import messagebox 3 """Creates Window and sets its dimensions"" 4 window = tk.Tk() 5 window.geometry("350x200") 6 7 "Variables to store values from entry boxes" 8 firstNum = tk.StringVar() 9 secondNum = tk.StringVar() 10 added = tk.StringVar() 11 ""Method to quit window" def quitWindow(): 13 window.destroy() 14 15 ""Method to show name 16 def show(): 17 try: 18 "Gets first and second numbers and stores their sum in 'add'"T 19 add = int(firstNum.get()) + int(secondNum.get()) 20 "" "Displays sum""" 21 added.set(str(add)) 22 except ValueError: 23 messagebox.showinfo("Error", "Only numbers are allowed") 24 25 """Required GUI components" 26 firstNumLabel = tk. Label(window, text="Enter Num 1: ") 27 firstNumEntry = tk.Entry(window, textvariable = firstNum, width=25, bd=2) 28 secondNumLabel tk.Label(window, text="Enter Num 2: ") 29 secondNumEntry tk. Entry(window, textvariable secondNum, width=25, bd=2) 30 resultLabel = tk. Label(window, text="The sum is : ")

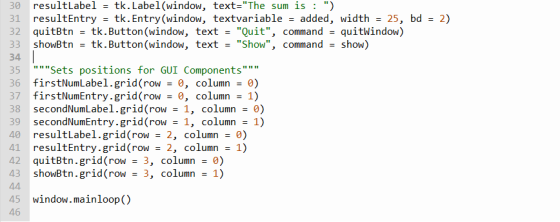

= 2) = 30 resultLabel tk.Label(window, text="The sum is : ") 31 resultEntry tk. Entry(window, textvariable = added, width = 25, bd 32 quitBtn tk.Button(window, text = "Quit", command = quitwindow) 33 showBtn = tk.Button(window, text "Show", command = show) 34 35 "Sets positions for GUI Components" 36 firstNumLabel.grid(row = 0, column 0) 37 firstNumEntry.grid(row O, column 1) 38 secondNumLabel.grid(row 1, column 0) 39 secondNumEntry-grid(row 1, column 1) 40 resultLabel.grid(row = 2, column 0) 41 resultEntry-grid(row = 2, column 1) 42 quitBtn.grid(row 3, column = 0) 43 showBtn.grid(row 3, column 1) 44 45 window.mainloop() 46

OUTPUT :

tk Enter Num 1: Enter Num 2: The sum is: Quit Show

After entering numbers and pressing "Show" button,

tk ) X Enter Num 1: 9 Enter Num 2:1 The sum is: 14 Quit Show

tk Х Enter Num 1: la Enter Num 2: The sum is : Quit Show s C except ValueError: Error x ror", "On "Red first Only numbers are allowed text="E first textvar second W, text=" second OK W, textva resultrader = TK.Lader(window, text="The

Any doubts regarding this can be explained with pleasure :)
