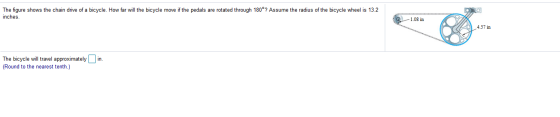

The figure shows the chain drive of a bicycle. How far will the bicycle move if the pedals are rotated through 180°? Assume t

math trigonometry

Answer 1

Answer #1

Please find the hand written solution for this question. I hope it will help you to understand. Please like and comment if you found helpful.

1.ofinch -4.57 inch 13.2.inch S=Yo will soume. wheel Given: Radius of food front Clange) gear (r) = 4.57 inch. Radius of back

Answer 2

Similar Homework Help Questions

The figure above shows the drive train of a bicycle that has wheels 67.3 cm in...

The figure above shows the drive train of a bicycle that has wheels 67.3 cm in diameter and pedal cranks 17.5 cm long. The cyclist pedals at a steady cadence of 77.5 rev/min. The chain engages with a front sprocket 15.2 cm in diameter and a rear sprocket 8.00 cm in diameter. (a) Calculate the speed of a link of the chain relative to the bicycle frame. m/s (b) Calculate the angular speed of the bicycle wheels. rad/s (c) Calculate...
A wheel has a radius of 4.68 m. How far (path length) does a point on...

A wheel has a radius of 4.68 m. How far (path length) does a point on the circumference travel if the wheel is rotated through an angle of 24.6°? How far does a point on the circumference travel if the wheel is rotated through an angle of 24.6 rad? How far does a point on the circumference travel if the wheel is rotated through an angle of 24.6 rev?
A wheel has a radius of 3.2 m. How far (path length) does a point on...

A wheel has a radius of 3.2 m. How far (path length) does a point on the circumference travel if the wheel is rotated through angles of 30°, 30 rad, and 30 rev, respectively?

A wheel has a radius of 3.90 m. How far (path length) does a point on...

A wheel has a radius of 3.90 m. How far (path length) does a point on the circumference travel if the wheel is rotated through the following angles, respectively? (a) 28.0° m (b) 28.0 rad m (c) 28.0 rev
12. The hour hand of a clock is 3 inches long. How far, in inches, does...

12. The hour hand of a clock is 3 inches long. How far, in inches, does the tip of the hand move in 9 hours? Round to the nearest tenth.
Consider the 15.0 kg motorcycle wheel shown in the figure. Assume it to be approximately an...

Consider the 15.0 kg motorcycle wheel shown in the figure. Assume it to be approximately an annular ring with an inner radius of R1 = 0.280 m and an outer radius of R2 = 0.300 m. The motorcycle is on its center stand, so that the wheel can spin freely. (a)If the drive chain exerts a force of 1800 N at a radius of 5.00 cm, what is the angular acceleration (in rad/s2) of the wheel? (b)What is the tangential...

Consider the 13.0 kg motorcycle wheel shown in the figure. Assume it to be approximately an...

Consider the 13.0 kg motorcycle wheel shown in the figure. Assume it to be approximately an annular ring with an inner radius of R1 = 0.280 m and an outer radius of R2 = 0.300 m. The motorcycle is on its center stand, so that the wheel can spin freely. (a) If the drive chain exerts a force of 2190 N at a radius of 5.00 cm, what is the angular acceleration (in rad/s2) of the wheel? rad/s2 (b) What...
Consider the 10.5 kg motorcycle wheel shown in the figure. Assume it to be approximately a...

Consider the 10.5 kg motorcycle wheel shown in the figure. Assume it to be approximately a ring with an inner radius of 0.285 m and an outer radius of 0.345 m. The motorcycle is on its center stand, so that the wheel can spin freely. Part (a) If the drive chain exerts a force of 2050 N at a radius of 5.25 cm, what is the angular acceleration of the wheel, in radians per square second? Part (b) What is...
Consider the 9.0 kg motorcycle wheel shown in the figure. Assume it to be approximately an...

Consider the 9.0 kg motorcycle wheel shown in the figure. Assume it to be approximately an annular ring with an inner radius of R4 = 0.280 m and an outer radius of R, = 0.360 m. The motorcycle is on its center stand, so that the wheel can spin freely. (a) If the drive chain exerts a force of 1950 N at a radius of 5.00 cm, what is the angular acceleration of the wheel in rad/s?? rad/s2 (b) What...

8. Consider the 13 kg motorcycle wheel shown in the figure. Assume it to be approximately...

8. Consider the 13 kg motorcycle wheel shown in the figure. Assume it to be approximately a ring with an inner radius of 0.275 m and an outer radius of 0.32 m. The motorcycle is on its center stand, so that the wheel can spin freely. a. If the drive chain exerts a force of 2100 N at a radius of 4.75 cm, what is the angular acceleration of the wheel, in radians per square second? b. What is the...
