Question 28 (1 point) In the circuit shown, i_1 is measured to be 2.4 A. What...

Question

Question

science physics

Answer 1

Answer #1

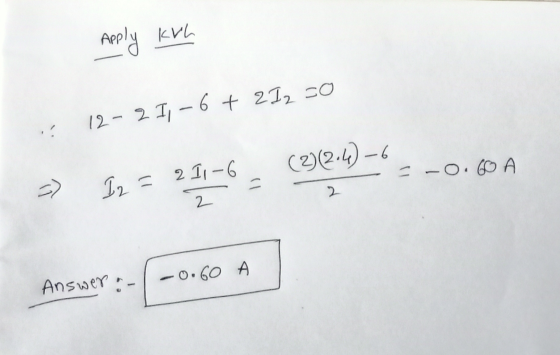

Apply Kuh 12- 211 -6 + 212 co (2) (2.4)-6 2 11-6 .O.60 => I2 = 2 0.60 Answer:

Answer 2

Similar Homework Help Questions

An electromagnet creates a uniform magnetic field which penetrates a 39-turn 15 cm diameter coil placed...

An electromagnet creates a uniform magnetic field which penetrates a 39-turn 15 cm diameter coil placed within the uniform field. At what rate must the magnetic field created by the electromagnet change in order to induce an emf of 77 volts in the coil? Question options: 15 T/s none of these 39 T/s 1.1 x 10^2 T/s 77 T/s Question An electric power tool operates from a 12 V battery rated at 1.6x10^2 ampere-hours. How much energy does this battery...
3. What is the current in the 15-Ω resistor when c-90 V? 20Ω d. 0.26A e....

3. What is the current in the 15-Ω resistor when c-90 V? 20Ω d. 0.26A e. 0.60 A a. 0.20 A b. 0.30 A c. 0.10 A 4. Determine ε when 1-0.50 A and R-12 Ω. 2R 2R a 12 V b. 24 V 30 V d, 15V e. 6.0 V What is the potential difference Va-VA when 1-0.50 A in the circuit segment shown below? 10Ω 162 15 V a. -28 V b. +2.0 V e. +28 V e....
What is the current through R1? Question 10 1 pts In the circuit shown in the...

What is the current through R1? Question 10 1 pts In the circuit shown in the figure, R1 = 60, R2 = 1200, R3 = 1800, V1 -3.0 V, V2 = 6.0 V, and the batteries are both ideal. What is the current through R1? RE -V2 R. • R₂ O 2.68 A 0.00 A O 0.050 A 0.030 A

For the multi loop circuit shown in the Figure. What is the current in each branch...

For the multi loop circuit shown in the Figure. What is the current in each branch ? SHOW all branch currents in the diagram below. SHOW your loops in the diagram below. Please TYPE or write neat so I can understand. THANK YOU!!! R1 = 2.0 22 R2 = 4.0 22 W V1 = 6.0 V R3 = 6.02 V3 = 6.0 V R5 = 10 22 V2 = 12 V R4 = 8.0 R6 = 12 22
19 28. The equivalent resistance (in 2) between points A and B of the circuit shown...

19 28. The equivalent resistance (in 2) between points A and B of the circuit shown is (3 pts) Law 300@@ 27 tome Questions 29 - 31 refer to the circuit shown below. 29. The current in the 5.0 resistor is: 3pts) (A) 0.42 A (B) 0.67 A (C) 1.5 A 6.0 (D) 2.4 A (E) 3.0 A 12 V 22 3.0 5.0 # (E) 52 30. Which resistor carries the least current? (2 ps) (A) 62 (B) 42 (C)...
Please show work! Problem-2. In the circuit shown below. (a) What is the total resistance as...

Please show work! Problem-2. In the circuit shown below. (a) What is the total resistance as seen by the battery? (b) What is the current through Rı? (c) What is the power output of the battery? (d) What is the current through Rz? (e) What is the voltage between point A and point B? R =3.0 12 R2=4.0 12 B A R,=3.0 12 Rz=6.0 R =3.02 10.0 V

For the circuit of the figure shown, (a) what is the equivalent capacitance? (b) What is...

For the circuit of the figure shown, (a) what is the equivalent capacitance? (b) What is the charge on each capacitor? Answers = (a: 5.4 μF, b: 4.0 μF: 28.8 μC. 6.0 μF: 28.8 μC, 3.0 μF: 36.0 μC) Can't seem to get to these answers. A picture of work done would be appreciated 4.0 pF 12 V 2.0 uF 1.5 F
27. For the circuit shown find: (a) the equivalent resistance of the circuit. (b) The current...

27. For the circuit shown find: (a) the equivalent resistance of the circuit. (b) The current though 242 resistor on the right branch of the circuit. 4.02 6.0 2 24 V 24 2 Lw 8.0 12 24 22 Format < B I u illi Question 28 (6 points)
Question 30 (6 points) 30. For the circuit shown: (a) What is the equivalent capacitor? (b)...

Question 30 (6 points) 30. For the circuit shown: (a) What is the equivalent capacitor? (b) What is the charge on each capacitor? 4.0 uF 12 V 2.0 uF 1.5 uF ... Ω Format BIU - Rh

1. In a 24-V DC circuit, the flow of current is measured as 8 A. What...

1. In a 24-V DC circuit, the flow of current is measured as 8 A. What is the resistance of this circuit? 2. What is the current flow in a 12-V DC simple circuit containing a total resistance of 2 ohms? 3. Determine the current for the 15-V DC circuit shown below. 20Ω 15 VT 4. Determine RT 100 Ω 300 0 RT 200 Ω 125 Ω 5. Determine Rr Ri 6. Determine Rr 20Ω 30 Ω 30 Ω 7....
