Help!

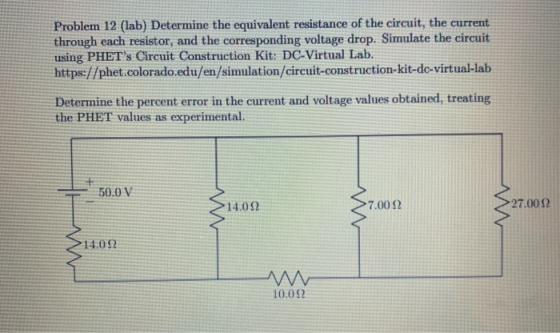

Problem 12 (lab) Determine the equivalent resistance of the circuit, the current through each resistor, and the corresponding voltage drop. Simulate the circuit using PHET's Circuit Construction Kit: DC-Virtual Lab.
https://phet.colorado.edu/en/simulation/circuit-construction-kit-dc-virtual-lab
Determine the percent error in the current and voltage values obtained, treating the PHET values as experimental.

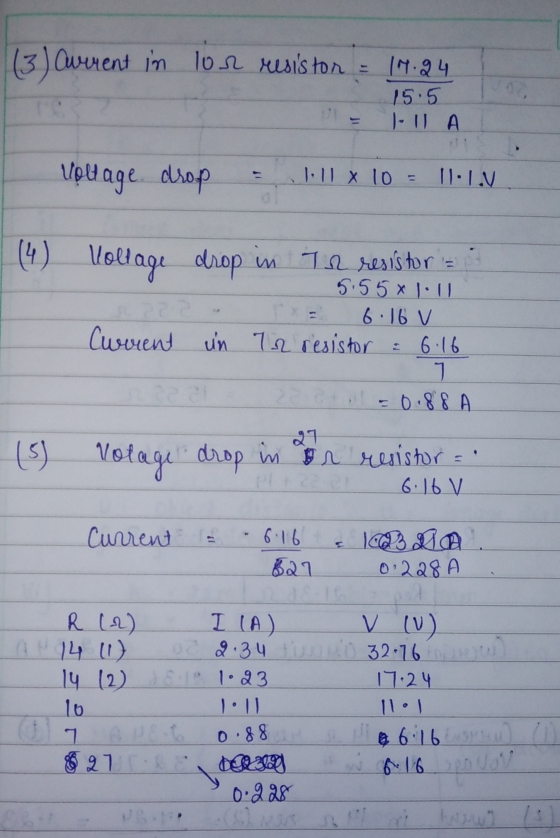

Homework Answers

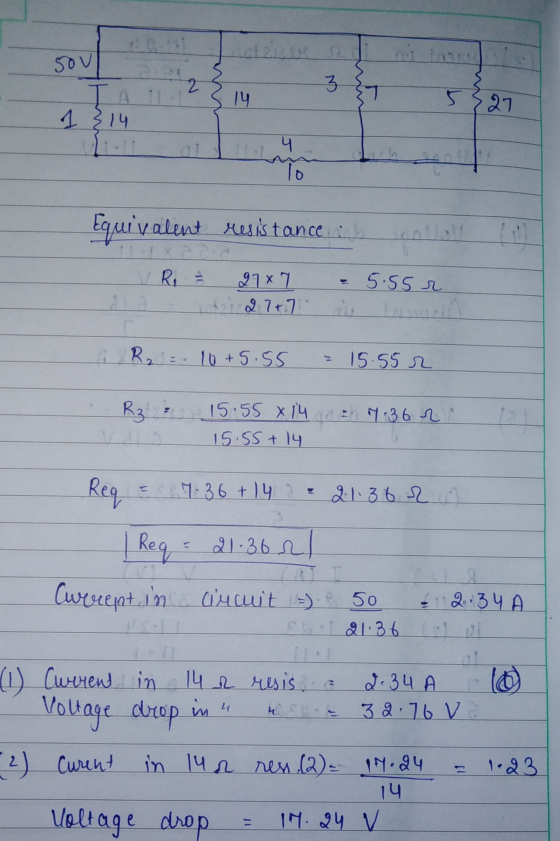

Equivalent
resistance :
Add Answer to:
Help!Problem 12 (lab) Determine the equivalent resistance of the circuit, the current through each resistor,...
Please show all work and equations needed to solve for the theoretical values. Problem 12 (lab)...
Please show all work and equations needed to solve for the
theoretical values.
Problem 12 (lab) Determine the equivalent resistance of the circuit, the current through each resistor, and the corresponding voltage drop. Simulate the circuit using PHET's Circuit Construction Kit Determine the percent error in the current and voltage values obtained, treating the PHET values as experimental. 50.0 V mu 14.012 m. 7.00 12 27.00 S2 14.012 M 10.012
Fall 2019 ECEN 206 Lab 4 Thevenin Equivalent Circuits Due First week of November Introduction: This...
Fall 2019 ECEN 206 Lab 4 Thevenin Equivalent Circuits Due First week of November Introduction: This lab focuses on the Thevenin equivalent circuit and maximum power transfer theorems Complex circuits are often replaced with their Thevenin equivalent to simplify analysis. For example, in the analysis of large industrial power systems the Thevenin equivalent is used in short circuit studies. Maximum power transfer is also an important concept which allows the designer to determine an optimal design when power is a...
3. Determine the equivalent resistance of the circuit. Then determine the current in each path, and...
3. Determine the equivalent resistance of the circuit. Then determine the current in each path, and the voltage across each resistor. Then determine the power dissipated by each resistor and the total power dissipated by the circuit. 10.0 12 W 4.000 5.00 2.00 3.002 8.00 V HE
The circuit below can be used to simulate/measure the equivalent resistance of a circuit. The voltage...
The circuit below can be used to simulate/measure the equivalent resistance of a circuit. The voltage from V, to ground will be the equivalent resistance because V-IR and in this case the current source ll is equal to 1 Amp. Note that in general Amp.s not used by a resistance meter as it can cause a too much power to be dissipated by the resistor which can burn out the resistor or change its value.) Create the circuit shown below...
1) what is the equivalent resistance of this circuit? 2) what is the current through each...
1) what is the equivalent resistance of this circuit?
2) what is the current through each resistor?
3) what is the voltage across each resistor?
1. What is the equivalent resistance of this circuit? 2. What is the current through each resistor? 3. What is the voltage across each resistor? R1 -WE Vbat = 24V + R2 3 twt twt 3 R3 -W- R4 (A) V) TR() RI 2 R2 6 R3 1 R44 V- IR A V... = 0
2) The 492 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the val...
2) The 492 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below? 12
(a) What is the equivalent resistance of this circuit? That is, what would be the resistance...
(a) What is the equivalent
resistance of this circuit? That is, what would be the resistance
of a single resistor that would draw the same current and power as
this circuit does?
My answer: 135.1 OHMS
(b) What is the current in resistor “K”?
My answer: 0.114A
(c) What is the potential drop (voltage) across resistor
“M”?
(d) How much power is being delivered to resistor “N”?
(e) What is the current in resistor “O”?
Please help me with C,D,...
1000 11. Determine the equivalent resistance of the circuit. Then determine the current in each path,...
1000 11. Determine the equivalent resistance of the circuit. Then determine the current in each path, and the voltage across each resistor. Then determine the power dissipated by each resistor and the total power dissipated by the circuit. Assume the voltage of the source is 110V. 120.02 W R, R. 60.22 w R R, 60312 R, 602 4012 w R, R, 8012 두 R. w 1001 12. Determine the cach of the currents in each path, and the voltages across...
3. Determine the equivalent resistance of the circuit. Then determine the current in each path, and...
3. Determine the equivalent resistance of the circuit. Then determine the current in each path, and the voltage across each resistor. Then determine the power dissipated by each resistor and the total power dissipated by the circuit 10.02 W 4.000 w 5.000 w 2.000 3.000 w 8,00 V 4. Determine the each of the currents in each path, and the voltages across each resistor. E = 24.0 V 0.1002 R 5.0 22 RS 2022 E2 = 48.0 V RE 17,...
Problem # 3 Determine the voltage drop and the current through each resistor in a circuit...
Problem # 3 Determine the voltage drop and the current through each resistor in a circuit composed of three resistors (5, 10 and 20 ohms) connected in parallel with a 12 V voltage source.
Please show all work and equations needed to solve for the
theoretical values.
Problem 12 (lab) Determine the equivalent resistance of the circuit, the current through each resistor, and the corresponding voltage drop. Simulate the circuit using PHET's Circuit Construction Kit Determine the percent error in the current and voltage values obtained, treating the PHET values as experimental. 50.0 V mu 14.012 m. 7.00 12 27.00 S2 14.012 M 10.012
Fall 2019 ECEN 206 Lab 4 Thevenin Equivalent Circuits Due First week of November Introduction: This lab focuses on the Thevenin equivalent circuit and maximum power transfer theorems Complex circuits are often replaced with their Thevenin equivalent to simplify analysis. For example, in the analysis of large industrial power systems the Thevenin equivalent is used in short circuit studies. Maximum power transfer is also an important concept which allows the designer to determine an optimal design when power is a...
3. Determine the equivalent resistance of the circuit. Then determine the current in each path, and the voltage across each resistor. Then determine the power dissipated by each resistor and the total power dissipated by the circuit. 10.0 12 W 4.000 5.00 2.00 3.002 8.00 V HE
The circuit below can be used to simulate/measure the equivalent resistance of a circuit. The voltage from V, to ground will be the equivalent resistance because V-IR and in this case the current source ll is equal to 1 Amp. Note that in general Amp.s not used by a resistance meter as it can cause a too much power to be dissipated by the resistor which can burn out the resistor or change its value.) Create the circuit shown below...
1) what is the equivalent resistance of this circuit?
2) what is the current through each resistor?
3) what is the voltage across each resistor?
1. What is the equivalent resistance of this circuit? 2. What is the current through each resistor? 3. What is the voltage across each resistor? R1 -WE Vbat = 24V + R2 3 twt twt 3 R3 -W- R4 (A) V) TR() RI 2 R2 6 R3 1 R44 V- IR A V... = 0
2) The 492 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below? 12
(a) What is the equivalent
resistance of this circuit? That is, what would be the resistance
of a single resistor that would draw the same current and power as
this circuit does?
My answer: 135.1 OHMS
(b) What is the current in resistor “K”?
My answer: 0.114A
(c) What is the potential drop (voltage) across resistor
“M”?
(d) How much power is being delivered to resistor “N”?
(e) What is the current in resistor “O”?
Please help me with C,D,...
1000 11. Determine the equivalent resistance of the circuit. Then determine the current in each path, and the voltage across each resistor. Then determine the power dissipated by each resistor and the total power dissipated by the circuit. Assume the voltage of the source is 110V. 120.02 W R, R. 60.22 w R R, 60312 R, 602 4012 w R, R, 8012 두 R. w 1001 12. Determine the cach of the currents in each path, and the voltages across...
3. Determine the equivalent resistance of the circuit. Then determine the current in each path, and the voltage across each resistor. Then determine the power dissipated by each resistor and the total power dissipated by the circuit 10.02 W 4.000 w 5.000 w 2.000 3.000 w 8,00 V 4. Determine the each of the currents in each path, and the voltages across each resistor. E = 24.0 V 0.1002 R 5.0 22 RS 2022 E2 = 48.0 V RE 17,...
