Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.OuF,...

Question

Question

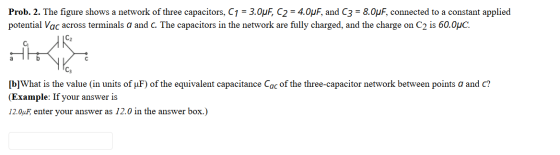

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.OuF, and C3 = 8.OuF, connected to a constant appl

science physics

Answer 1

Answer #1

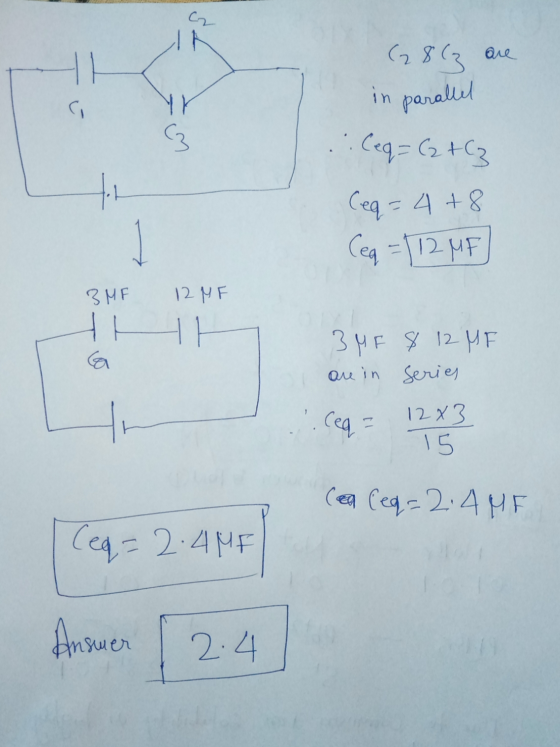

C (2 2863 are in parallel VY wo Ceq = (2+63 th Ceq = 4 +8 Ceq=112ME BMF 12 ME HE 3 MF $ 12 MF ou in Series Ceq - 12 X 3 15 ce

Answer 2

Similar Homework Help Questions

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0uF,...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0uF, and C3 = 8.0uF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0uc. C2 th с [b]What is the value (in units of uF) of the equivalent capacitance Cac of the three-capacitor network between points d and c? (Example: If your answer is 12.0uF, enter your...
Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 =...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 = 4.0uF, and C3 = 8.0uF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0uc. C2 C [a] What is the charge (in units of uC) on capacitor Cz? (Example: If your answer is 75.0°C, enter your answer as 75.0 in the answer box.) Prob. 2. The...
Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0uF,...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0uF, and (3 = 8.OPF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0°C. Historia [a] What is the charge (in units of uC) on capacitor C3? (Example: If your answer is 75.0uC, enter your answer as 75.0 in the answer box.)

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0 uF, and C3 = 8.0uF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0uc. C2 c (c) What is the potential difference (in units of Volts) across C1? (Reminder: Do not put units in the answer box).
Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0uF,...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0uF, C2 = 4.0uF, and C3 = 8.0uF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0°C. ito Cg [c] What is the potential difference (in units of Volts) across C1? (Reminder: Do not put units in the answer box).
The figure shows a network of three capacitors, C1 = 3.0μF, C2 = 4.0μF, and C3...

The figure shows a network of three capacitors, C1 = 3.0μF, C2 = 4.0μF, and C3 = 8.0μF, connected to a constant applied potential Vacacross terminals a and c. The capacitors in the network are fully charged, and the charge on C2 is60.0μC. a. What is the charge (in units of μC) on capacitor C3? b. What is the value (in units of μF) of the equivalent capacitance Cacof the three-capacitor network between points a andc? c. What is the...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 =...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 = 4.0uF, and C3 = 8.0uF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0uc. C2 C [a] What is the charge (in units of uC) on capacitor Cz? (Example: If your answer is 75.0°C, enter your answer as 75.0 in the answer box.) Prob. 3 In...
3. You are given three capacitors C1 10.0 uF, C2 = 20.0 uF and C3 =...

3. You are given three capacitors C1 10.0 uF, C2 = 20.0 uF and C3 = 40.0 uF. The capacitors are connected as shown. The capacitors start out discharged, and then a battery (not shown) is connected between points A and B and all three capacitors become fully charged. C1 C2 A) [3 pts] Using and “=”, rank from greatest to least the charges on the A capacitors, Q1, Q2, Q3. Using physical principles (not just rules), explain. HA C3...
Two capacitors (C1 = 70 uF and C2 = 75 uF) are connected in parallel. A...

Two capacitors (C1 = 70 uF and C2 = 75 uF) are connected in parallel. A third capacitor (C3 = 204 uF) is then placed in series with the first two. The entire configuration is then placed in series with a 8.5-Volt battery. Find the charge on and the potential difference across each capacitor (in uC and Volts, respectively), once they are fully charged.

Three capacitors of capacitance C1=3.50 μF, C2 =9.00 μF, and C3=12.0 μF are connected to a...

Three capacitors of capacitance C1=3.50 μF, C2 =9.00 μF, and C3=12.0 μF are connected to a 40.0 V battery as shown in the figure. Calculate the charge on C3. 2.45×10-4 C Y Calculate the voltage across C1. You can use your answer to the previous problem to find the voltage across C3, and then find the voltage across C1. Or you can find the charge across the parallel combination of C1 and C2, then find the voltage.
