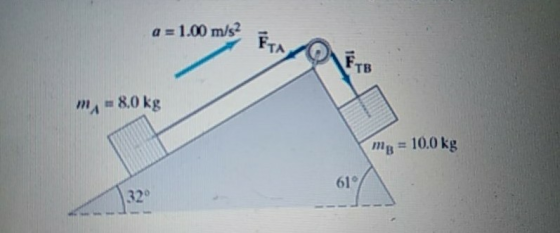

Two blocks are connected by a light rope that passes over a pulley of 0.15 m radius and moment of inertia I. The blocks move to the right with an acceleration of 1.00 m / s2 on ramps with coefficients of kinetic friction of 0.1 between the blocks and the inclined plane
a) Find the net torque (Nm) acting on the pulley
b) Determine its moment of inertia I (in Kg / m2)
Homework Answers
Add Answer to:
Two blocks are connected by a light rope that passes
over a pulley of 0.15 m...
Two blocks are connected by a light rope passing over a pulley of 0.15 m radius...
Two blocks are connected by a light rope passing over a pulley of 0.15 m radius and moment of inertia I. The blocks move to the right with an acceleration of 1 m / son ramps with coefficients of kinetic fiction 0.1 between the blocks and the inclined plane a 1.00 m 2 m = 80 kg mg = 10.0 kg 61 32 a) Find the net torque (Nm) acting on the pulley b) Determine its moment of inertia (kgm^2)
need help with content 46. (II) Two blocks are connected by a light string passing over...
need help with content
46. (II) Two blocks are connected by a light string passing over a pulley of radius 0.15 m and moment of inertia I The blocks move (towards the right) with an acceleration of 1.00 m/s along their frictionless inclines (see Fig.8-51). (a) Draw free-body diagrams for each of the two blocks and the pulley. (b) Determine FrA and FTB, the tensions in the two parts of the string. (c) Find the net torque acting on the...
Two blocks are connected by a massless rope that passes over a pulley. The pulley is...
Two blocks are connected by a massless rope that passes over a pulley. The pulley is 12 cm in diameter and has a mass of 2.0 kg. As the pulley turns, friction at the axle exerts a torque of magnitude 0.50 Nm. If the blocks are released from rest, how long does it take the 4.0-kg block to reach the floor? 4.0 kg 1.0 m Answer: 2.0 kg t = 1.1 s
Two blocks are connected by a rope that passes over a massless and frictionless pulley as...
Two blocks are connected by a rope that passes over a massless and frictionless pulley as shown in the figure below. Given that mı = 18.96 kg and m2 = 10.48 kg, determine the magnitudes of the tension in the rope and the blocks' acceleration. T = a = m/s2 (Enter the magnitude.) m2 Need Help? Read It
The two blocks in the figure below are connected by a massless rope that passes over...
The two blocks in the figure below are connected by a massless
rope that passes over a pulley. The pulley has a diameter of 10 cm.
Block A has a mass of 4.0 kg and block B has a mass of 2.0 kg.
Block A is accelerating downward at 2.5 m/s2. What is
the moment of inertia, I, of the pulley?
How do you solve this problem using free body diagrams and
Newton second law? Please show all the steps....
7. A mass (mı) is connected by a light string that passes over a pulley of...
7. A mass (mı) is connected by a light string that passes over a pulley of mass (m3) to a mass (m2) as shown in the figure. There is no slippage between the string and the pulley. The coefficient of kinetic friction between the mass (mi) and the horizontal surface is 0.25. The inclined surface is frictionless and makes an angle of 30.0° with the horizontal. The moment of inertia of the pulley is 1m3r2. What is the magnitude of...
The two blocks in the figure(Figure 1) are connected by a massless rope that passes over a pulley. The pulley is 12 cm i...
The two blocks in the figure(Figure 1) are connected by a
massless rope that passes over a pulley. The pulley is 12 cm in
diameter and has a mass of 3.0 kg . As the pulley turns, friction
at the axle exerts a torque of magnitude 0.52 N⋅m .Part AIf the blocks are released from rest, how long does it take the
4.0 kg block to reach the floor?
The two blocks in the figure(Figure 1) are connected by a massless rope that passes over a pulley
The two blocks in the figure(Figure 1) are connected by a massless rope that passes over a pulley. The pulley is 14 cm in diameter and has a mass of 3.0 kg As the pulley turns, friction at the axle exerts a torque of magnitude 0.53 N.m. Part A If the blocks are released from rest, how long does it take the 4.0 kg block to reach the floor?
The two blocks in the figure Figure 1) are connected by a massless rope that passes over a pulley
The two blocks in the figure Figure 1) are connected by a massless rope that passes over a pulley. The pulley is 14 cm In diameter and has a mass of 2.1 kg. As the pulley turns, friction at the axle exerts a torque of magnitude 0.52 N·m. Part A If the blocks are released from rest, how long does it take the 4.0 kg block to reach the floor?
Two blocks are connected by a light string passing over a pulley of radius 0.40 m and moment of inertia I. The...
Two blocks are connected by a light string passing over a pulley of
radius 0.40 m and moment of inertia I.
The blocks move (towards the right) with an acceleration of1.00 m/s2along their frictionless inclines (see the figure).(a) Draw free-body diagrams for each of the two blocks and the
pulley. (Do this on paper. Your instructor may ask you to turn in
this work.)(b) Determine FTA and FTB, the
tensions in the two parts of the string.FTA =NFTB =N(c) Find...
Two blocks are connected by a light rope passing over a pulley of 0.15 m radius and moment of inertia I. The blocks move to the right with an acceleration of 1 m / son ramps with coefficients of kinetic fiction 0.1 between the blocks and the inclined plane a 1.00 m 2 m = 80 kg mg = 10.0 kg 61 32 a) Find the net torque (Nm) acting on the pulley b) Determine its moment of inertia (kgm^2)
need help with content
46. (II) Two blocks are connected by a light string passing over a pulley of radius 0.15 m and moment of inertia I The blocks move (towards the right) with an acceleration of 1.00 m/s along their frictionless inclines (see Fig.8-51). (a) Draw free-body diagrams for each of the two blocks and the pulley. (b) Determine FrA and FTB, the tensions in the two parts of the string. (c) Find the net torque acting on the...
Two blocks are connected by a massless rope that passes over a pulley. The pulley is 12 cm in diameter and has a mass of 2.0 kg. As the pulley turns, friction at the axle exerts a torque of magnitude 0.50 Nm. If the blocks are released from rest, how long does it take the 4.0-kg block to reach the floor? 4.0 kg 1.0 m Answer: 2.0 kg t = 1.1 s
Two blocks are connected by a rope that passes over a massless and frictionless pulley as shown in the figure below. Given that mı = 18.96 kg and m2 = 10.48 kg, determine the magnitudes of the tension in the rope and the blocks' acceleration. T = a = m/s2 (Enter the magnitude.) m2 Need Help? Read It
The two blocks in the figure below are connected by a massless
rope that passes over a pulley. The pulley has a diameter of 10 cm.
Block A has a mass of 4.0 kg and block B has a mass of 2.0 kg.
Block A is accelerating downward at 2.5 m/s2. What is
the moment of inertia, I, of the pulley?
How do you solve this problem using free body diagrams and
Newton second law? Please show all the steps....
7. A mass (mı) is connected by a light string that passes over a pulley of mass (m3) to a mass (m2) as shown in the figure. There is no slippage between the string and the pulley. The coefficient of kinetic friction between the mass (mi) and the horizontal surface is 0.25. The inclined surface is frictionless and makes an angle of 30.0° with the horizontal. The moment of inertia of the pulley is 1m3r2. What is the magnitude of...
Two blocks are connected by a light string passing over a pulley of
radius 0.40 m and moment of inertia I.
The blocks move (towards the right) with an acceleration of1.00 m/s2along their frictionless inclines (see the figure).(a) Draw free-body diagrams for each of the two blocks and the
pulley. (Do this on paper. Your instructor may ask you to turn in
this work.)(b) Determine FTA and FTB, the
tensions in the two parts of the string.FTA =NFTB =N(c) Find...
