Homework Answers
Add Answer to:

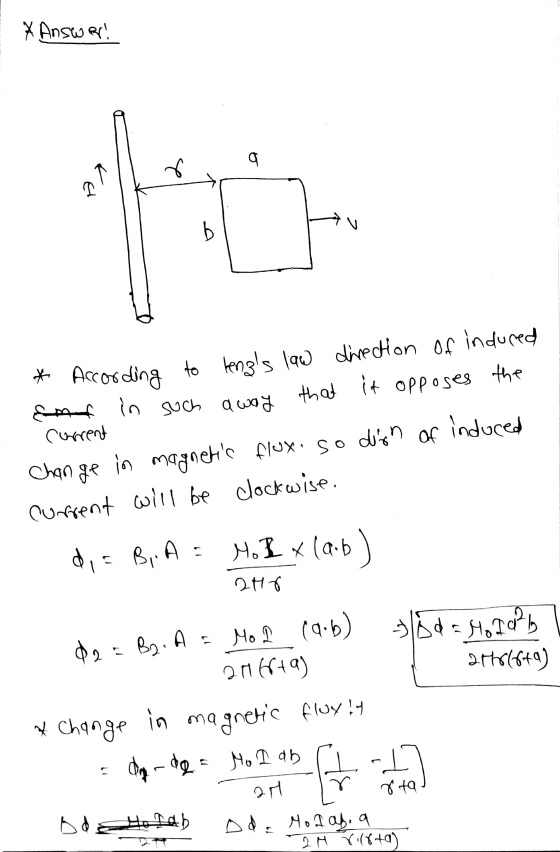

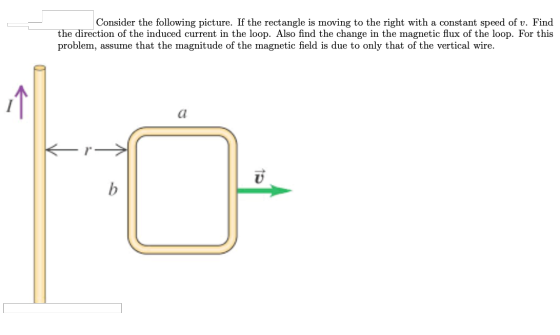

Consider the following picture. If the rectangle is moving to the right with a constant speed...
A square loop of wire with side length 10 cm is moving to the right with...
A square loop of wire with side length 10 cm is moving to the right with constant speed of 16 m/s. The loop has total resistance of .8 ohms. It begins in a region with no magnetic field, then enters a region of magnetic field (wider than 10 cm) with a strength of .5 T pointing out of the page. a) while entering the field what is the direction of the induced current as seen from above the plane of...
A loop of wire in the shape of a rectangle of width w and length L and a long
A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below.(a) Determine the magnetic flux through the loop due to the current I. (Use any variable stated above along with the following as necessary: μ₀ . )ΦB=(b) Suppose the current is changing with time according to I=a+b t, where a and b are constants. Determine the...
A rectangular wire loop located in the plane of the page has a width L, and its length. X
A rectangular wire loop located in the plane of the page has a width L, and its length. X. is determined by the position a movable rail that forms the fourth side of the rectangle, as shown. The total electrical resistance of the wire loop is R, and an externally applied magnetic field, B, is directed out of the page. The rail is moving towards the right with speed v. Assume that the x direction is towards the right of...
To practice Tactics Box 25.1Using Lenz's law. Lenz's law is a useful rule for determining...
To practice Tactics Box 25.1
Using Lenz's law. Lenz's law is a useful rule for determining the
direction of the induced current in a loop. Specifically, it says
that there is an induced current in a closed conducting loop if and
only if the magnetic flux through the loop is changing. The
direction of the induced current is such that the induced magnetic
field opposes the change in the flux. The following Tactics Box
summarizes the essential steps in using...
A flat rectangular wire loop is positioned next to a long straight current-carrying wire
Problem 6: A flat rectangular wire loop is positioned next to a long straight current-carrying wire. Both the loop and the wire are in the plane of the page, and the direction of the current is clearly indicated in the figure.Part (a) Which image best indicates the direction of the magnetic field due to the current in the long straight wire at a point inside the loop? Part (b) How does the magnitude of the magnetic field change as the perpendicular...
An L = 59.0 cm wire is moving to the right at a speed of v...
An L = 59.0 cm wire is moving to the right at a speed of v = 7.30 m/s across two parallel wire rails that are connected on the left side, as shown in the figure. The whole apparatus is immersed in a uniform magnetic field that has a magnitude of B = 0.790 T and is directed into the screen. What is the emf E induced in the wire? Region of magnetic field pointing into the screen. A U...
A long straight wire carrying a current of 2.03 A moves with a constant speed v...
A long straight wire carrying a current of 2.03 A moves with a constant speed v to the right. A 120 turn circular coil of diameter 1.50 cm, and resistance of 3.25 u 2, lies stationary in the same plane as the straight wire. At some initial time the wire is to the left of the coil at a distance d = 13.0 cm from its center. 5.00 s later, the wire has moved to the right of the coil...
A charged particle is moving in a uniform, constant magnetic field. Which one of the following...
A charged particle is moving in a uniform, constant magnetic field. Which one of the following statements concerning the magnetic force exerted on the particle is false It does no work on the particle. It increases the speed of the particle. It changes the velocity of the particle. It can act only on a particle in motion. It does not change the kinetic energy of the particle. A circular current loop with radius of 0.100 m is located in the...
Problem 7: For each situation shown below, indicate • the direction of the area vector you...
Problem 7: For each situation shown below, indicate • the direction of the area vector you have chosen (direction of positive flux) the sign of the flux using that area vector • whether the flux is increasing or decreasing the direction of the induced magnetic field • the direction of the induced current . • the direction of the net force on the loop Loop of wire I - Increasing a) Loop near a wire with current increasing Loop of...
Question 23 (1 point) A rectangular loop of wire is moving inside of a constant magnetic...
Question 23 (1 point) A rectangular loop of wire is moving inside of a constant magnetic field that is pointed into the screen. What is the direction of the induced current in the loop of wire? What is the direction of the induced magnetic field? Moving loop The current is in the counter-clockwise direction and the induced field is into the screen. The current is in the clockwise direction and the induced field is into the screen. The current is...
To practice Tactics Box 25.1
Using Lenz's law. Lenz's law is a useful rule for determining the
direction of the induced current in a loop. Specifically, it says
that there is an induced current in a closed conducting loop if and
only if the magnetic flux through the loop is changing. The
direction of the induced current is such that the induced magnetic
field opposes the change in the flux. The following Tactics Box
summarizes the essential steps in using...
A long straight wire carrying a current of 2.03 A moves with a constant speed v to the right. A 120 turn circular coil of diameter 1.50 cm, and resistance of 3.25 u 2, lies stationary in the same plane as the straight wire. At some initial time the wire is to the left of the coil at a distance d = 13.0 cm from its center. 5.00 s later, the wire has moved to the right of the coil...
A charged particle is moving in a uniform, constant magnetic field. Which one of the following statements concerning the magnetic force exerted on the particle is false It does no work on the particle. It increases the speed of the particle. It changes the velocity of the particle. It can act only on a particle in motion. It does not change the kinetic energy of the particle. A circular current loop with radius of 0.100 m is located in the...
Problem 7: For each situation shown below, indicate • the direction of the area vector you have chosen (direction of positive flux) the sign of the flux using that area vector • whether the flux is increasing or decreasing the direction of the induced magnetic field • the direction of the induced current . • the direction of the net force on the loop Loop of wire I - Increasing a) Loop near a wire with current increasing Loop of...
Question 23 (1 point) A rectangular loop of wire is moving inside of a constant magnetic field that is pointed into the screen. What is the direction of the induced current in the loop of wire? What is the direction of the induced magnetic field? Moving loop The current is in the counter-clockwise direction and the induced field is into the screen. The current is in the clockwise direction and the induced field is into the screen. The current is...
