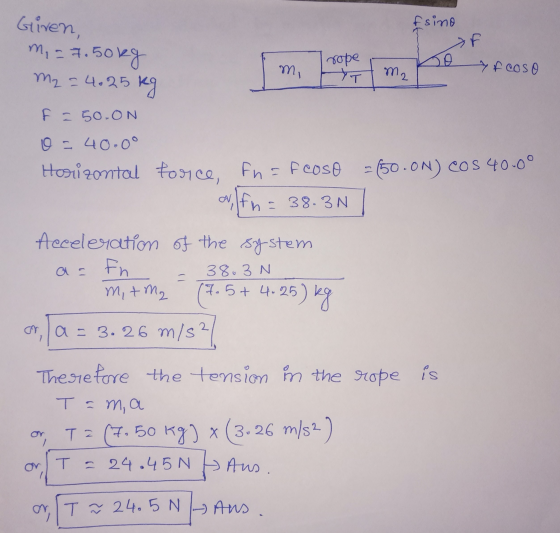

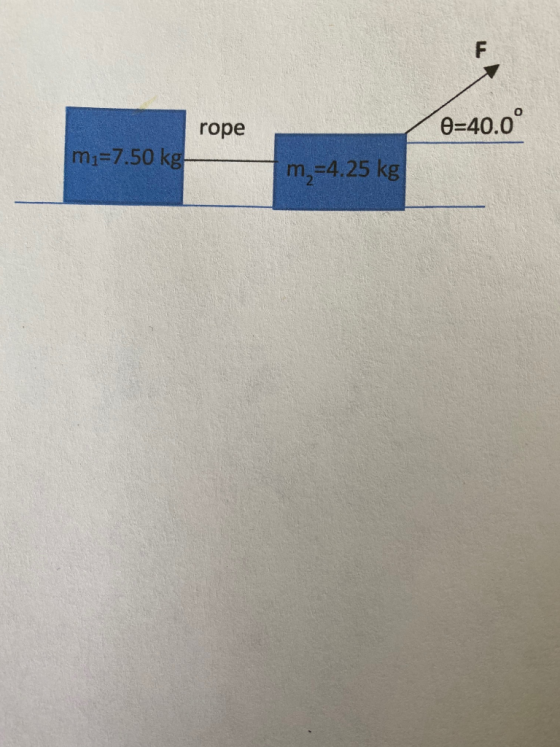

Two Boxes are attached by a rope and pulled across a level, frictionless floor with a force of 50.0 N as pictured. Determine the tension in the rope connecting the boxes.
Homework Answers
Add Answer to:
Two Boxes are attached by a rope and pulled across a level,
frictionless floor with a...
Three crates with various contents are being pulled by a 3575-N force across a horizontal, frictionless...
Three crates with various contents are being pulled by a 3575-N
force across a horizontal, frictionless roller-conveyor system. The
group of boxes is accelerating on the conveyor at 1.578 m/s2 to the
right. Between each adjacent pair of boxes is a force meter that
measures the magnitude of the tension in the connecting rope.
Assume that the ropes and force meters are massless.
A 57-kg packing crate is pulled with constant speed across a rough floor with a rope...
A 57-kg packing crate is pulled with constant speed across a rough floor with a rope that is at an angle of 40 ∘ above the horizontal. If the tension in the rope is 142 N, how much work is done on the crate by the rope to move it 5.1 m?
A 57-kg packing crate is pulled with constant speed across a rough floor with a rope...
A 57-kg packing crate is pulled with constant speed across a rough floor with a rope that is at an angle of 42 ∘ above the horizontal. If the tension in the rope is 172 N, how much work is done on the crate by the rope to move it 6.1 m?
12. A crate is pulled across a horizontal floor by a rope tied to the crate....
12. A crate is pulled across a horizontal floor by a rope tied to the crate. The rope makes an angle of 37 degrees with the horizontal. Find the frictional force if the tension in the rope is 10N and the crate moves with constant velocity. a. 3.0 N b. 5.0 N c. 7.0 N d. 8.0 N e. None of them 13. A 1500 kg car travels at a speed of 20 m/s. What is its kinetic energy? a....
1.A block of mass m = 5.00 kg is pulled along a horizontal frictionless floor by...
1.A block of mass m = 5.00 kg is pulled along a horizontal frictionless floor by a cord that exerts a force of magnitude F = 12.0 N at an angle θ = 25o . (a) Draw the free body diagram of the block. (b) Find the normal force. 2.Two crates are at rest on frictionless horizontal surface. Both crates are connected by a light rope. A woman wearing golf shoes (so she can get traction on the ice) pulls...
A large box of mass M is pulled across a horizontal, frictionless surface by a horizontal...
A large box of mass M is pulled across a horizontal, frictionless surface by a horizontal rope with tension T. A small box of mass m sits on top of the large box. The coefficients of static and kinetic friction between the two boxes are μs and μk, respectively. PART A: Find an expression for the maximum tension Tmax for which the small box rides on top of the large box without slipping. Express your answer in terms of the...
I. A rope used to pull a 15 kg box across a level floor at a...
I. A rope used to pull a 15 kg box across a level floor at a co nstant speed makes à 25o angle with the horizontal. The tension in the rope is 50 N. Determine the coefficient of friction between the box and the floor. (.359) 2. If the tension in the rope in the previous problem is increased to 100 N and the coefficient of friction stayed the same, what would be the new acceleration? (3.53m/s2)
A 15.0 kg box is being pulled across a rough floor at a constant acceleration of 3.00 m/s^2 by means of a rope. The rope...
A 15.0 kg box is being pulled across a rough floor at a constant acceleration of 3.00 m/s^2 by means of a rope. The rope makes an angle of 34.0 degrees above the horizontal. The coefficient of kinetic friction between the floor and the box is u=0.250. Calculate the magnitude of the tension in the rope?
A person pulls on a 8.7 kg crate as it slides across a level floor using...
A person pulls on a 8.7 kg crate as it slides across a level floor using a rope attached to the center of the crate. The floor has a non-zero coefficient of kinetic friction. The crate began with a speed of 1.4 m/s and speeded up to 2.4 m/s while being pulled a horizontal distance of 2.0 meters. If the force exerted by the rope is 20 Newtons, and the rope pulls completely horizontally, what is the work in J...
A person pulls on a 9.4 kg crate as it slides across a level floor using...
A person pulls on a 9.4 kg crate as it slides across a level floor using a rope attached to the center of the crate. The floor has a non-zero coefficient of kinetic friction. The crate began with a speed of 1.9 m/s and speeded up to 2.8 m/s while being pulled a horizontal distance of 2.0 meters. If the force exerted by the rope is 20 Newtons, and the rope pulls completely horizontally, what is the work in J...
Three crates with various contents are being pulled by a 3575-N
force across a horizontal, frictionless roller-conveyor system. The
group of boxes is accelerating on the conveyor at 1.578 m/s2 to the
right. Between each adjacent pair of boxes is a force meter that
measures the magnitude of the tension in the connecting rope.
Assume that the ropes and force meters are massless.
12. A crate is pulled across a horizontal floor by a rope tied to the crate. The rope makes an angle of 37 degrees with the horizontal. Find the frictional force if the tension in the rope is 10N and the crate moves with constant velocity. a. 3.0 N b. 5.0 N c. 7.0 N d. 8.0 N e. None of them 13. A 1500 kg car travels at a speed of 20 m/s. What is its kinetic energy? a....
I. A rope used to pull a 15 kg box across a level floor at a co nstant speed makes à 25o angle with the horizontal. The tension in the rope is 50 N. Determine the coefficient of friction between the box and the floor. (.359) 2. If the tension in the rope in the previous problem is increased to 100 N and the coefficient of friction stayed the same, what would be the new acceleration? (3.53m/s2)
