Homework Answers
Since magnetic field is decreasing so electric field will have a direction which will oppose the decrease in magnetic field. So correct answer is option B.
Add Answer to:

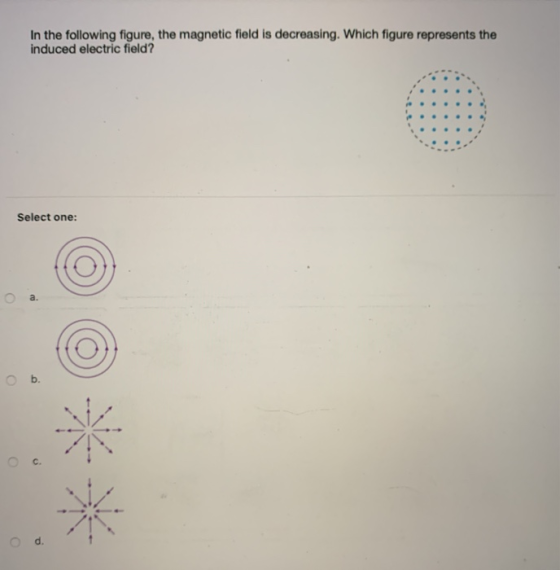

In the following figure, the magnetic field is decreasing. Which figure represents the induced electric field?...
Magnetodynamics Problem 1 (Induced Electric Field by Circular Magnetic Field) Consider a uniform magnetic field which...
Magnetodynamics Problem 1 (Induced Electric Field by Circular Magnetic Field) Consider a uniform magnetic field which points into the page and is confined to a circular region with radius R. Suppose the magnitude of B increases with time, i.e. dB/dt > 0. Find the induced electric field everywhere due to the changing magnetic field.
Magnetodynamics Problem 1 (Induced Electric Field by Circular Magnetic Field) Consider a uniform magnetic field which...
Magnetodynamics Problem 1 (Induced Electric Field by Circular Magnetic Field) Consider a uniform magnetic field which points into the page and is confined to a circular region with radius R. Suppose the magnitude of B increases with time, i.e. dB/dt > 0. Find the induced electric field everywhere due to the changing magnetic field.
1) Which of Maxwell's equations below predicts an induced magnetic field due to changes in an...
1) Which of Maxwell's equations below predicts an induced magnetic field due to changes in an electric field? A) #Edi = 9 B) B. dA= 0 D$B.ds = Hole + Hope E) All of them 2) In the figure, two parallel wires carry currents of magnitude / as shown. The current is decreasing with time. A rectangular loon is midway between the wires. What is the direction of the net magnetic field in the region between the wires and that...
In this figure, a metal bar is moving in the presence of a uniform magnetic field...
In this figure, a metal bar is moving in the presence of a uniform magnetic field as shown. Which figure represents the induced charges on the metal bar? Select one: a. b. O +++++ c. +++++++ d. O e.
Consider area in which electric field is directed out of the page and is decreasing in...
Consider area in which electric field is directed out of the page and is decreasing in magnitude. Induced magnetic field in this area is directed: 1. clockwise 2. is zero 3. counterclockwise 4. out of the page 5. into the page
How is the electric field that accompanies a changing magnetic field related to the induced emf...
How is the electric field that accompanies a changing magnetic field related to the induced emf in the region of changing magnetic flux?
Problem 5. (4 points) Electric field induced by a changing magnetic field in a solenoid. long...
Problem 5. (4 points) Electric field induced by a changing magnetic field in a solenoid. long solenoid of radius R = 10 cm has n = 100 turns/cm and carries a time-varying current that varies sinusoidally as I- Imax cos (2rft), where Imax- 10 A is the maximum current and f-60 Hz is the frequency of the alternating current source. What is the maximum magnitude of the induced electric field inside the solenoid, a distance r- 1.3 cm from its...
Which one of the arrows shown represents the direction of the net electric field at the...
Which one of the arrows shown represents the direction of the
net electric field at the center of the sqaure? A,B, C, or D
Which one of the arrows shown represents the direction
of the net electric field at the center of the sqaure? A,B, C, or
D
Three equal positive point charges +q are placed at the comers of a square of side d as shown in the figure. Which one f the arrows shown represents the direction of...
Please explain in detail the application of the RHR and why the electric field vectors are acting...
Please explain in detail the
application of the RHR and why the electric field vectors are
acting at angles.
Problem 8 A uniform, square, conducting loop, 20.0 cm on a side, is placed in a magnetic field, which has an initial magnitude of 0.750 T. The magnetic field is directed into the plane of the diagram and is decreasing at the rate of-0.0350 T/s. The conducting loop has its side ac along a diameter and with point b at the...
In figure, an uniform magnetic field B is limited in the left half of a cylinder...
In figure, an uniform magnetic field B is limited in the left
half of a cylinder with Radius of R,
if the magnetic field increase at a rate of dB/dt, P presents
any point which have radius r from the center.
(1) When r ≤ R, please find the magnitude of induced electric
field field of P
(2) When r>R, please find the magnitude of induced electric
field field of P
Magnetodynamics Problem 1 (Induced Electric Field by Circular Magnetic Field) Consider a uniform magnetic field which points into the page and is confined to a circular region with radius R. Suppose the magnitude of B increases with time, i.e. dB/dt > 0. Find the induced electric field everywhere due to the changing magnetic field.
Magnetodynamics Problem 1 (Induced Electric Field by Circular Magnetic Field) Consider a uniform magnetic field which points into the page and is confined to a circular region with radius R. Suppose the magnitude of B increases with time, i.e. dB/dt > 0. Find the induced electric field everywhere due to the changing magnetic field.
1) Which of Maxwell's equations below predicts an induced magnetic field due to changes in an electric field? A) #Edi = 9 B) B. dA= 0 D$B.ds = Hole + Hope E) All of them 2) In the figure, two parallel wires carry currents of magnitude / as shown. The current is decreasing with time. A rectangular loon is midway between the wires. What is the direction of the net magnetic field in the region between the wires and that...
In this figure, a metal bar is moving in the presence of a uniform magnetic field as shown. Which figure represents the induced charges on the metal bar? Select one: a. b. O +++++ c. +++++++ d. O e.
How is the electric field that accompanies a changing magnetic field related to the induced emf in the region of changing magnetic flux?
Problem 5. (4 points) Electric field induced by a changing magnetic field in a solenoid. long solenoid of radius R = 10 cm has n = 100 turns/cm and carries a time-varying current that varies sinusoidally as I- Imax cos (2rft), where Imax- 10 A is the maximum current and f-60 Hz is the frequency of the alternating current source. What is the maximum magnitude of the induced electric field inside the solenoid, a distance r- 1.3 cm from its...
Which one of the arrows shown represents the direction of the
net electric field at the center of the sqaure? A,B, C, or D
Which one of the arrows shown represents the direction
of the net electric field at the center of the sqaure? A,B, C, or
D
Three equal positive point charges +q are placed at the comers of a square of side d as shown in the figure. Which one f the arrows shown represents the direction of...
Please explain in detail the
application of the RHR and why the electric field vectors are
acting at angles.
Problem 8 A uniform, square, conducting loop, 20.0 cm on a side, is placed in a magnetic field, which has an initial magnitude of 0.750 T. The magnetic field is directed into the plane of the diagram and is decreasing at the rate of-0.0350 T/s. The conducting loop has its side ac along a diameter and with point b at the...
In figure, an uniform magnetic field B is limited in the left
half of a cylinder with Radius of R,
if the magnetic field increase at a rate of dB/dt, P presents
any point which have radius r from the center.
(1) When r ≤ R, please find the magnitude of induced electric
field field of P
(2) When r>R, please find the magnitude of induced electric
field field of P
