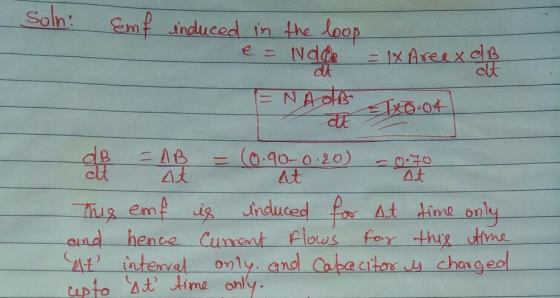

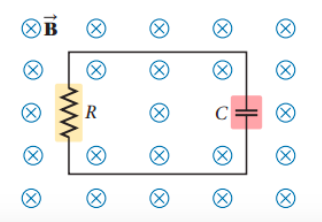

(Figure 1) shows a circuit with an area of 0.040m2 containing a R=1.0Ω resistor and a C=270μF uncharged capacitor. Pointing into the plane of the circuit is a uniform magnetic field of magnitude 0.20T. In 1.0×10−2s the magnetic field strengthens at a constant rate to become 0.90T pointing into the plane.

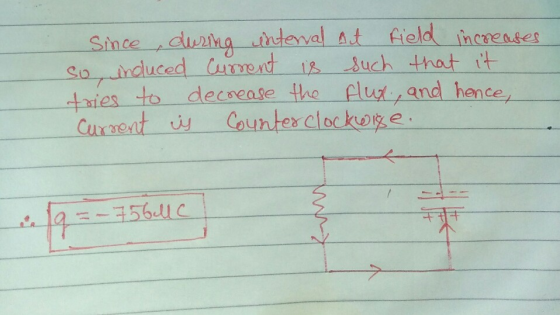

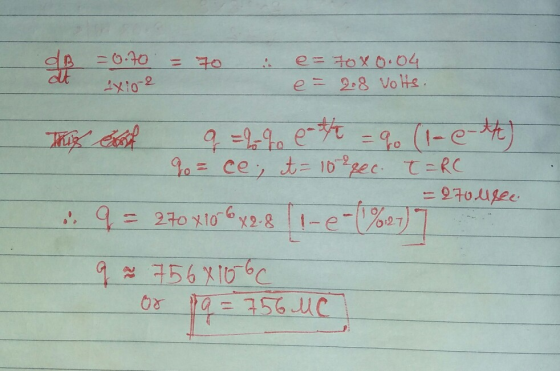

What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram?
Homework Answers
Add Answer to:
(Figure 1) shows a circuit with an area of 0.040m2 containing a
R=1.0Ω resistor and a...
shows a circuit with an area of 0.070 m2m2 containing a R=1.0ΩR=1.0Ω resistor and a C=240μFC=240μF...
shows a circuit with an area of 0.070 m2m2 containing a R=1.0ΩR=1.0Ω resistor and a C=240μFC=240μF uncharged capacitor. Pointing into the plane of the circuit is a uniform magnetic field of magnitude 0.20T0.20T. In 1.0×10−2s1.0×10−2s the magnetic field strengthens at a constant rate to become 0.90T0.90T pointing into the plane. What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram?
(20 points) Figure shows a circuit with an area of 0.060 m2 containing a R-1. resistor and a C 2....
(20 points) Figure shows a circuit with an area of 0.060 m2 containing a R-1. resistor and a C 2.5 x 10-4 F uncharged capacitor. Pointing into the plane of the circuit is a uniform magnetic field of magnitude 0.15 T. In 0.01s the magnetic field strengthens at a constant rate to become 0.80 T pointing into the plane. What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram?
(20 points) Figure shows...
(Figure 1) shows a circuit with an area of 0.060 m2 containing a R=1.0 Ω resistor...
(Figure 1) shows a circuit with an area of 0.060 m2 containing a
R=1.0 Ω resistor and a C=210 μF uncharged capacitor. Pointing into
the plane of the circuit is a uniform magnetic field of magnitude
0.17 T. In 1.0×10^-2 s the magnetic field strengthens at a constant
rate to become 0.70 T pointing into the plane.
What maximum charge (sign and magnitude) accumulates on the
upper plate of the capacitor in the diagram?
Express your answer to two significant...
What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram?
a circuit with an area of 0.040 m2m2 containing a R=1.0ΩR=1.0Ω resistor and a C=220μFC=220μF uncharged capacitor. Pointing into the plane of the circuit is a uniform magnetic field of magnitude 0.16T0.16T. In 1.0×10−2s1.0×10−2s the magnetic field strengthens at a constant rate to become 0.80T0.80T pointing into the plane. What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram?
Part A (Figure 1) shows a circuit with an area of 0.070 m2 containing a R=1.02...
Part A (Figure 1) shows a circuit with an area of 0.070 m2 containing a R=1.02 resistor and a C = 220 uF uncharged capacitor. Pointing into the plane of the circuit is a uniform magnetic field of magnitude 0.10 T. In 1.0 x 10-2 s the magnetic field strengthens at a constant rate to become 0.80 T pointing into the plane. What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram? Express...
The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field...
The figure shows an initially uncharged capacitor connected to a
resistor, in a uniform magnetic field pointing into the page (-z
direction). Choose which changes to the system would cause the top
plate of the capacitor to become positively charged.
1)True False Rotating the circuit 90° counterclockwise around
the y axis.
2) True False Reversing the direction of the magnetic
field.
3) True False Increasing the magnetic field
strength.
4) True False Rotating the circuit clockwise around the
z axis.
5) True False Decreasing...
Answer choices for each problem are True/False The figure shows an initially uncharged capacitor connected to...
Answer choices for each problem are True/False
The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field pointing into the page (-z direction). Choose which changes to the system would cause the top plate of the capacitor to become positively charged. Rotating the circuit 900 counterclockwise around the y axis Decreasing the magnetic field strength Reversing the direction of the magnetic field. Increasing the magnetic field strength Rotating the circuit clockwise around the z...
The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field...
The figure shows an initially uncharged capacitor connected to a
resistor, in a uniform magnetic field pointing into the page (-z
direction). Choose which changes to the system would cause the top
plate of the capacitor to become positively charged.
TrueFalse Rotating the circuit clockwise around the z
axis.
TrueFalse Rotating the magnetic field 90° counterclockwise around
the x axis (so that the field ends up pointing towards +y).
TrueFalse Increasing the magnetic field strength.
TrueFalse Rotating the circuit 90°...
A circuit containing a resistor and capacitor (but no batter) ja an area of 0.0020 m^2...
A circuit containing a resistor and capacitor (but no batter) ja an area of 0.0020 m^2 and it lies flat on a table. The resistor has resistance of 15 Ω and the capacitor a capacitance of 430 µF. The tase is located inside a lab where a strong magnetic field is being produced pointing into the surface of the table. a) If the magnetic feidlstayes the same. will there be a Curren flowing in the circuit? if so, explain in...
To study the behavior of circuit containing a resistor and a charged capacitor when the capacitor...
To study the behavior of circuit containing a resistor and a charged capacitor when the capacitor begins to discharge. A capacitor with capacitance C is initially charged with charge q. At time t = 0, a switch is thrown to close the circuit connecting the capacitor in series with a resistor of resistance R (Figure 1) Part AWhat happens to the charge on the capacitor immediately after the switch is thrown? The electrons on the negative plate of the capacitor are...
(20 points) Figure shows a circuit with an area of 0.060 m2 containing a R-1. resistor and a C 2.5 x 10-4 F uncharged capacitor. Pointing into the plane of the circuit is a uniform magnetic field of magnitude 0.15 T. In 0.01s the magnetic field strengthens at a constant rate to become 0.80 T pointing into the plane. What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram?
(20 points) Figure shows...
(Figure 1) shows a circuit with an area of 0.060 m2 containing a
R=1.0 Ω resistor and a C=210 μF uncharged capacitor. Pointing into
the plane of the circuit is a uniform magnetic field of magnitude
0.17 T. In 1.0×10^-2 s the magnetic field strengthens at a constant
rate to become 0.70 T pointing into the plane.
What maximum charge (sign and magnitude) accumulates on the
upper plate of the capacitor in the diagram?
Express your answer to two significant...
Part A (Figure 1) shows a circuit with an area of 0.070 m2 containing a R=1.02 resistor and a C = 220 uF uncharged capacitor. Pointing into the plane of the circuit is a uniform magnetic field of magnitude 0.10 T. In 1.0 x 10-2 s the magnetic field strengthens at a constant rate to become 0.80 T pointing into the plane. What maximum charge (sign and magnitude) accumulates on the upper plate of the capacitor in the diagram? Express...
The figure shows an initially uncharged capacitor connected to a
resistor, in a uniform magnetic field pointing into the page (-z
direction). Choose which changes to the system would cause the top
plate of the capacitor to become positively charged.
1)True False Rotating the circuit 90° counterclockwise around
the y axis.
2) True False Reversing the direction of the magnetic
field.
3) True False Increasing the magnetic field
strength.
4) True False Rotating the circuit clockwise around the
z axis.
5) True False Decreasing...
Answer choices for each problem are True/False
The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field pointing into the page (-z direction). Choose which changes to the system would cause the top plate of the capacitor to become positively charged. Rotating the circuit 900 counterclockwise around the y axis Decreasing the magnetic field strength Reversing the direction of the magnetic field. Increasing the magnetic field strength Rotating the circuit clockwise around the z...
The figure shows an initially uncharged capacitor connected to a
resistor, in a uniform magnetic field pointing into the page (-z
direction). Choose which changes to the system would cause the top
plate of the capacitor to become positively charged.
TrueFalse Rotating the circuit clockwise around the z
axis.
TrueFalse Rotating the magnetic field 90° counterclockwise around
the x axis (so that the field ends up pointing towards +y).
TrueFalse Increasing the magnetic field strength.
TrueFalse Rotating the circuit 90°...
